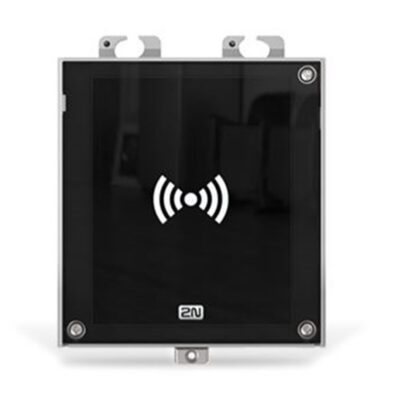

ACCESS UNIT 2.0 RFID – 125KHZ 13.56MHZ NFC

$908.60

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $227.15

ACCESS UNIT 2.0 RFID – 125KHZ  13.56MHZ NFC

Choose mount

2N® IP Verso - Flush Installation Frame - Silver

2N® IP Verso - Flush Installation Frame - Silver

Frame for installation in the wall, 1 module for 2N® IP Verso.

2N® IP Verso - Flush Installation Frame - Black

Frame for installation in the wall, 1 module for 2N® IP Verso.

2N® IP Verso - 1 Module Surface Installation Frame - Silver

2N® IP Verso - 1 Module Surface Installation Frame - Silver

Frame for surface installation, 1 module for 2N® IP Verso.
2N® IP Verso - 1 Module Surface Installation Frame - Black

2N® IP Verso - 1 Module Surface Installation Frame - Black

Frame for surface installation, 1 module for 2N® IP Verso.
2N® IP Verso - Flush Mount Box - 1 Module

2N® IP Verso - Flush Mount Box - 1 Module

Flush Mount Box for installation in the wall, 1 module for 2N® IP Verso.

Requires Flush Installation Frame (9155011 or 9155011B)

Add to wishlist

SKU: AX9160344 Category:
Free Shipping for orders over $600 (AU Only)*
Brand: , ,

Description

Network connected RFID and NFC reader with built in controller.

Available in standard and secured models.  (Read NFC using 2N Mobile Key)

Reads Mifare and 125KHz cards saving having to replace cards / fobs.  Just add the card the user already has to provide access.

Register for Member Pricing

These require a mount so please choose a suitable mount for your project.

Technical Parameters

Interfaces
Power supply:PoE and/or 12 V/1 A DC
PoE:802.3af (Class 0–12.95 W)
LAN:10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
Recommended cabling:Cat-5e or better
Active switch output:8 to 12 V DC/max 600 mA
Passive switch:NO/NC contacts, up to 30 V/1 A AC/DC
Inputs:2 inputs – in passive/active mode (-30 V to +30 V DC)
OFF = open or Uin> 1.5 V
ON = short-circuit or Uin< 1.5 V
Tamper switch:native part of the 2N Access Unit 2.0
Audio:buzzer (97dBA)
Supported protocols:DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
RFID Card Reader
Supported frequencies:125 kHz and 13.56 MHz variant
Supported card types:card type compatibility depends on Order No.
125 kHz:EM4xxx
HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz:ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key)

Technical Documents

Download documents from the following links:

access-unit-2.0_datasheet_a4_en
