Shop » Products » Access Control » 2N Access Control » ACCESS UNIT 2.0 RFID. KEYPAD BLUETOOTH RFID 125KHZ 13.56MHZ NFC PICARD
ACCESS UNIT 2.0 RFID. KEYPAD BLUETOOTH RFID 125KHZ 13.56MHZ NFC PICARD

ACCESS UNIT 2.0 RFID. KEYPAD BLUETOOTH RFID 125KHZ 13.56MHZ NFC PICARD

$1,576.30

Register for Member Pricing

4 Interest Free Payments of $394.08

ACCESS UNIT 2.0 RFID. KEYPAD BLUETOOTH RFID 125KHZ 13.56MHZ NFC PICARD

Choose the mount

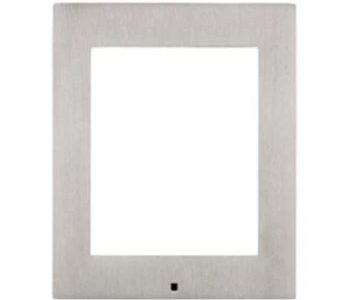

2N® IP Verso - 1 Module Surface Installation Frame - Silver

2N® IP Verso - 1 Module Surface Installation Frame - Silver

Frame for surface installation, 1 module for 2N® IP Verso.

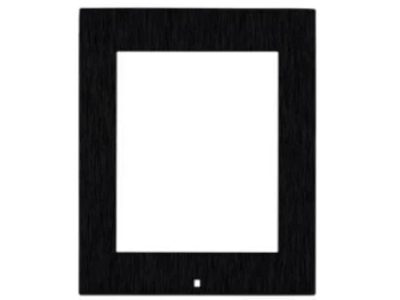

2N® IP Verso - 1 Module Surface Installation Frame - Black

2N® IP Verso - 1 Module Surface Installation Frame - Black

Frame for surface installation, 1 module for 2N® IP Verso.

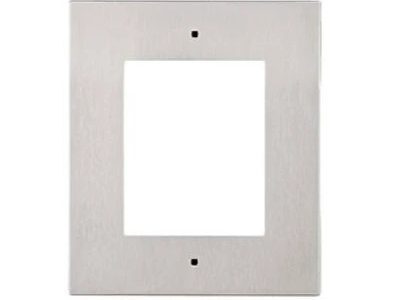

2N® IP Verso - Flush Installation Frame - Silver

2N® IP Verso - Flush Installation Frame - Silver

Frame for installation in the wall, 1 module for 2N® IP Verso.

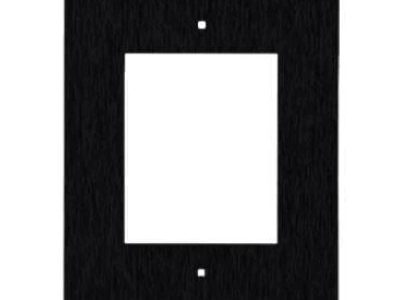

2N® IP Verso - Flush Installation Frame - Black

Frame for installation in the wall, 1 module for 2N® IP Verso.

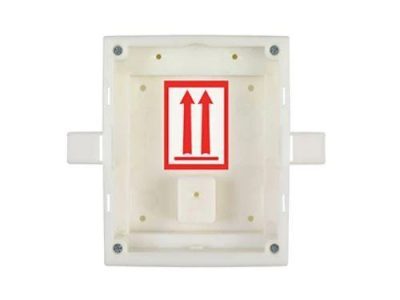

2N® IP Verso - Flush Mount Box - 1 Module

2N® IP Verso - Flush Mount Box - 1 Module

Flush Mount Box for installation in the wall, 1 module for 2N® IP Verso.

Requires Flush Installation Frame (9155011 or 9155011B)

SKU: AX9160347 Category:
Free Shipping for orders over $600 (AU Only)*
Brand: , ,

Description

AX9160347
2N Access Unit 2.0
Touch Keypad Bluetooth & RFID

Do you need a good-looking access reader for your project All the residents of luxury residences will be delighted with the 2N Access Unit 2.0. Select modern access with
a mobile phone or fingerprint. Do you prefer conventional methods We also offer an RFID card reader or keypad. Cannot decide Select a combination of several methods
in one device. But don’t look for controllers in our portfolio. They are already an integral part of every reader.

Choose flush or surface mount options for 2N Access Control units.  You require a mount to use these.

Register for Member Pricing

Features

  • Ideal for residential projects
  • Flexibility for users
  • Quick installation and remote administration
  • You don’t need a controller
  • Flush mount or installation on glass
  • Timeless solution

Technical Parameters

Power supply
TypePoE and/or 12 V/1 A DC
PoE802.3af (Class 0–12.95 W)
Interfaces
LAN10/100BASE-TX with Auto-MDIX, RJ-45 jack
Recommended cablingCat-5e or better
Active switch output8 to 12 V DC/max 600 mA
Passive switchNO/NC contacts, up to 30 V/1 A AC/DC
Inputs2 inputs – in passive/active mode (-30 V to +30 V DC)
OFF = open or Uin> 1.5 V
ON = short-circuit or Uin< 1.5 V
Tamper switchnative part of the 2N Access Unit 2.0
Audiobuzzer (97dBA)
Supported protocolsDHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
Bluetooth Reader
Versioncompatible with Bluetooth 5.0 (BLE)
Range(short – typically up to 3m*, long – typically up to 10m*)
*distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
SecurityRSA-1024 and AES-128 encryption
RX sensitivityup to -93 dBm
Modetouch, tap in app, card
Mobile Application Support
Android 6.0 and higher, iOS 12.0 and higher
RFID Card Reader
Supported frequencies125 kHz variant
13.56 MHz variant
125 kHz and 13.56 MHz variant
Supported card typescard type compatibility depends on Order No.
125 kHzEM4xxx
HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHzISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key)
Touch Keypad
Technologycapacitive touch layer (sensitivity 0,1 pF)
Reliabilityregular automatic calibration (SmartSence Auto-tunning)
does not detect false touches on wet surface
Signallingconfigurable backlight intensity
indication using multicoloured LEDs
acoustic response for every keypad touch
Mechanical Properties
Framerobust zinc cast frame with surface finish (nickel and black color)
Operating temperature-40°C to +60°C
Storage temperature-40°C to +70°C
Operating relative humidity10%-95% (non-condensing)
DimensionsWall (surface) mounting frame:
– 1 module: 107 (W) x 130 (H) x 28 (D) mm
Flush mounting frame:
– 1 module: 130 (W) x 153 (H) x 5 (D) mm
Flush mounting box (minimum hole):
– 1 module: 108 (W) x 131 (H) x 45 (D) mm
Weightmax 0.8 kg
Cover ratingIP54 and IK08
Extension Modules
2N Access Unit 2.0 supports modules from the 2N® IP Verso intercom: RFID, Bluetooth and fingerprint readers, keypad, I/O module, Wiegand, etc.

Download documents from the following links:

access-unit-2.0_datasheet_a4_en
