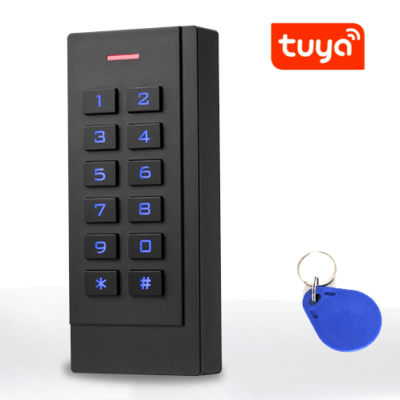

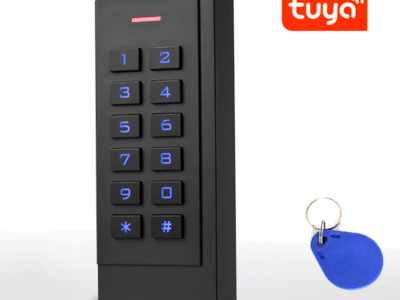

This elegant indoor unit is a single door multifunction standalone access controller with Wiegand output, keypad, 125KHz EM card reader, and Tuya Wi-Fi access. Ideal for residential properties or business where a stylish and practical access control system for indoor use is required.
Tuya App allows remote access to the keypad for management, control, and monitoring. Add, modify, and delete users, set temporary single use pin codes, add cards and fingerprints, limit access times, and view log. Requires connection to Wi-Fi with access to the internet for Tuya App function.
It is suitable for mounting either indoor or under cover and is not suitable for out in the weather.
This unit supports up to 10000 users in either a Card, 4 digit PIN, or a Card + PIN option, or 6 digit pin via Tuya App or temporary (single use) pin via Tuya App.
Using the Tuya App you can set temporary access pin codes that expire in 6 hours for single visits or start and end date / time for multiple visits. The code is shared via email or SMS and the visitor enters the code on arrival to open the door / gate. The use of the code is logged in real time so the administrator can see the code has been used.
The Tuya App works from anywhere as long as the keypad is connected to a Wi-Fi source which has internet access. Note that the Wi-Fi module in the access control unit is low power for security purposes and the realistic distance from the Wi-Fi router is no greater than 8 meters. This has improved with this latest version.
The inbuilt card reader supports 125KHz EM cards.

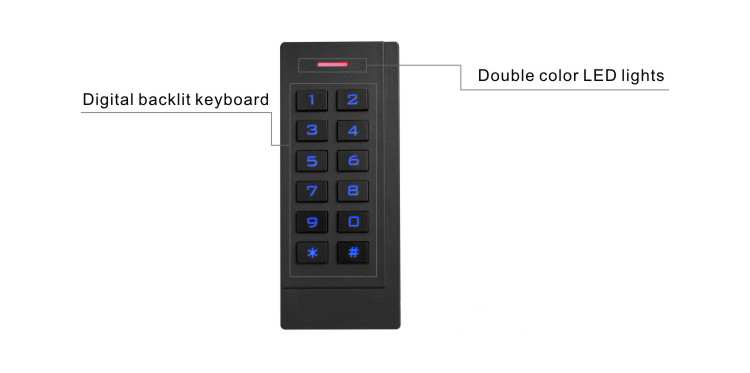

The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.
These features make the unit an ideal choice for door access within a building.

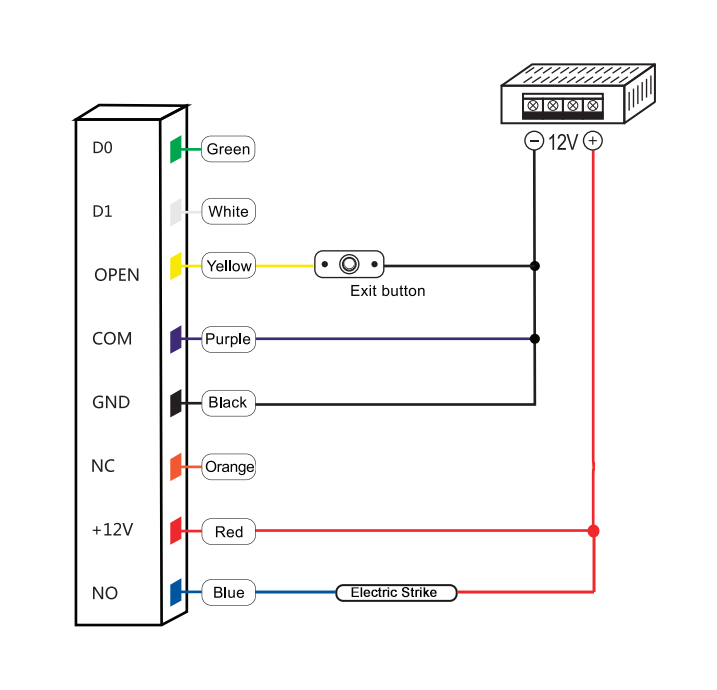

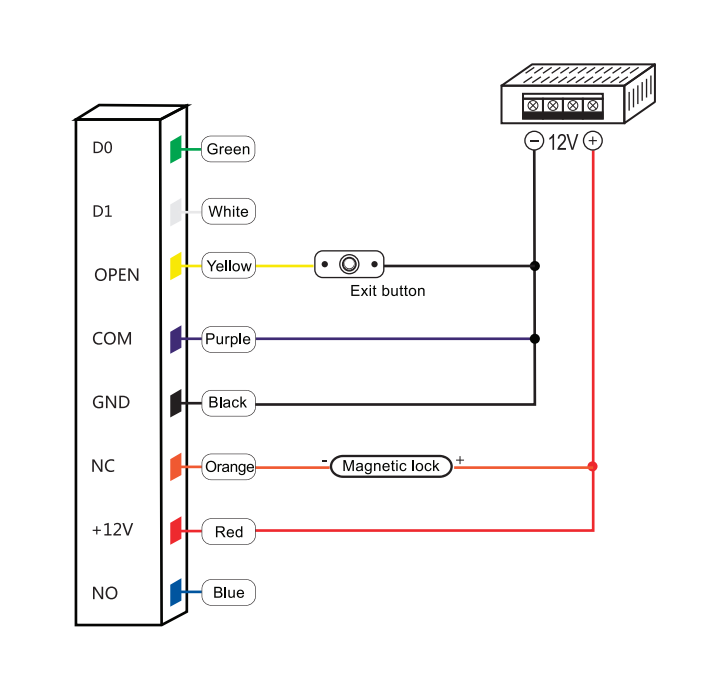

These units require 12VDC or 24VDC and can share the power with the electric strike.
Standalone Indoor Wi-Fi Keypad / RFID Access Control
$163.90Original price was: $163.90.$105.09Current price is: $105.09.In stock (can be backordered)
Description
This elegant indoor unit is a single door multifunction standalone access controller with Wiegand output, keypad, 125KHz EM card reader, and Tuya Wi-Fi access. Ideal for residential properties or business where a stylish and practical access control system for indoor use is required.
Tuya App allows remote access to the keypad for management, control, and monitoring. Add, modify, and delete users, set temporary single use pin codes, add cards and fingerprints, limit access times, and view log. Requires connection to Wi-Fi with access to the internet for Tuya App function.
It is suitable for mounting either indoor or under cover and is not suitable for out in the weather.
This unit supports up to 10000 users in either a Card, 4 digit PIN, or a Card + PIN option, or 6 digit pin via Tuya App or temporary (single use) pin via Tuya App.
Using the Tuya App you can set temporary access pin codes that expire in 6 hours for single visits or start and end date / time for multiple visits. The code is shared via email or SMS and the visitor enters the code on arrival to open the door / gate. The use of the code is logged in real time so the administrator can see the code has been used.
The Tuya App works from anywhere as long as the keypad is connected to a Wi-Fi source which has internet access. Note that the Wi-Fi module in the access control unit is low power for security purposes and the realistic distance from the Wi-Fi router is no greater than 8 meters. This has improved with this latest version.
The inbuilt card reader supports 125KHz EM cards.
The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.
These features make the unit an ideal choice for door access within a building.
These units require 12VDC or 24VDC and can share the power with the electric strike.
Features:
Specifications
Ask a Question
Please ask questions you may have about this product or your project in the form below
Technical Documents
Download documents from the following links:
K35 EM Indoor Keypad Manual
*note: To register with Wi-Fi enter Wi-Fi matching mode under Device Management in the manual.
