This elegant and vandal resistant unit is a single door / gate multifunction standalone access controller with Wiegand output, touch keypad, 125KHz EM card reader, fingerprint reader, LCD screen with menu, voice prompts, and Tuya Wi-Fi access. Ideal for residential properties or business where a stylish vandal resistant all weather access control system is required.
Tuya App allows remote access to the keypad for management, control, and monitoring. Add, modify, and delete users, set temporary single use pin codes, add cards and fingerprints, limit access times, and view log. Requires connection to Wi-Fi with access to the internet for Tuya App function.
It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof case.
The electronics are fully potted so the unit is waterproof and conforms to IP68.
This unit supports up to 10000 users in either a Card, 4 digit PIN, or a Card + PIN option, and 200 fingerprint users, or 6 digit pin via Tuya App or temporary (single use) pin via Tuya App.
Using the Tuya App you can set temporary access pin codes that expire in 6 hours for single visits or start and end date / time for multiple visits. The code is shared via email or SMS and the visitor enters the code on arrival to open the door / gate. The use of the code is logged in real time so the administrator can see the code has been used.
The Tuya App works from anywhere as long as the keypad is connected to a Wi-Fi source which has internet access. Note that the Wi-Fi module in the access control unit is low power for security purposes and the realistic distance from the Wi-Fi router is no greater than 8 meters. This has improved with this latest version.
The inbuilt card reader supports 125KHz EM cards.

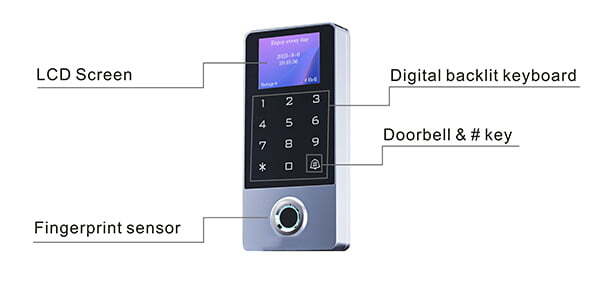

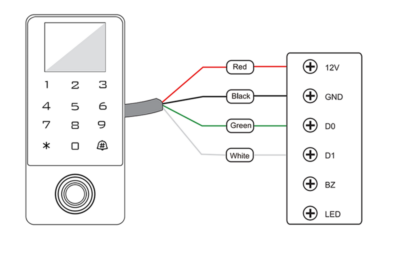

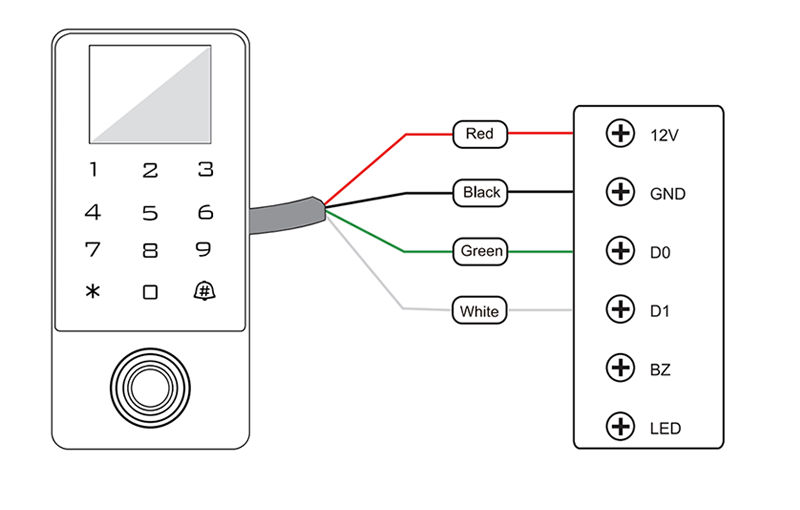

The unit has many extra features including lock output current short circuit protection, Wiegand output , LCD screen for programming, and a backlit keypad.
These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and high security applications. Other uses include temporary access for business or home, Air BNB access control, remote rental property access and many more.
These units require 12VDC or 24VDC and can share the power with the electric strike.
Please note that the Tuya App is for remote management of pin codes and remote unlocking and does not act as a doorbell. To add local doorbell you will need the doorbell module accessory.

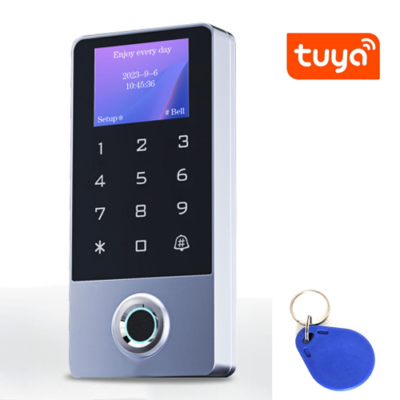

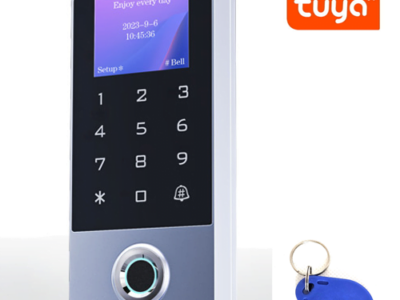

Standalone Touch IP68 Keypad, 125KHz RFID, Fingerprint, LCD, Voice and WiFi (Tuya)
$242.00Original price was: $242.00.$154.88Current price is: $154.88.In stock (can be backordered)
Description
This elegant and vandal resistant unit is a single door / gate multifunction standalone access controller with Wiegand output, touch keypad, 125KHz EM card reader, fingerprint reader, LCD screen with menu, voice prompts, and Tuya Wi-Fi access. Ideal for residential properties or business where a stylish vandal resistant all weather access control system is required.
Tuya App allows remote access to the keypad for management, control, and monitoring. Add, modify, and delete users, set temporary single use pin codes, add cards and fingerprints, limit access times, and view log. Requires connection to Wi-Fi with access to the internet for Tuya App function.
It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof case.
The electronics are fully potted so the unit is waterproof and conforms to IP68.
This unit supports up to 10000 users in either a Card, 4 digit PIN, or a Card + PIN option, and 200 fingerprint users, or 6 digit pin via Tuya App or temporary (single use) pin via Tuya App.
Using the Tuya App you can set temporary access pin codes that expire in 6 hours for single visits or start and end date / time for multiple visits. The code is shared via email or SMS and the visitor enters the code on arrival to open the door / gate. The use of the code is logged in real time so the administrator can see the code has been used.
The Tuya App works from anywhere as long as the keypad is connected to a Wi-Fi source which has internet access. Note that the Wi-Fi module in the access control unit is low power for security purposes and the realistic distance from the Wi-Fi router is no greater than 8 meters. This has improved with this latest version.
The inbuilt card reader supports 125KHz EM cards.

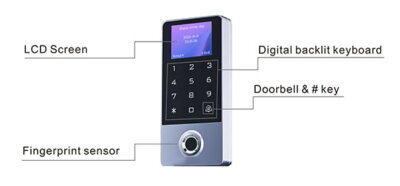

The unit has many extra features including lock output current short circuit protection, Wiegand output , LCD screen for programming, and a backlit keypad.
These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and high security applications. Other uses include temporary access for business or home, Air BNB access control, remote rental property access and many more.
These units require 12VDC or 24VDC and can share the power with the electric strike.
Please note that the Tuya App is for remote management of pin codes and remote unlocking and does not act as a doorbell. To add local doorbell you will need the doorbell module accessory.
Features:
Specifications
Ask a Question
Please ask questions you may have about this product or your project in the form below
Technical Documents
Download documents from the following links:
TF1 LCD EM WiFi Manual
*note: To register with Wi-Fi enter Wi-Fi matching mode in the system settings through the LCD setup screen. This will put the device into discovery mode for the Tuya App.
