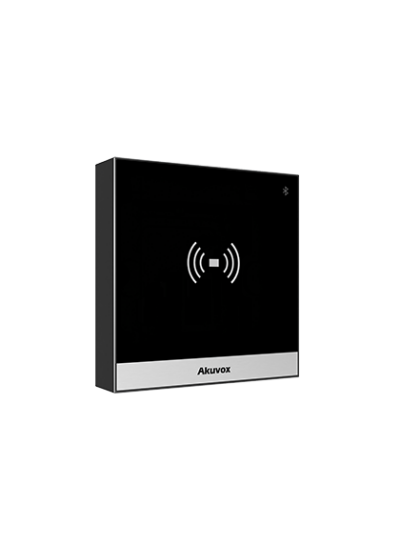

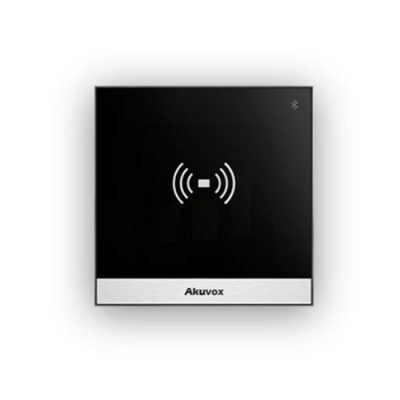

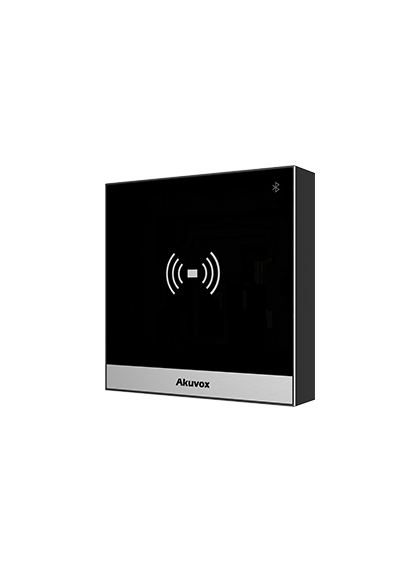

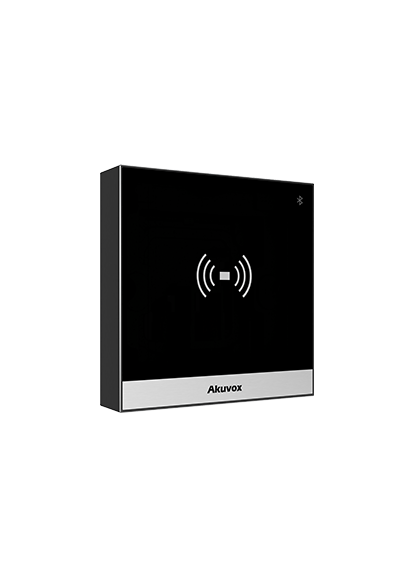

Akuvox AO3 – Smart Access Control (includes mount)

Login, Register, or Call for Price

A03 is a commercial-grade access control terminal, which offers fast, safe and convenient access control via Bluetooth, and 13.56MHz or 125kHz card reader. It is typically used in commercial and residential applications.

This model is not held in stock and will be imported from the manufacturer for projects

SKU: A03 Categories: Akuvox Access Control, VoIP (SIP) based, Akuvox, Akuvox Apartment, Access Control Tags: 4G capable, Access Control, Akuvox, Akuvox access control, facilities access control, IP65, NFC, poe, RFID

Free Shipping for orders over $600 (AU Only)*

Brand: Akuvox

Description

Perfect choice for Access Control.

This model is not held in stock and will be imported from the manufacturer for projects

Akuvox’s A03 is a safe and convenient commercial-grade device for access control. It offers you a Bluetooth feature that enables you to open door via credential on your smartphone. And it can be easily connected to a POE using an Ethernet cable for data transmission. A03 provides you with greater security and flexibility than those traditional access control systems.

Incorporate into Akuvox SmartPlus for Cloud management of access control.

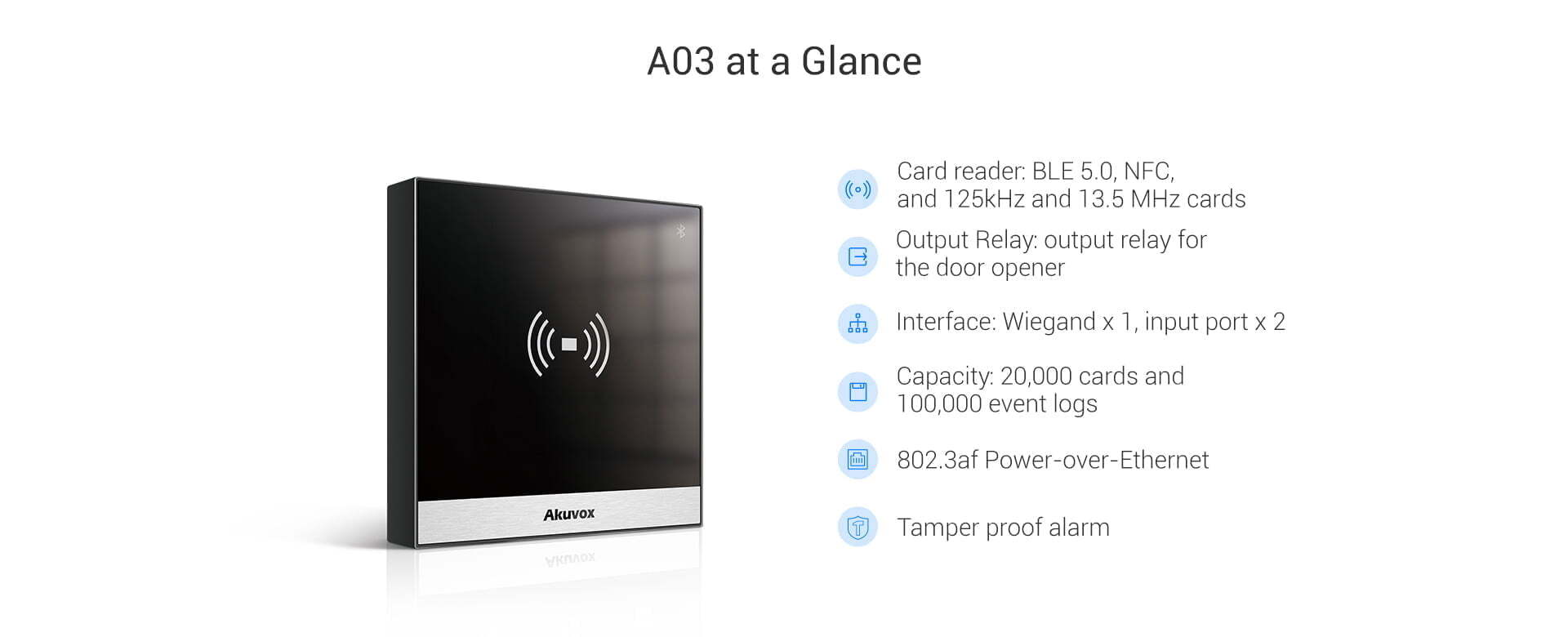

At a Glance

Stylish appearance design;
20,000 card capacity & 100,000 Event Log;
Multi-frequency RFID card reader;
Support NFC;
Compatible with Akuvox cloud;
Configuration via web browser;
Management access authority via ACMS(Access Control Management System)

Specifications

Physical & Power

Frontpanel

Toughened Glass

Frame

Aluminum Alloy

RFID card reader

13.56MHz, 125kHz

Bluetooth

BLE 5.0

Relays

2 in / 1 out

Power

802.3af PoE or 12VDC

Power Out

12VDC 600mA

Wiegand

Yes

Water-proof & Dust-proof

IP65

Installation

Flush or Wall Mounted

Dimension

86 x 86 x 33mm

Ethernet Port

RJ45, 10/100Mbps adaptive

Capacity

Face Capacity

20,000

Card Capacity

20,000

Event Log

100,000

Download the Technical Documents from the links below.
