Shop » Products » Access Control » Neptune Access Control » IP65 Exit Button – Green

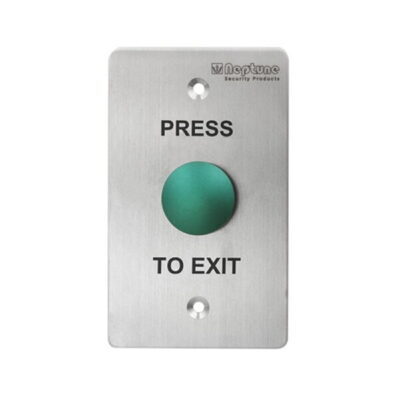

IP65 Exit Button - Green
Sale!

IP65 Exit Button – Green

Original price was: 47.30.Current price is: 37.60.

Register for Member Pricing

4 Interest Free Payments of 9.40

IP65 Exit Button with Green Mushroom button

Surface mount box

ANSI Size Mounting Box

ANSI Size Mounting Box

Surface mount box for Neptune ANSI exit buttons

SKU: NEPAWNCSMG Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Neptune “Press to Exit” green mushroom button.
Contact rating:3A/125-250VAC.
Power: 12VDC.
Mushroom diameter: 28 mm.
Output contact:NO/NC/COM.
Mechanical life: 100,000 tested.
Panel: 1.7 mm thick 304 stainless steel.
Operatingtemp: -20°C~+55°C.
Operating humidity: 0-95%(relativehumidity).
Surface mount: Optional NEASMB metal backbox.
Installation Diameter: 22 mm.
Fixing centres: 83 mm.
Dimensions: 115 (L) x 70 (W) x 40 mm (D).
Weight:0.125kg.
IP rating: IP65.

Download documents from the following links:

NEPTUNE_switch_NEPAWNCSMG_LR_Edit V3
