Description
The ACKPWB6K is a dual relay access control keypad supporting up to 2000 users with EM 125KHz and HID card reader.
It is suitable for mounting either indoor or outdoor in harsh environments.
The B6K series adopts the latest ARM as inner core with 32bit CPU, powerful functions, and is stable and reliable.
Different working modes can be set as per customers needs, including reader mode, single door controller, interlock mode and demo mode.
The strong zinc alloy electroplated case makes this vandal resistant IP68 rated unit ready to be fitted in any domestic or commercial location.
- 20,000 Users.
- 21 Admin card capacity.
- Can be used as a Wiegand reader.
- Set Facility code (0-255).
- Dual relay.
- Standalone operation or 26 – 37 bit Wiegand output.
- 4-6 digits PIN length.
- Built-in EM & HID 125 KHz RFID reader.
- Tricolour LED display for programming and operation.
- Strong zinc alloy electroplated anti-vandal case.
- Supports card and/or password operation.
- 10-28Vdc, 10-28Vac power input.
- Backlit keypad.
- Built-in buzzer.
- Fully programmable via the keypad.
- Water proof IP68 rated.
- Dimensions 128 (L) x 82 (W) x 28 mm (H).
- Lock output load Max 1A.
- Active current draw ?100mA (when input is DC12V).
- Idle current draw ?35mA (when input is DC12V).
Note: Requires external power supply
Ask a Question
Please ask questions you may have about this product or your project in the form below
Technical Documents
Download documents from the following links:

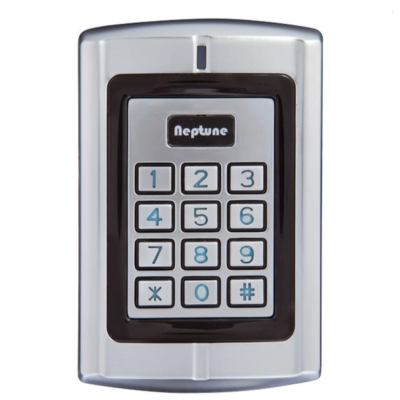

Neptune Keypad (3 x 4) EM/HID Stand Alone IP68 , Wiegand Out
$214.56Original price was: $214.56.$208.71Current price is: $208.71.Available on back-order
Description
It is suitable for mounting either indoor or outdoor in harsh environments.
The B6K series adopts the latest ARM as inner core with 32bit CPU, powerful functions, and is stable and reliable.
Different working modes can be set as per customers needs, including reader mode, single door controller, interlock mode and demo mode.
The strong zinc alloy electroplated case makes this vandal resistant IP68 rated unit ready to be fitted in any domestic or commercial location.
Note: Requires external power supply
Ask a Question
Please ask questions you may have about this product or your project in the form below
Technical Documents
Download documents from the following links:
