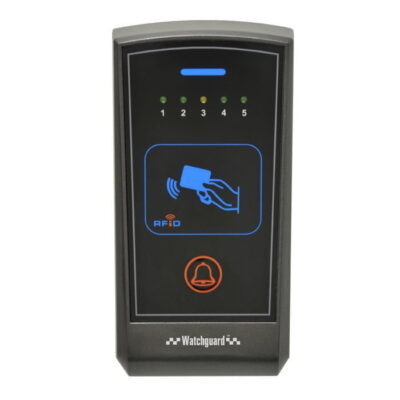

Standalone IP55 Access Control Reader

Description

The ACRDR100 is a weather resistant, ABS plastic, self-contained access control reader designed to directly drive electric door locks. It is capable of accommodating up to 500 user RFID cards/keyfobs and is compatible with both fail-safe and fail-secure locks. The door lock striking timer is programmable for access customisation. A built-in door chime relay contact is available to operate an external low power door chime. The reader uses a solid-state switch instead of a mechanical relay contact for door lock strikes to improve service life. It also features a tamper switch and unauthorised access lock for vandal protection.

The ACRDR100 has a built-in Data I/O bus, enabling up to 3 additional ACRDR100s to be used in a multi-station access control configuration. The reader comes standard with 2 RFID cards and is also compatible with the entire range of proximity keys and cards.
