Shop » Products » HDCVI CCTV » HDCVI Surveillance Cameras » Bullet » Professional Series 5.0MP WDR Motorised HDCVI Bullet

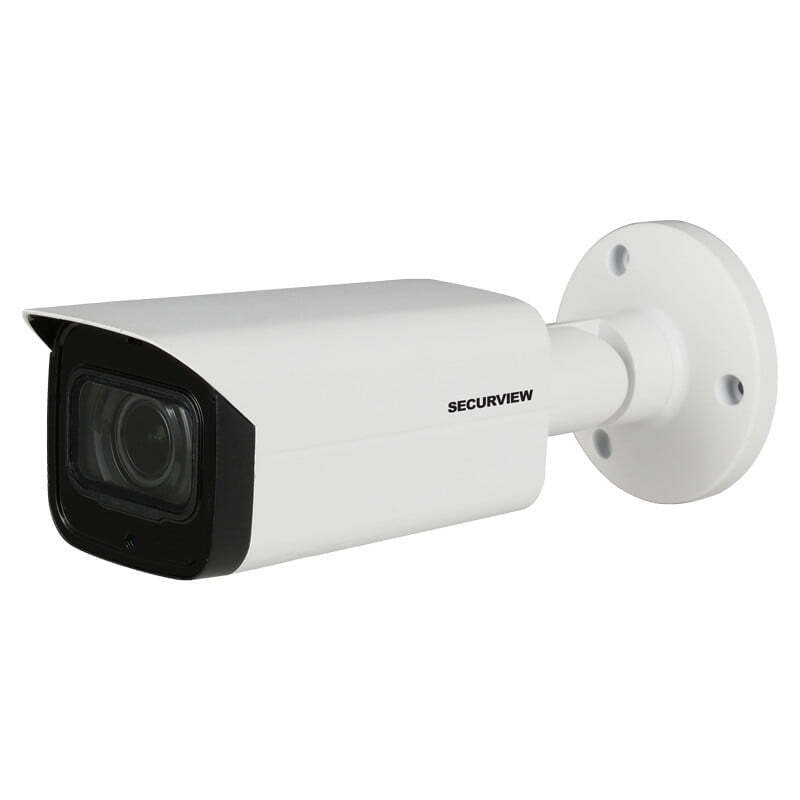

Professional Series 8.0MP WDR Motorised HDCVI Bullet - VSCVI-8BIRMG

Sale!

Professional Series 5.0MP WDR Motorised HDCVI Bullet

Name: Professional Series 5.0MP WDR Motorised HDCVI Bullet
Brand: Securview Victory Series
SKU: VSCVI-5BIRMG2
Price: 165.16 AUD
Availability: InStock

Original price was: $229.00.Current price is: $181.68.

(Guest - Inc. GST)

4 Interest Free Payments of $45.42

SKU: VSCVI-5BIRMG2 Category: Bullet

Free Shipping for orders over $600 (AU Only)*

Brand: Securview Victory Series

Description

With superior 80m infrared illumination, more than double Full HD resolution and ultra low light colour, the VSCVI-5BIRMG2 captures clear footage at all hours, featuring a motorized varifocal lens for easy remote image adjustment.

Camera features:
• Stream up to 5.0MP (2880 x 1620) at 25fps
• Motorized varifocal 2.7~13.5mm lens with motorized iris
• Large 1/2.7” sensor for excellent low light performance
• Smart infrared illumination, up to 80m range
• HDCVI / AHD / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches

Specifications

General

Image Sensor

1/2.7” 5.0 Megapixel CMOS

Max. Resolution

5.0 Megapixel

Effective Pixels

2880 (H) x 1620 (V)

Signal Noise Ratio

> 65dB

Camera

Lens

2.7mm ~ 13.5mm F1.6 Motorised Lens, Fixed Iris

Lens Type

Motorised Varifocal

Angle of View

113° (wide) ~ 31° (tele)

Focus

Fixed / 0.8m Min. Focus Distance

Minimum Illumination

0.001 Lux at F1.6 (Colour) / 0 Lux IR Active

Electronic Shutter

1/3 ~ 1/100,000s

Day/Night

Auto (ICR) / Colour / B&W

Infrared Range

80m

White Balance

Auto / Manual

Noise Reduction

Gain Control

Auto

Lighting Compensation

BLC / HLC / WDR (120dB) / HLC-Pro

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

64m (wide) / 210m (tele)

Observe (63px/m)

25.6m (wide) / 84m (tele)

Recognise (125px/m)

12.8m (wide) / 42m (tele)

Identify (250px/m)

6.4m (wide) / 21m (tele)

Video

Resolution

5.0MP (2880 x 1620) to CIF (352 x 288)

Frame Rate

25fps (5.0MP and lower)

Transmission Distance

Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface

Audio Input

Built-in Microphone / 1 Input

Alarm Interface

N/A

Video Output

1 x HDCVI / AHD / TVI / Composite video output

Modes Supported

HDCVI, AHD, HDTVI & Composite

Mode Switching

DIP Switches

Synchronisation

Internal

OSD Menu

Support

Environmental

Ingress Protection

IP67

Vandal Resistant

N/A

Series

Professional Series

Housing

Aluminium

Camera Type

Bullet

Tri-Axis Mounting

Power Input

12VDC / 24VAC

Power Consumption

< 12.5W

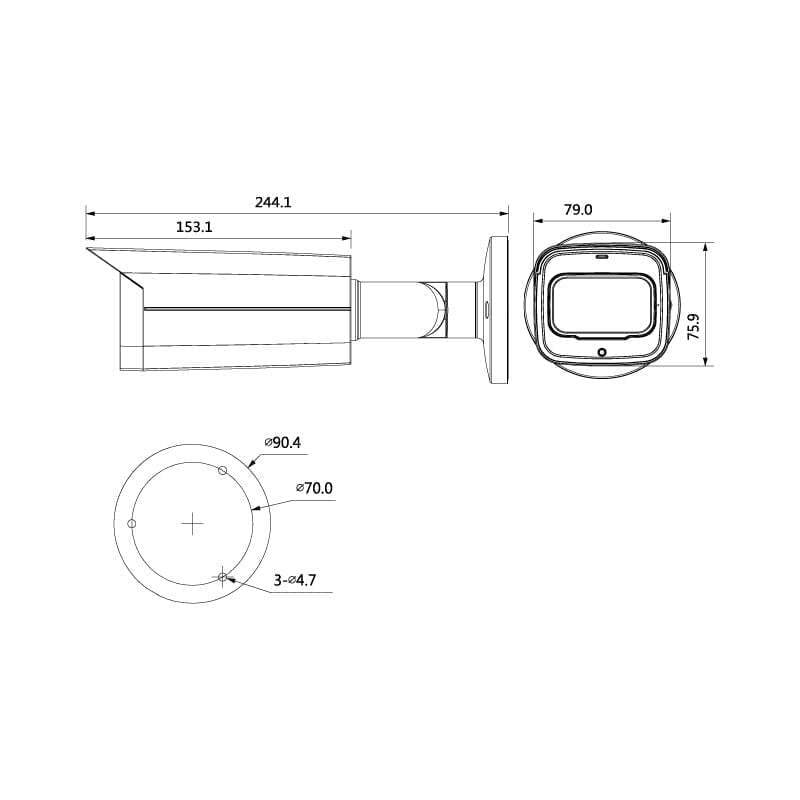

Dimensions

244.1mm x 90.4mm x 90.4mm

Weight

0.79kg

Operating Environment

-30° to 60°C / RH95% (max)

Warranty (Years)

Documents

Download documents from the following links:

VSCVI-2BIRMG & VSCVI-5BIRMG Data Sheet.pdf
