With high resolution image quality up to 1080p and a compact, weather resistant aluminium body, the
VSCVI-2DIRMD captures excellent video footage, ultra-low light performance, long range infrared, and zero image distortion with its flat lens cover.
Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 108° ~ 30° horizontal viewing angles
• Superb colour image performance in low light at 0.001lx
• Smart infrared illumination, up to 60m range
• CVI / TVI / AHD / CVBS / Composite switchable via DIP switch
• True WDR (130dB) and 2D/3D noise reduction
• Audio signal transmission over coaxial cable
• IP67 rated weather resistant metal housing
• Dual power input 12VDC/24VAC
• Switch modes via DIP switches
Specifications
General
Image Sensor
2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) × 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.7mm ~ 13.5mm F1.3 Motorised Lens, fixed iris
Lens Type
Motorised Varifocal
Angle of View
108° ~ 30° (H) / 56° ~ 17° (W)
Focus
Fixed / 0.8m Min. Focus Distance
Minimum Illumination
0.001 Lux at F1.5 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25s ~ 1/100,000 s
Day/Night
Auto (ICR) / Color / B&W
Infrared Range
60m
White Balance
Auto
Noise Reduction
3D
Gain Control
Auto / Manual
Lighting Compensation
BLC / HLC / WDR (130dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
44m
Observe (63px/m)
18m
Recognise (125px/m)
9m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to 960H (960 × 576/960 × 480)
Frame Rate
25fps (1080p and lower)
Transmission Distance
–
Interface
Audio Input
1 channel in & Built-in Mic
Alarm Interface
N/A
Video Output
1 x CVI / TVI / AHD / CVBS by one BNC port (DIP Switch)

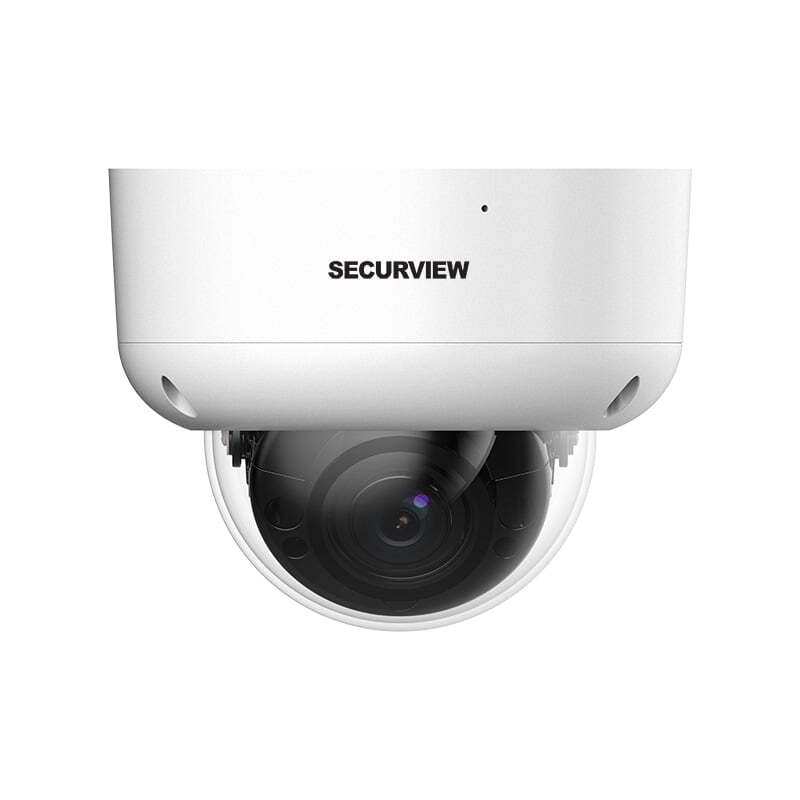

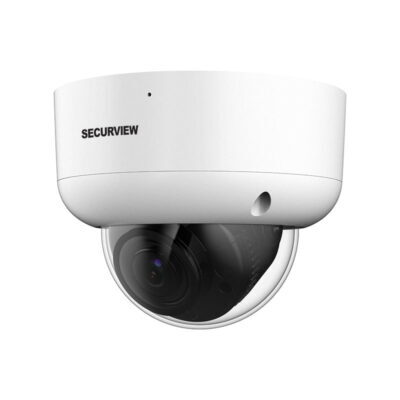

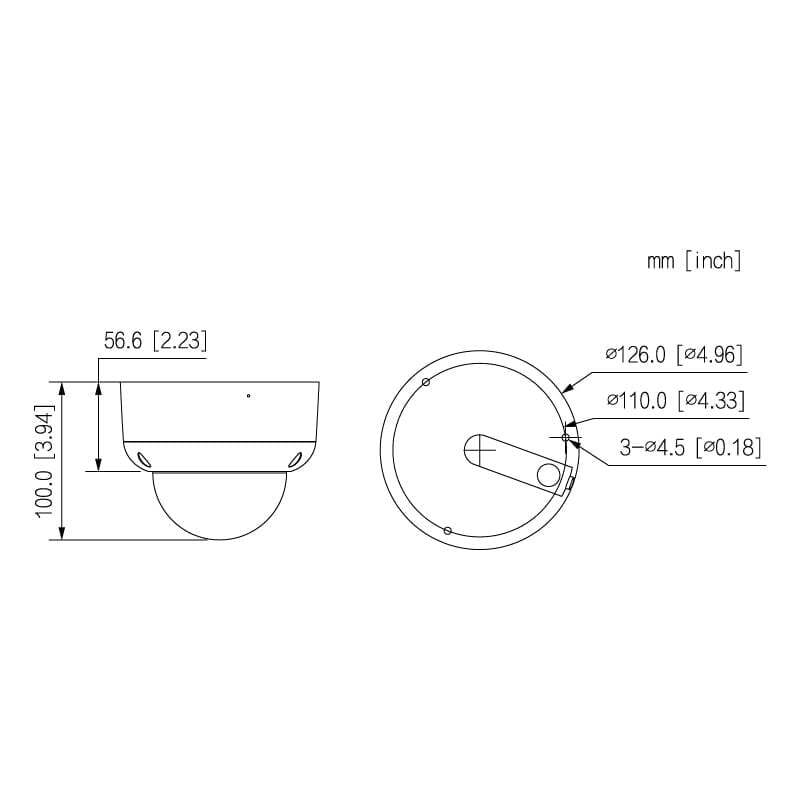

Professional Series 2.0MP Motorised HDCVI Vandal Dome
$174.46Original price was: $174.46.$152.86Current price is: $152.86.Description
With high resolution image quality up to 1080p and a compact, weather resistant aluminium body, the
VSCVI-2DIRMD captures excellent video footage, ultra-low light performance, long range infrared, and zero image distortion with its flat lens cover.
Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 108° ~ 30° horizontal viewing angles
• Superb colour image performance in low light at 0.001lx
• Smart infrared illumination, up to 60m range
• CVI / TVI / AHD / CVBS / Composite switchable via DIP switch
• True WDR (130dB) and 2D/3D noise reduction
• Audio signal transmission over coaxial cable
• IP67 rated weather resistant metal housing
• Dual power input 12VDC/24VAC
• Switch modes via DIP switches
Specifications
Documents
Download documents from the following links:
Secureview Victory Series VSCVI-2DIRMD (pdf)
