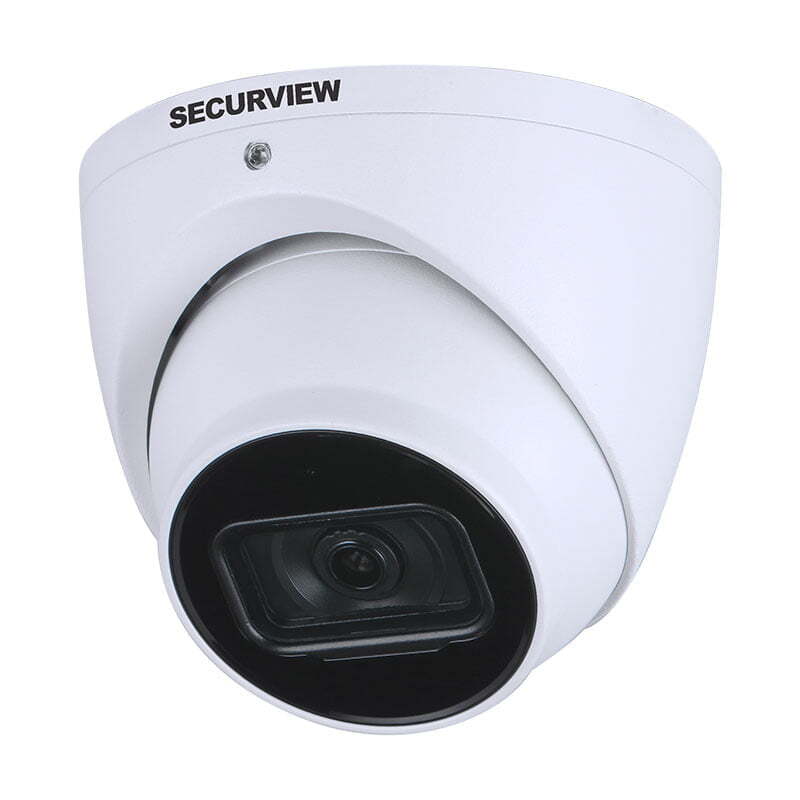

Professional Series 5.0MP 2.8mm Fixed HDCVI Turret
Sale!

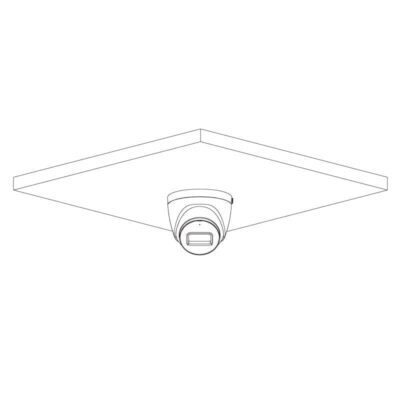

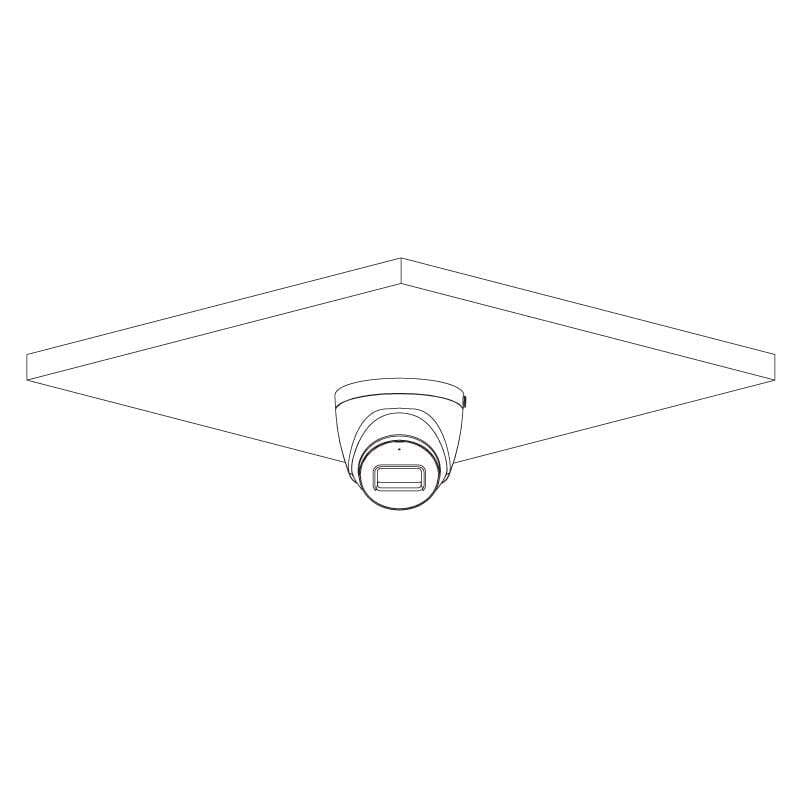

Professional AI Series 6.0MP Fixed Turret Dome
Professional AI Series 6.0MP Fixed Turret Dome
Professional AI Series 6.0MP Fixed Turret Dome
Professional AI Series 6.0MP Fixed Turret Dome
Professional AI Series 6.0MP Fixed Turret Dome
Professional AI Series 6.0MP Fixed Turret Dome
Professional AI Series 6.0MP Fixed Turret Dome
Professional Series 5.0MP WDR Motorised HDCVI Bullet
Professional Series 8.0MP WDR Motorised HDCVI Bullet - VSCVI-8BIRMG

Professional Series 5.0MP 2.8mm Fixed HDCVI Turret

Original price was: $155.00.Current price is: $120.27.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $30.07
Professional Series 5.0MP 2.8mm Fixed HDCVI Turret

Add to wishlist

SKU: VSCVI-5DIRG2 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSCVI-5DIRG2 offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather resistance for outdoor use, ultra low light performance and a small install footprint.

Camera features:

  • Stream up to 5.0MP (2880 x 1620) at 25fps
  • 2.8mm lens with wide 132° viewing angle
  • Superb colour image performance in low light at 0.001lx
  • Smart infrared illumination, up to 50m range
  • Switchable BNC output for HD/composite video
  • True WDR (120dB) and 2D/3D noise reduction
  • Up to 700m video transmission over coaxial cable
  • IP67 rated weather resistance
  • Compact Ø106mm base for versatile installation
  • Supports HDCVI, AHD, HDTVI & Composite video format modes

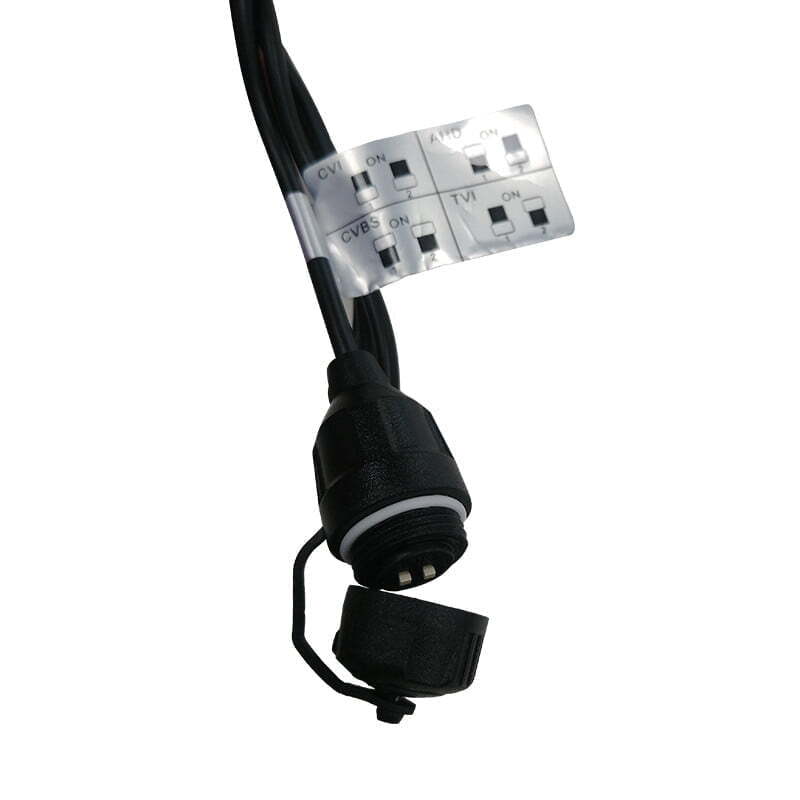

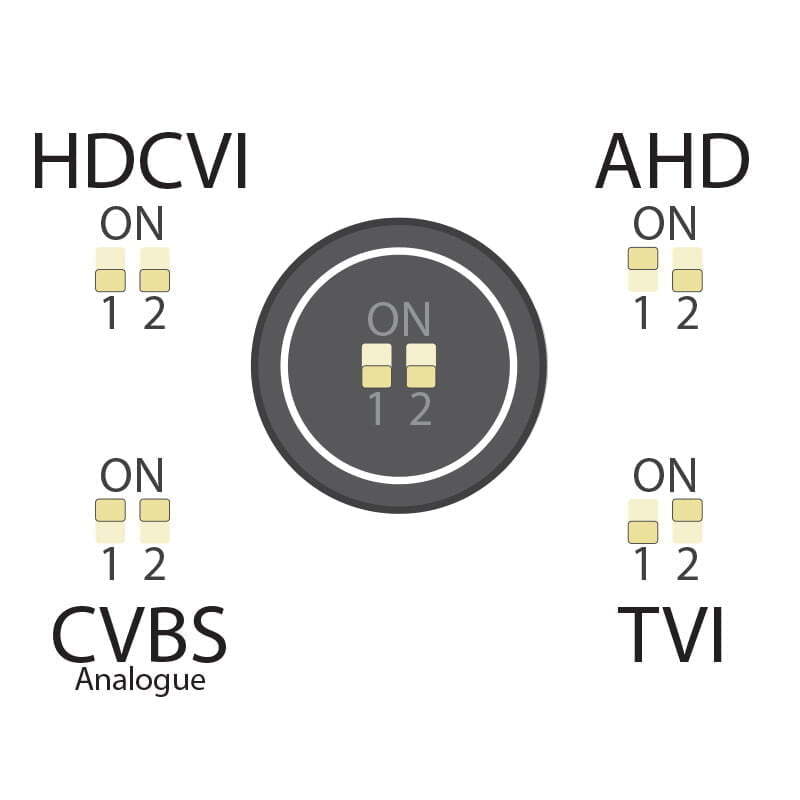

  • Switch modes via DIP switches

Register for Member Pricing

DORI

Detect (25px/m)
63.6m

Observe (63px/m)
25.4m

Recognise (125px/m)
12.7m

Identify (250px/m)
6.4m

Specification

Alarm Interface
N/A

Angle of View
132° (H) / 111° (V) / 50° (D)

Audio Input
1 channel in & Built-in mic

Camera Type
Turret

Day/Night
Auto (ICR) / Color / B&W

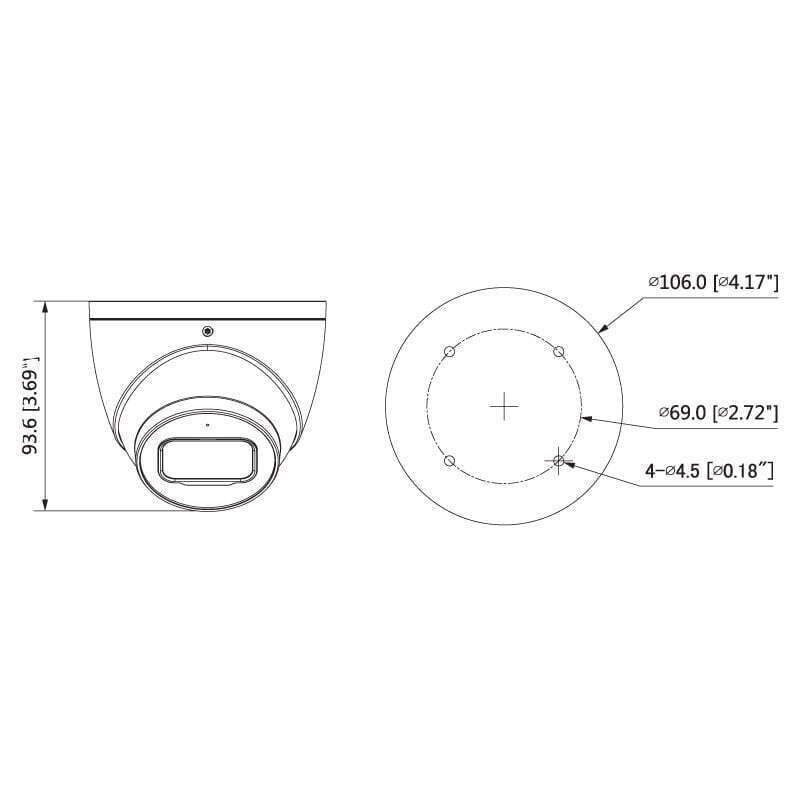

Dimensions
ø106mm x 94mm

Effective Pixels
2880 (H) x 1620 (V)

Electronic Shutter
1/3s ~ 1/100,000s

Focus
Fixed / 0.9m Min. Focus Distance

Frame Rate
25fps (5.0MP and lower)

Gain Control
Auto

Housing
Aluminium

Image Sensor
1/2” 5.0 Megapixel CMOS

Infrared Range
50m

Ingress Protection
IP67

Lens
2.8mm F1.6 Fixed Lens

Lens Type
Fixed

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. Resolution
5.0 Megapixel

Minimum Illumination
0.001 Lux at F1.6 (Colour) / 0 Lux IR Active

Mode Switching
DIP Switches

Modes Supported
HDCVI, AHD, HDTVI & Composite

Noise Reduction
2D / 3D

Operating Environment
-40° to 60°C / RH90% (max)

OSD Menu
Support

Power Consumption
<5.9W

Power Input
12VDC

Resolution
5.0MP (2880 x 1620) to 960H (960 x 576)

Series
Professional Series

Signal Noise Ratio
>65dB

Synchronisation
Internal

Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Tri-Axis Mounting
Yes

Vandal Resistant
N/A

Video Output
1 x HDCVI / AHD / TVI / Composite video output

Weight
0.43kg

White Balance
Auto / Manual

Warranty (years)
4

Register for Member Pricing



Documents

Download documents from the following links:

Securview VSCVI-5DIRG2 Datasheet (PDF)
