Shop » Products » HDCVI CCTV » HDCVI Digital Video Recorders » Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder
Sale!

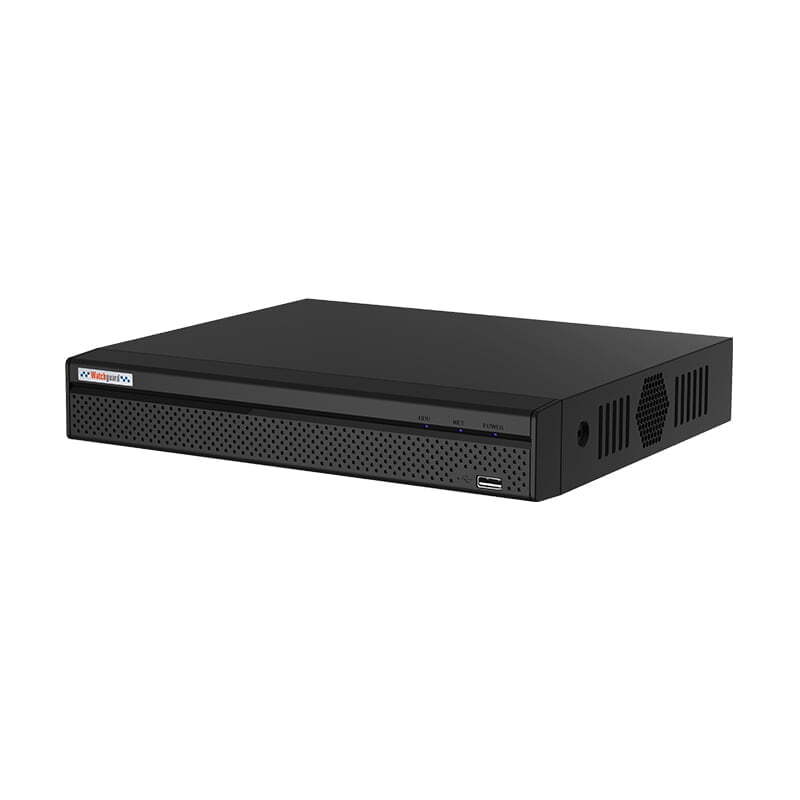

Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

Original price was: $812.90.Current price is: $586.36.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $146.59
Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

Add to wishlist

SKU: CVR16COM3 Category: Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The Watchguard Compact Series delivers Ultra HD surveillance with AI over your existing coaxial cable. DVRs in the range feature great cross compatibility, enabling you to upgrade cameras you’re not happy with, keep existing cameras you do like, and add AI alerts to improve your security experience. This makes them perfect for partial CCTV upgrades or upgrades on a budget. Monitor your home or business and keep all that you love safe with Watchguard Compact Series HDCVI DVRs.

Product features:

  • Record up to 8.0MP (3840 x 2160) at 7fps (HDCVI)
  • Supports analogue, HDTVI and AHD camera inputs
  • Supports additional IP channels* via the network up to 8.0MP / 4K with up to 128Mbps incoming bandwidth
  • 1 x HDD bays for up to 16TB of total footage storage
  • AI detection to identify people & vehicles with smart motion detection (SMD+) & perimeter protection
  • Identify people for security & business intelligence with

Register for Member Pricing



* Enabling IP channels disables AI & IVS functions

Specification

AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)

AI Search (Face Recognition)
Up to 8 target face images at the same time

AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)

AI Search (SMD+)
Search by target classification (Human, Vehicle)

Alarm Input / Output
16 channel input / 3 relay output

Audio In/Out
16 input / 1 output (RCA)

Auxiliary Inputs
1 x RS485 port

Backup Modes
USB Device / Network

Bit Rate
32Kbps ~ 6144Kbps Per Channel

Coax Input Support
16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)

Database Application
Each database can be applied to video channels independently

Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

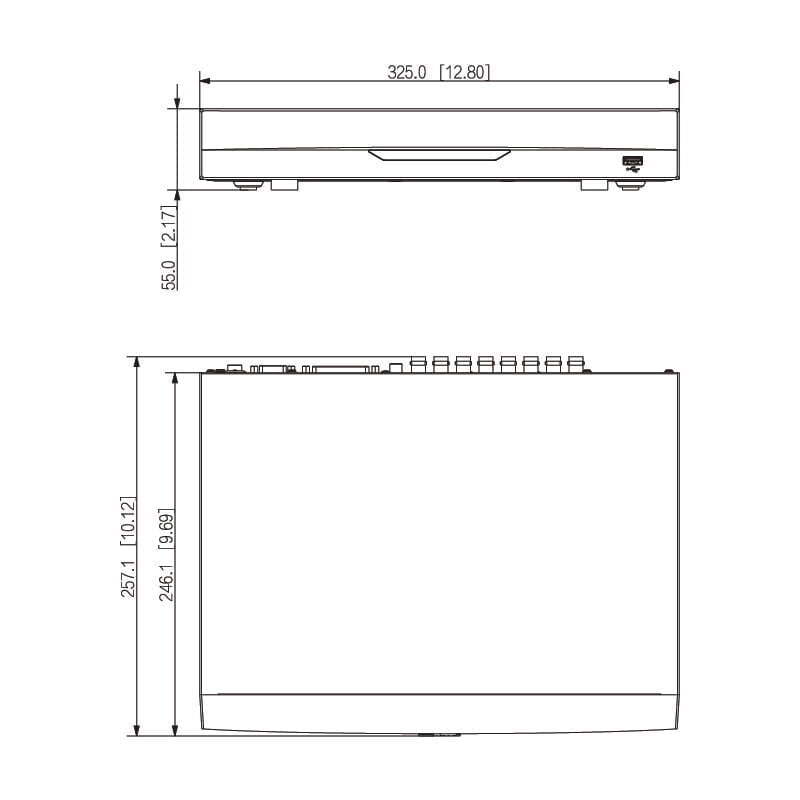

Dimensions
325mm x 257mm x 55mm (1U)

Display Resolution
HDMI: 3840 x 2160 to 1280 x 720 ; VGA: 1920 x 1080 to 1280 x 720

Display Split
1/4/8/9/16 (36 with IP extension mode enabled)

Ethernet
1x RJ-45 port (1000MB)

Frame Rate (Main)
8.0MP (1~7fps), 6.0MP (1fps~10fps), 4.0MP (1~15fps), 1080p and lower (1~25fps)

Frame Rate (Sub)
960H (1 ~15fps)

Frame Rate (Third)
N/A

Internal HDD
1 x SATA port, up to 16TB, max. 16TB HDD capacity

IP Input Max. Bandwidth
128Mbps

IP Input Max. Resolution
8.0MP

IP Input Support
16 channels

Main Processor
Embedded Processor

Max. User Access
128 users

Maximum Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)

Network Functions
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion

Operating Environment
-10°C ~ 55°C / 10% ~ 90% RH

Operating System
Embedded Linux

OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Performance (Face Recognition)
Max. 12 pictures per second, 2 channel video stream only supports analog cameras (Performance varies depending on camera and resolution)

Performance (Perimeter Protection)
2 channels, 10 IVS rules for each channel (advanced) ; 8 channels, 10 IVS for each channel (general)

Performance (SMD+)
16 Channels

Playback Sync
1/4/9/16

Power Consumption
<15W (without HDD)

Power Supply
12VDC / 3A

Rackmount Units
N/A

Rackmountable
No

Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop

Remote View
iOS (iPhone, iPad); Android devices

Search Modes
Time /Date, Alarm, Motion detection and Exact search (to the second), smart search

Stranger Mode
Detect strangers face (not in database)

Supported Video Inputs
HDCVI / HDTVI / AHD / Analogue / IP

Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Trigger Events (Face Recognition)
Recording, PTZ, tour, alarm, push video notification, email notification, FTP upload, snapshot, internal buzzer, screen tip overlay, and voice prompt

Two-way Talk
Reuse channel 1 audio input/output

USB Interface
2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)

Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264

Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Video Input
16 channel BNC

Video Output
1 HDMI / 1 VGA

Weight
1.5kg (without HDD)

Warranty (Years)
4

Register for Member Pricing



Documents

Download documents from the following links:

CVRCOM3 Series Datasheet (PDF)
