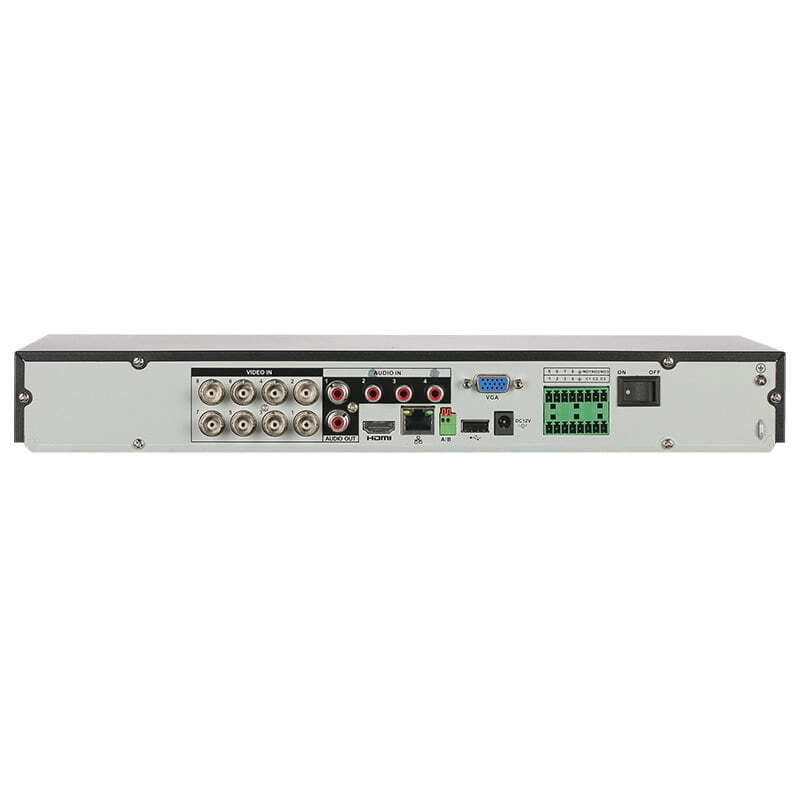

Professional Series 8 Channel 8.0MP HDCVI AI Digital Video Recorder

Original price was: $625.90.Current price is: $451.04.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $112.76
Professional Series 8 Channel 8.0MP HDCVI AI Digital Video Recorder

Add to wishlist

SKU: CVR8PRO5 Category: Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial based systems to HDCVI (high definition composite video interface) and gain access to AI functionality*, 4K recording at 7fps and cross compatibility for IP, analogue and other coax technologies. These DVRs are fantastic for existing coax cable system upgrades and for upgrades on a budget that wish to use existing cameras.

Product features:

  • Records 8 channels up to 8.0MP (3840 x 2160) at 7fps
  • Supports H.265+ high efficient video compression
  • 2 x SATA ports up to 16TB, max. 32TB HDD capacity
  • Support for HDCVI, Analogue and IP video inputs
  • Add 8 additional IP channels up to 8.0MP to allow a total of 16 cameras*
  • Identify people with up to 2 channels of face recognition (BNC inputs only)
  • AI person and vehicle detection using smart motion detection or intrusion/tripwire rules
  • Receive face recognition & people/vehicle detection alerts to your device
  • Alarm system integration with 8 channel input and 3 relay outputs
  • Configure iOS/Android remote view in seconds via QR code
  • HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
  • Backup via external USB device or local network

Register for Member Pricing

*Enabling addition of IP Cameras disables AI / IVS functions

Specification

AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)

AI Search (Face Recognition)
Up to 8 target face images at the same time

AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)

AI Search (SMD+)
Search by target classification (Human, Vehicle)

Alarm Input / Output
8 channel input / 3 relay output

Audio In/Out
4 channel input / 1 channel output (RCA)

Auxiliary Inputs
1 x RS485 port (for PTZ)

Backup Modes
USB Device / Network

Bit Rate
32Kbps ~ 6144Kbps Per Channel

Coax Input Support
8 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)

Database Application
Each database can be applied to video channels independently

Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Dimensions
375mm x 288mm x 53mm

Display Resolution
3840 x 2160 to 1280 x 720

Display Split
1/4/8/9 (16 with IP extension mode enabled)

Ethernet
1x RJ-45 port (1000M)

Frame Rate (Main)
4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)

Frame Rate (Sub)
960H (1 ~15fps) / D1 (1~25fps)

Frame Rate (Third)
N/A

Internal HDD
2 x SATA ports up to 16TB, max. 32TB HDD capacity

IP Input Max. Bandwidth
128Mbps

IP Input Max. Resolution
8.0MP

IP Input Support
8 channels

Main Processor
Embedded Processor

Max. User Access
128 users

Maximum Resolution
8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)

Network Functions
HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search

Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion

Operating Environment
-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH

Operating System
Embedded Linux

OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Performance (Face Recognition)
Max. 12 face pictures per second (modeling and comparing), Approx. 2 channels face recognition (BNC inputs only) (Performance varies depending on camera and resolution)

Performance (Perimeter Protection)
2 Channels, 10 IVS rules for each Channel

Performance (SMD+)
8 Channels

Playback Sync
1/4/9

Power Consumption
<10W (without HDD)

Power Supply
12VDC / 4A

Rackmount Units
1RU

Rackmountable
No

Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Record Modes
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Remote View
iOS (iPhone, iPad); Android devices

Search Modes
Time /Date, Alarm, MD and Exact Search (accurate to second)

Stranger Mode
Detect strangers face (not in database)

Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP

Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Trigger Events (Face Recognition)
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.

Two-way Talk
Reuse channel 1 audio input/output

USB Interface
2 ports: 1x USB2.0, 1x USB3.0

Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264

Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Video Input
8 channel BNC

Video Output
1 HDMI / 1 VGA

Weight
1.6kg (without HDD)

Warranty (Years)
4



Register for Member Pricing

Documents

Download documents from the following links:

Pro Series HDCVI DVR Product Datasheet (PDF)
