Description

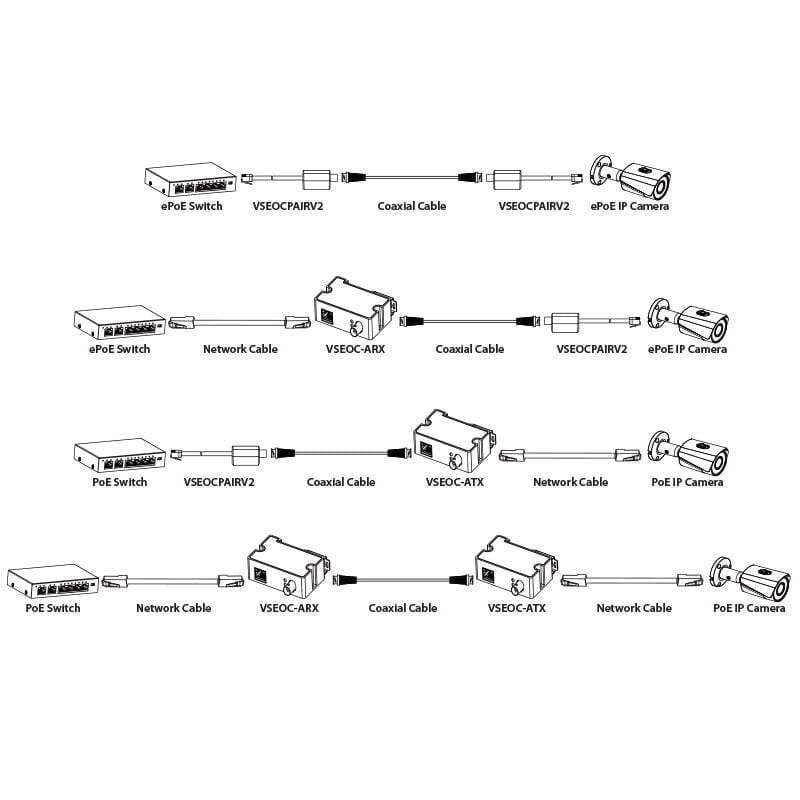

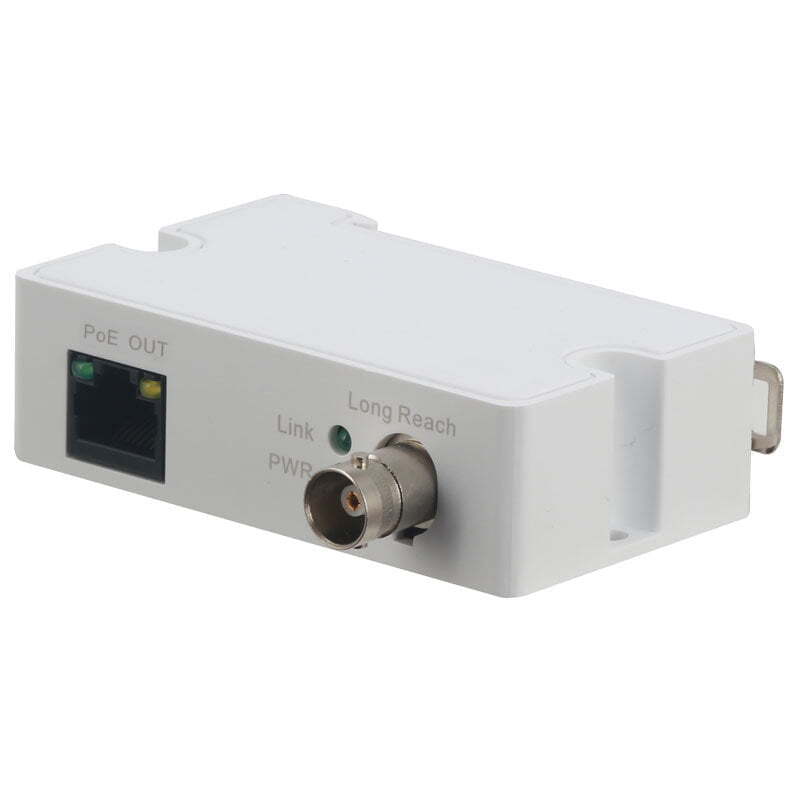

Convert RJ45 network connections to coaxial cable with the VSEOC-ATX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at PoE standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
Specifications
| Dimensions | 79mm x 52mm x 23mm |
| Network Protocol | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Operating Environment | -30°C-65°C / <95% RH |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| Ports | 1 x 10/100 Mbps Base-TX, 1 x BNC |
| Power Consumption | <2W |
| Surge Protection | Common Mode: 4KV / Differential Mode: 2KV |
| Transmission Bandwidth | RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps |
| Weight | 61g |
| Warranty (Years) | 4 |
Shipping Weight and Dimensions includes product packaging
| Width | 130 mm |
| Height | 72 mm |
| Depth | 80 mm |
| Weight | 0.10 kg |
Download the brochure from the link below.
Brochure
Please submit your product questions below:
Ethernet over Coax Transmitter
$79.00Original price was: $79.00.$59.68Current price is: $59.68.Description
Convert RJ45 network connections to coaxial cable with the VSEOC-ATX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at PoE standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
Specifications
Shipping Weight and Dimensions includes product packaging
Download the brochure from the link below.
Brochure
