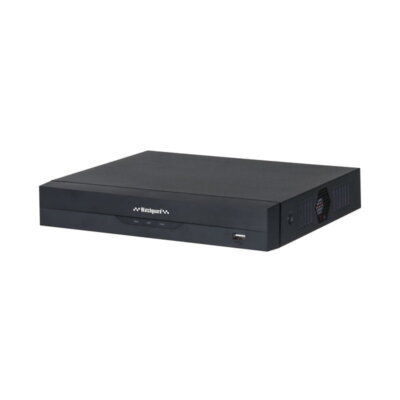

Compact 4 Channel Network Video Recorder with PoE (80Mbps)
Sale!
Compact 4 Channel Network Video Recorder with PoE (80Mbps)
Compact 4 Channel Network Video Recorder with PoE (80Mbps)

Compact AI Series 4CH PoE NVR with 1 x HDD Bay

Original price was: $293.15.Current price is: $256.85.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $64.21
Compact 4 Channel Network Video Recorder with PoE (80Mbps)

Add to wishlist

SKU: NVR4COM-I Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The Watchguard™ Compact AI Series brings the best of AI surveillance features in an affordable package. The NVR4COM-I allows you to bring AI face recognition or AI person/vehicle detection to your CCTV installations, guaranteeing that important events are detected and can be acted upon. This NVR is perfect for new systems or replacement of existing NVRs to upgrade to AI capable surveillance.

Product features:
• Records up to 16.0 megapixel (4920 x 3264)
• Up to 80Mbps incoming bandwidth (recording/outgoing)
• Decoding 4CH@8MP/25fps (AI disabled), 4CH@5MP/25fps (AI enabled)
• AI face recognition and database comparison by NVR up to 1 channel, or;
• AI human/vehicle detection via tripwire/intrusion rule by NVR up to 2 channels, or;
• AI human/vehicle detection via motion detection by NVR up to 4 channels
• Support for ANPR up to 4 channels (automatic number plate recognition)
• 1 x SATA bay with support for up to 16TB capacity HDDs per bay
• Built-in 4 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network

Specifications

General
Main Processor
Industrial-grade processor
Operating System
Embedded LINUX
Video Input
4 channels
Two-way Talk
–
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
Configurable from 3840 x 2160 to 1280 x 720
Display Split
1st screen – 1/4, 2nd screen – 1/4
OSD
–
Recording
Recording Resolution
Configurable from 16.0MP (4920 x 3264) to CIF (352 x 288)
Incoming Bandwidth (AI Disabled)
80Mbps incoming (recording/outgoing)
Incoming Bandwidth (AI Enabled)
80Mbps incoming (recording/outgoing)
Decoding Capacity (AI Disabled)
4CH@8MP/25fps
Decoding Capacity (AI Enabled)
4CH@5MP/25fps
Video Compression
Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG
Record Modes
General / motion detection / intelligent / alarm
Record Interval
–
AI Functions
AI Functions by Recorder
Face detection, face recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection
AI Functions by Cameras
Face detection, ANPR, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection
AI Human/Vehicle Detection
AI Motion Detection (by Recorder)
4 channels
AI Motion Detection (by Cameras)
4 channels
AI Tripwire/Intrusion (by Recorder)
2 channels, 10 IVS rules for each channel
AI Tripwire/Intrusion (by Cameras)
4 channels
AI Face Detection & Recognition
AI Face Detection (by Recorder)
1 channel
AI Face Detection (by Cameras)
4 channels
AI Face Detection Performance
Up to 10 face databases with 200,000 face images
AI Face Detection Features
Whitelist, Blacklist, Stranger Mode
AI Face Recognition (by Recorder)
1 channel (with Ultimate AI cameras)
AI Face Recognition (by Cameras)
4 channels
AI Face Recognition Performance
12 face images/s
Metadata
Face
Gender, age, glasses, beard, mask, expression
Vehicle
Vehicle colour, vehicle model, vehicle logo, plate colour, vehicle decorations, call, seatbelt
Human Body
Tops style, tops colour, bottom style, bottom colour, hat , bag
Non-motor Vehicle
Type, colour, people, number
AI Search (Metadata)
Support search target video by metadata
Features
Alarm Input / Output
–
Trigger Events
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
Video Detection
–
Playback Sync
1/4
Search Modes
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Modes
USB Device / Network
Network
Ethernet
1 RJ-45 port (10/100Mbps)
Power over Ethernet
4 ports, 10/100 Mbps, IEEE 802.3 af/at
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
Optical Interface
–
Max. User Access
–
Remote View
iOS (iPhone, iPad) / Android devices
Storage
Internal HDD
1 SATA ports, up to 16TB, max.
HDD Modes
–
USB Interface
2 x USB ports (1 x Rear USB 2.0, 1 x Front USB 2.0)
Auxiliary Inputs
N/A
Environment
Power Supply
DC53V/1.226A
Power Consumption
NVR: 10W (without HDD) / PoE: Max 25.5W per port, 36W total
PoE
Yes
Operating Environment
-10°C ~ +55°C / 10 ~ 90%RH
Rackmountable
–
Rackmount Units
1U

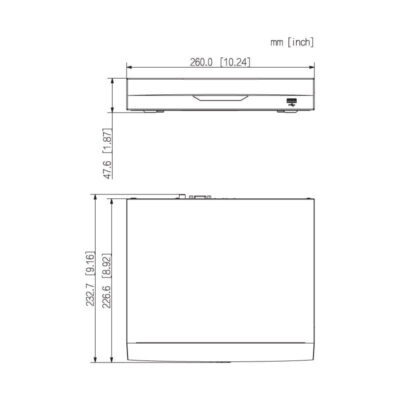

Dimensions
260mm x 233mm x 48mm
Weight
0.86kg (without HDD)
Warranty (Years)
4



Register for Member Pricing

Documents

Download documents from the following links:

Watchguard Compact AI Series NVRs Datasheet (PDF)
