Shop » Products » IP CCTV » iVSEC » IP Cameras » IVSEC Dome IP Cam, 8MP @ 25fps, 2.8mm – 12mm Lens, IP66, 45m IR
NC512XB
Sale!

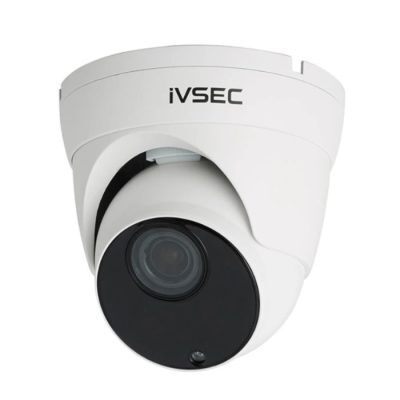

IVSEC Dome IP Cam, 8MP @ 25fps, 2.8mm – 12mm Lens, IP66, 45m IR

Original price was: $561.00.Current price is: $555.39.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $138.85
8MP Motorised 2.8mm – 12mm Lens Dome camera with video analytics, 45m IR range, in an IP66 vandal proof enclosure.

Add to wishlist

SKU: IVNC512XD Categories: , , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The IVSEC NC512XD IP security camera offers an 8 Megapixel resolution SONY sensor combined with a motorised 3.6-12mm vari-focal lens and a set of advanced features.
The built-in infrared illumination enables night vision at up to 45 metres.
SONY Sensor. The best dome to capture the event. If it is critical to the get the right shot use the motorised lens and 8MP for digital zoom. 25 FPS for smooth footage and the SONY image sensor make this high-end camera great for POS/Cash and entryways.
When used together with the IVSEC X series recorders, this camera will be automatically detected with Plug & Play.
Reduce installation labour and parts required by using one cable for both data and electricity with PoE (Power over Ethernet).
The IVSEC NC512XD features an IP66 water resistant and anti-vandal dome which means this video surveillance camera can be used both indoors and outdoors.
The NC512XD security camera features H.265 video compression technology, edge recording, triple stream and is fully compatible with the ONVIF standard.
It also offers on board video analytics: Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting.
Key Features:

  • 8MP Progressive CMOS Lens for 3840×2160 resolution
  • 25fps frame rate
  • 2.8-12 mm vari-focal motorised lens (114 to 36° field of view)
  • 45m IR range for night vision
  • Video analytics
  • IP66
  • Vandal resistant
  • 3 year warranty

NC512XD Specifications

Camera Type
Dome

Image Sensor
1/2.5″ 8MP Progressive CMOS

Maximum Video Resolution
3840×2160

Maximum Video Resolution (Megapixels)
8

Lens
2.8-12 mm (H. FOV 114 to 36°)

Lens Type
Motorised (zoom and focus)

Maximum Night IR Distance (M)
45

Image Clarity*
5

Connectors
RJ-45, DC Power Input, Analog Video Out, Audio In, Audio Out, Alarm in or out

Video Compression
H.265, H.264

ONVIF
YES 2.6

Operating Environment
-30ºC to 55ºC (14ºF-131ºF) Humidity: < 95% RH

Dimensions
151 X 113mm

Weight
0.87

Accessories
IV2422X, IV2433X, IV2444X, IV2455X

Power Supply
Power over Ethernet (PoE) IEEE 802.3af, DC12V

Power Consumption
< 9W

Outdoor Use
Yes

IP Rating
IP66

Vandal Resistant
Yes

Frame Rate Resolution
25

Day/Night Mode
Auto IRC

Image Enhancement
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue

Edge Recording Slot microSD/SDHC Card
Yes

Protocols
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP, SNMP, P2P (QR code)

Audio Stream
Yes – input connector for external mic

IVS
Yes

Intelligent Video
Motion Detection, Video Loss, Tampering Detection, Storage Exception, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting

Software
Device Tool Manager, Video Monitoring Software, Mobile App.

UPNP
Yes

In The Box
Free Software available from FTP, Printed quick user guide, installation template, mounting screws and plugs

Warranty
36 months parts & labour warranty

*Image Clarity is an IVSEC metric for comparison between IVSEC cameras with 5 being the best

Register for Member Pricing

Ask a Question

Please ask questions you may have about this product or your project in the form below

Ask a question about this item

Documents

Download documents from the following links:

IVNC512XD-datasheet

IVSEC-IPC-QUG-28102020

DORI Distance

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
NC512XD

Detect (25px/m)
77m (Wide)
244m (Tele)

Observe (63px/m)
30m (Wide)
97m (Tele)

Recognise (125px/m)
15m (Wide)
48.9m (Tele)

Identify (250px/m)
7.7m (Wide)
24 (Tele)

Note: Wide is for minimum zoom and Tele is for Maximum Zoom

For more information on selecting a CCTV camera please see this post:

Choosing the right CCTV camera for your application.
