Shop » Products » IP CCTV » Provision-ISR IP CCTV » IP EYE-SIGHT-V2 » 20M IR 4MP Fixed Lens Anti-Vandal Dome – DAI-340IPEN-28
20M IR 2MP Fixed Lens Anti-Vandal Dome - DAI-320IPE-28
20M IR 2MP Fixed Lens Anti-Vandal Dome - DAI-320IPE-28

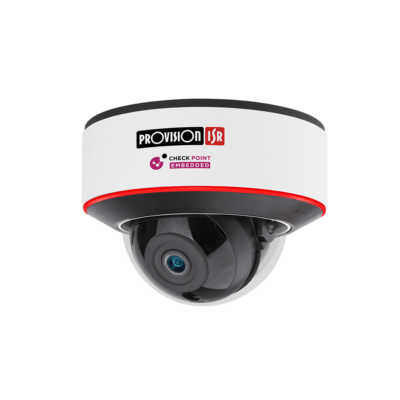

20M IR 4MP Fixed Lens Anti-Vandal Dome – DAI-340IPEN-28

Login, Register, or Call for Price

Register for Member Pricing

4MP IP Camera • Eye-Sight v2 Series • NDAA Certified • Real-Time • 1/3″ CMOS • 2.8mm Fixed Lens • DDA Object Detection • Face Detection
SKU: DAI-340IPEN-28 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

20m IR 4MP DDA Analytics fixed Lens Medium Anti-Vandal Dome Camera

Equipped with a 2.8mm fixed lens, this 4MP anti-vandal camera is designed for short-distance surveillance(up to 20m) in indoor and outdoor scenarios.

Designed for monitoring high-security areas (such as banks, hotels, or chain stores) and capturing crime in the act, the camera features vandal-proof IK10 protection, making it extremely hard to sabotage.

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. With various detection rules and triggers, the DAI-340IPEN-28 camera will help end false alarms.

Register for Member Pricing

Israeli made professional high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DAI-340IPEN-28-features

DAI-340IPE-28 Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/3″ CMOS (16:9)
Effective Pixels
2592×1520
Electronic Shutter
1/25s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
One-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification Audio Exception
Motion Detection
Yes

Compression

Resolution
4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF
Frame Rate
1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode***
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4MP(2592×1520) / 2K (2560×1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8mm (100°)
Iris
Fixed Iris
Lens Mount
M12 Mount

Network

User Access
Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Built-in Microphone + Audio input
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 128Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
Technician Port

Housing

PoE
Yes
Illumination
20m (3 High-Power IR LED)
Power Supply
DC12V/~415mA / PoE/~5W
Protection Rate
Waterproof: IP67, Vandal-Proof: IK10
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø119×87.8mm
Weight (gross)
~650g
Hard Reset Button
Yes

Register for Member Pricing

Ask a Question

Please ask questions you may have about this product or your project in the form below

Ask a question about this item

Downloads

Documents

DAI-340IPEN-28 Datasheet

v5.x 320IPEN 340IPEN FL Series Manual

Software:

Latest CMS Version

Latest CMS for MAC

Latest IP Tool

DORI Distance

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DAI-340IPEN-28

Detect (25px/m)
59m

Observe (63px/m)
23m

Recognise (125px/m)
11.8m

Identify (250px/m)
5.9m

For more information on selecting a CCTV camera please see this post:  Choosing the right CCTV camera for your application.
