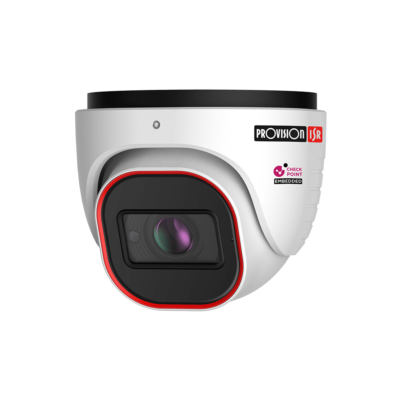

40M IR 8MP Motorized Motorised Lens Dome – DI-380IPEN-MVF-V3

Login, Register, or Call for Price

Register for Member Pricing

40m IR 8MP DDA Analytics Motorized Lens Large Dome/Turret Camera With Built-in Check Point Protection
SKU: DI-380IPEN-MVF-V3 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

40m IR 8MP DDA Analytics Motorized Lens Large Dome/Turret Camera With Built-in Check Point Protection

Equipped with a 2.8-12mm motorized lens, this 8MP Dome camera is designed for long-distance surveillance (up to 40m) in indoor and outdoor scenarios.

This model complies with NDAA demands and ensures your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime.

The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. With various detection rules and triggers, the DI-380IPEN-MVF-G-V3 camera is here to end false alarms.

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

DI-380IPEN-MVF-V3-features

DI-380IPEN-MVF-V3 Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/2.8″ CMOS (16:9)
Effective Pixels
3840×2160
Electronic Shutter
1/3s ~ 1/10000s
Day & Night
ICR
Min. Illumination
0.015 lux (@F1.4, AGC on) 0 lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR*** (120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection
Yes

Compression

Resolution
8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Frame Rate
8MP @ 1-20FPS, 6MP @ 1-20FPS, 5MP @ 1-25/30, 4MP @ 1-25/30, 2MP 1-25/30 in normal mode 1-50/60FPS in HFR Mode***
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 4K(3840×2160) (1~20fps)/ 6MP(3072×2048) / 5MP(2592×1944) / 2K(2560×1440) / 2MP(1920×1080) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit Rate
64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
2.8-12mm MVF with Auto Focus (96°- 32°)
Iris
DC Iris
Lens Mount
Ø14 Mount
Detect
2.8~12mm(W) 80m(262ft) 2.8~12mm(T) 273m(896ft)
Recognize
2.8~12mm(W) 16m(52ft) 2.8~12mm(T) 55m(180ft)
Identify
2.8~12mm(W) 8m(26ft) 2.8~12mm(T) 27m(89ft)

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet
100Mbps
ONVIF
Profile T/S/G

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Audio input + Audio output
Alarm
No
SD Card
Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand
No
Power
DC Socket
Analog Video Output
No

Housing

PoE
Yes
Illumination
40m (4 High-Power IR LED)
Power Supply
DC12V/~910mA / PoE/~8.2W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
Ø113mm×99.6mm
Weight (gross)
~1040g
Hard Reset Button
Yes

Ask a Question

Please ask questions you may have about this product or your project in the form below

Ask a question about this item

Downloads

Documents

DI-380IPEN-MVF-V3

Software:

Latest CMS Version

Latest CMS for MAC

Latest IP Tool

DORI Distance

DORI Distance

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Model
DI-380IPEN-MVF-V3

Detect (25px/m)
91.6m (Wide)
275m (Tele)

Observe (63px/m)
36.3m (Wide)
109m (Tele)

Recognise (125px/m)
18m (Wide)
55m (Tele)

Identify (250px/m)
9m (Wide)
27.5m (Tele)

Note: Wide is for minimum zoom and Tele is for Maximum Zoom
