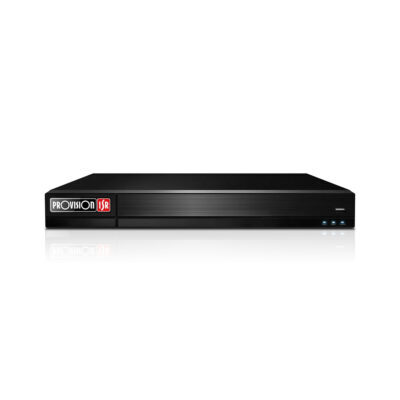

16CH 8MP NVR8 with Alarm, No PoE - NVR8-16400A(1U)

16CH 8MP NVR8 with Alarm, No PoE – NVR8-16400AN(1U)-V2

Login, Register, or Call for Price

16 Channel (Via Network) • Output: HDMI(4K) / 1080P/ 1280×1024 / 1024×768 • Recording resolution – up to 8 Megapixels • 1U Case, 2 HDD • Audio In/Out • Alarm In/Out

SKU: NVR8-16400AN(1U)-V2 Category: Provision-ISR NVR

Free Shipping for orders over $600 (AU Only)*

Brand: Provision-ISR

Description

Input: 16 Channel (Via Network) • Output: HDMI/VGA (4K,1080P, 1280×1024, 1024×768) • Recording resolution – up to 8 Megapixels • Mini Metal Case, 2 HDD up to 8TB each (not installed) • 1000Mbps Network

This is a 16 Channel Lite NVR capable of recoding cameras up to 8MP. Record 16 channels of up to 8MP with basic analytics – Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.

Playback to 4K / HD / VGA monitor in real time.

PoE ports are not included on this model and maximum of 96Mb/s incoming or outgoing stream. Camera streams are added via LAN port (cameras require separate power) on NVR.

Install up to 2 surveillance grade Hard Disk Drives up to 8TB each.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR8-16400A(1U) Features

3rd Party Cyber Protection

General

Quantum IoT Nano agent by Check Point™

Protection Methods

Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

Yes

Video

Video Input

16Ch over Network

Output

HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768)

View Mode

Mirrored

Fish-Eye Dewarp

Web Only

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 8MP ; 4Ch – 2MP ; 9/16Ch – D1

Audio

Audio-specs-Input

1CH RCA (Linear, 1k?) + IPC inputs

audio-specs-Output

1CH RCA (2.0 Vp-p, 1 k?) + IPC outputs

Compression

G.711A/G.711U

Two Way Audio

Yes

Analytics

Supported Analytics

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR, Thermal *DDA/LPR Analytics Live Snapshots are not supported

Analytics Channels (IPC Based)

16Ch (Requires supporting IPC)

Analytic Channels (NVR Based)

N/A

Face Recognition Rate

N/A

Bandwidth

Incoming

96Mbps

Outgoing

96Mbps

Record/ Main Stream

Real-Time Recording

16CH 8MP Real-Time

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of the combinations

16MP

N/A

12MP

N/A

8MP

480FPS(NTSC)/400FPS(PAL)

5MP and lower

480FPS(NTSC)/400FPS(PAL)

Master stream over network

Up to 16CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

80Ch (Limited to Outgoing Bandwidth Capacity)

Remote Applications

User Access

10 Users Online with Professional Autorithy Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera.

Plug-in based Web-Browser

Internet Exporer

Playback

Local

16Ch

Remote

16Ch

Search Mode

DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

4+IPC

Alarm-out

1+IPC

Storage

HDD

E-Sata Support

RAID

N/A

PTZ

Connection

Via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

N/A

Network

Ethernet

1000/100/10Mbps self-adaptive Ethernet interface

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports

N/A

Speed

N/A

Standard

N/A

CCTV Mode

N/A

Total Power

N/A

Max. Power Output (Per Ch.)

N/A

Others

Power Supply

DC12V/4A

Power consumption (No HDD)

Dimension

W375xD275xH50mm

Operation Temperature

0°C~50°C

Documents

>NVR8-16400AN(1U)-V2

Ossia NVR User Manual

Software:

Input: 16 Channel (Via Network) • Output: HDMI/VGA (4K,1080P, 1280×1024, 1024×768) • Recording resolution – up to 8 Megapixels • Mini Metal Case, 2 HDD up to 8TB each (not installed) • 1000Mbps Network

This is a 16 Channel Lite NVR capable of recoding cameras up to 8MP. Record 16 channels of up to 8MP with basic analytics – Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.

Playback to 4K / HD / VGA monitor in real time.

PoE ports are not included on this model and maximum of 96Mb/s incoming or outgoing stream. Camera streams are added via LAN port (cameras require separate power) on NVR.

Install up to 2 surveillance grade Hard Disk Drives up to 8TB each.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR8-16400A(1U) Features

3rd Party Cyber Protection

General

Quantum IoT Nano agent by Check Point™

Protection Methods

Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

Yes

Video

Video Input

16Ch over Network

Output

HDMI (4K, 1080P), VGA (1080P, 1280×1024, 1024×768)

View Mode

Mirrored

Fish-Eye Dewarp

Web Only

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 8MP ; 4Ch – 2MP ; 9/16Ch – D1

Audio

Audio-specs-Input

1CH RCA (Linear, 1k?) + IPC inputs

audio-specs-Output

1CH RCA (2.0 Vp-p, 1 k?) + IPC outputs

Compression

G.711A/G.711U

Two Way Audio

Yes

Analytics

Supported Analytics

Analytics Channels (IPC Based)

16Ch (Requires supporting IPC)

Analytic Channels (NVR Based)

N/A

Face Recognition Rate

N/A

Bandwidth

Incoming

96Mbps

Outgoing

96Mbps

Record/ Main Stream

Real-Time Recording

16CH 8MP Real-Time

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of the combinations

16MP

N/A

12MP

N/A

8MP

480FPS(NTSC)/400FPS(PAL)

5MP and lower

480FPS(NTSC)/400FPS(PAL)

Master stream over network

Up to 16CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

80Ch (Limited to Outgoing Bandwidth Capacity)

Remote Applications

User Access

10 Users Online with Professional Autorithy Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera.

Plug-in based Web-Browser

Internet Exporer

Playback

Local

16Ch

Remote

16Ch

Search Mode

DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

4+IPC

Alarm-out

1+IPC

Storage

HDD

E-Sata Support

RAID

N/A

PTZ

Connection

Via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

N/A

Network

Ethernet

1000/100/10Mbps self-adaptive Ethernet interface

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports

N/A

Speed

N/A

Standard

N/A

CCTV Mode

N/A

Total Power

N/A

Max. Power Output (Per Ch.)

N/A

Others

Power Supply

DC12V/4A

Power consumption (No HDD)

Dimension

W375xD275xH50mm

Operation Temperature

0°C~50°C
