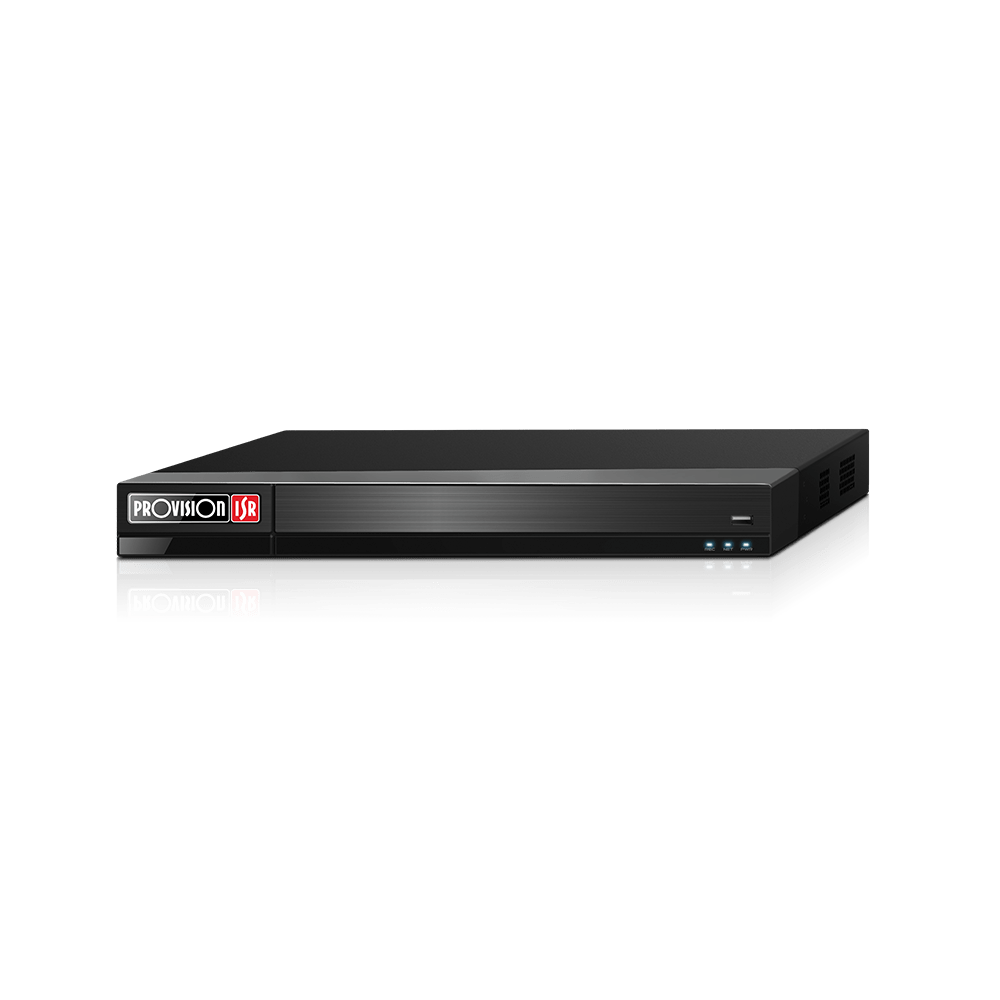

32CH 12MP NDAA Compliant, Face Recognition NVR, No PoE - NVR12-32800FAN(1U)
32CH 12MP NDAA Compliant, Face Recognition NVR, No PoE - NVR12-32800FAN(1U) - Image 2
32CH 12MP NDAA Compliant, Face Recognition NVR, No PoE - NVR12-32800FAN(1U) - Image 3

32CH 12MP NDAA Compliant, Face Recognition NVR, No PoE – NVR12-32800FAN(1U)

Login, Register, or Call for Price

Register for Member Pricing

32 Channel AI (No PoE) • Output: HDMI/VGA • 1U Case, 2 HDD • Audio In/Out • 1000Mbps Network
SKU: NVR12-32800FAN(1U) Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Input: 32 Channel (Via Network, No PoE) • Output: HDMI(4K), VGA • 1U Case, 2 HDD • Audio In/Out • 1000Mbps Network

This is a 32 Channel AI NVR capable of recording cameras up to 12MP. Record 32 channels of up to 12MP with analytics – Face Recognition, Smart Search, Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.

Playback to 4K / HD  / VGA monitor in real time.

PoE ports are not included on this model and maximum of 256Mb/s incoming or outgoing stream.  Camera streams are added via LAN port (cameras require separate power) on NVR.

Register for Member Pricing

Install up to 2 surveillance grade Hard Disk Drives up to 8TB each.

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR12-32800FAN(1U)-features

NVR12-32800FAN(1U)(1U) Features

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Video Input
32Ch over Network
Output
HDMI1 (4K 30/60Hz, 1080P, 1280×1024, 1024×768), HDMI2 + VGA (1080P, 1280×1024, 1024×768)
View Mode
Independent*, Up to 32ch on monitor1 + 9ch on monitor2
Fish-Eye Dewarp
Local + Web
Decoding Format
H.265 / H.265+ / H.265S / H.264
Decoding Capabilities
1Ch – 12MP ; 4Ch – 2MP ; 9-32Ch – D1

Audio

Audio-specs-Input
1CH RCA (Linear, 1k?) + IPC inputs
audio-specs-Output
1CH RCA (2.0 Vp-p, 1 k?) + IPC Outputs
Compression
G.711A/G.711U
Two Way Audio
Yes

Analytics

Supported Analytics
Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal. Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition.
Analytics Channels (IPC Based)
32Ch (requires supporting IPC)
Analytic Channels (NVR Based)
Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection + Recognition or Up to 6Ch Face Recognition (or their combinations)
Face Recognition Rate
18 Faces per second (6Ch supported)

Bandwidth

Incoming
192Mbps
Outgoing
192Mbps

Record/ Main Stream

Real-Time Recording
32CH 8MP Real-Time 12MP – 20FPS
Record Type
Video / Video + Audio
Recording Modes
Schedule, Manual, Motion, Sensor, Analytics, POS, and all combinations
16MP
N/A
12MP
640FPS(PAL/NTSC)
8MP
960FPS(NTSC)/800FPS(PAL)
5MP and lower
960FPS(NTSC)/800FPS(PAL)
Master stream over network
Up to 32CH@Recording resolution

Substream

Resolution substream
Depends on IPC

Remote view

Max Channel View
160Ch (Limited to Outgoing Bandwidth Capacity)

Remote Applications

User Access
128 Users online with Professional Autorithy Management
Mobile App
Provision Cam2 for iOS/Android
PC/Mac Software
Ossia VMS Standard / Enterprise
Plug-in free Web-Browser
Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View/Playback)
Plug-in based Web-Browser
Internet Exporer

Playback

Local
16Ch
Remote
32Ch on IE, 4Ch on H5
Search Mode
DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS

Backup

USB
2 USB 2.0 Port + 1 USB 3.0 Port
Backup Format
AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in
8+IPC
Alarm-out
4+IPC

Storage

HDD
2
E-Sata Support
No
RAID
N/A

PTZ

Connection
Via Network
Supported Controls
Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485
Yes (C06 Keyboard Connection)

Network

Ethernet
2×1000/100/10Mbps self-adaptive Ethernet interface
Protocols
TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF
Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports
N/A
Speed
N/A
Standard
N/A
CCTV Mode
N/A
Total Power
N/A
Max. Power Output (Per Ch.)
N/A

Others

Power Supply
DC12V/4A
Power consumption (No HDD)
20W
Dimension
380 × 268 × 48.1 mm
Operation Temperature
0°C~50°C



Register for Member Pricing

Download documents from the following links:

NVR12-32800FAN(1U)

Ossia NVR User Manual
