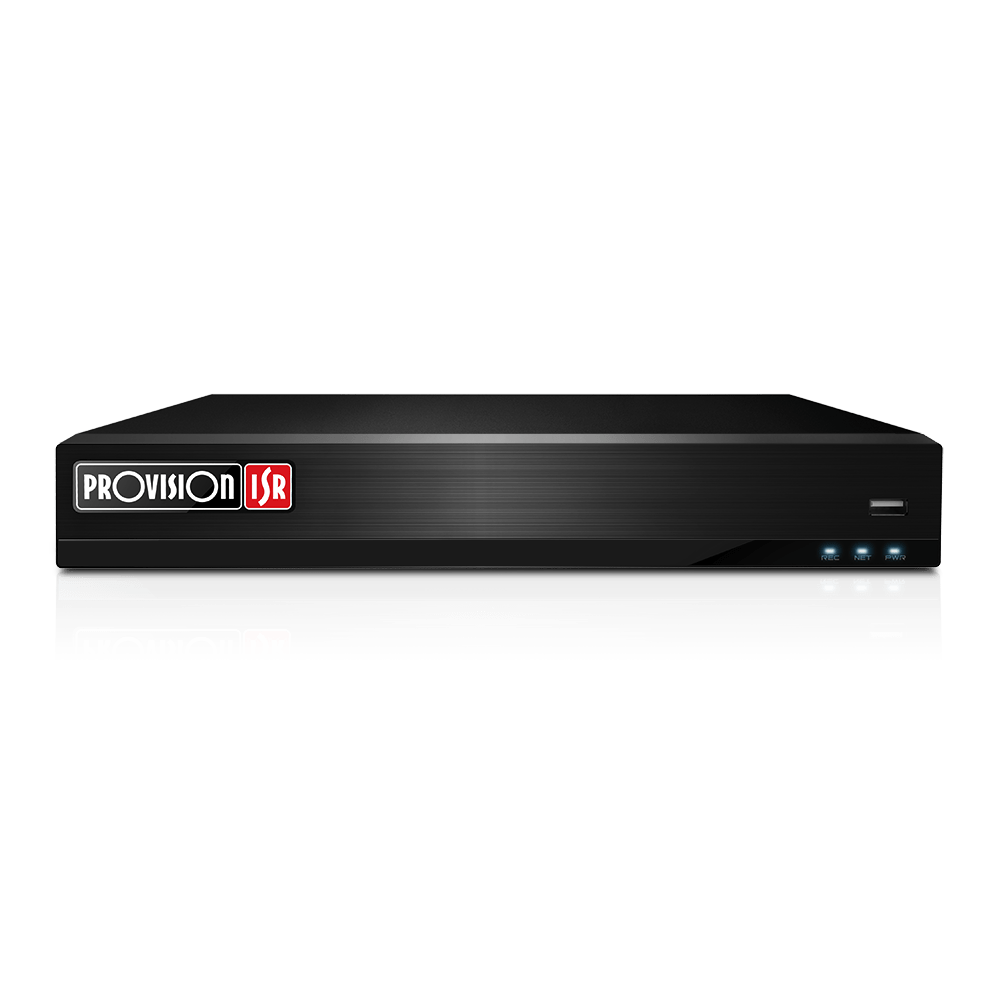

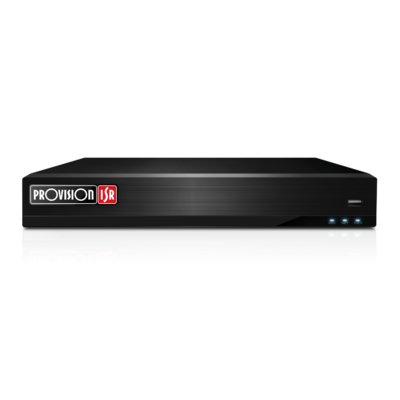

8CH 8MP Face Recognition NVR with Alarms No PoE - NVR8-8200FA
8CH 8MP Face Recognition NVR with Alarms No PoE - NVR8-8200FA
8CH 12MP,NDAA Compliant, Face Recognition NVR with Alarms No PoE - NVR12-8200FAN - Image 3

8CH 12MP,NDAA Compliant, Face Recognition NVR with Alarms No PoE – NVR12-8200FAN

Login, Register, or Call for Price

Register for Member Pricing

8 Channel (Via Network) • NDAA • Output: HDMI(4K)/VGA • Recording resolution – up to 12 Megapixels • Small 1U Case, 1 HDD • Audio In/Out • Alarm In/Out
SKU: NVR12-8200FAN Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Input: 8 Channel (Via Network) • NDAA Certified • Output: HDMI(4K)/VGA • Recording resolution – up to 12 Megapixels • Small 1U Case, 1 HDD • Audio In/Out • Alarm In/Out

Record 8 channels of up to 12MP with analytics – Face Recognition, Smart Search, Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.

Playback to 4K monitor in real time.

No PoE ports on this model and maximum of 80Mb/s incoming or outgoing stream.

Register for Member Pricing

Israeli made, professional, high quality security cameras for professional installations.  Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR12-8200FAN-features

NVR12-8200FAN Features

3rd Party Cyber Protection

General
N/A
Protection Methods
N/A

NDAA Compliant

NDAA Compliant
Yes

Video

Video Input
8Ch over Network
Output
HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)
View Mode
Mirrored
Fish-Eye Dewarp
Local + Web
Decoding Format
H.265 / H.265+ / H.265S / H.264
Decoding Capabilities
1Ch – 12MP ; 4Ch – 2MP ; 8CH – D1

Audio

Audio-specs-Input
1CH RCA (Linear, 1k?) + IPC inputs
audio-specs-Output
1CH RCA (2.0 Vp-p, 1 k?) + IPC outputs
Compression
G.711A/G.711U
Two Way Audio
Yes

Analytics

Supported Analytics
Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal. Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Analytics Channels (IPC Based)
8Ch (requires supporting IPC)
Analytic Channels (NVR Based)
Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection + Recognition or Up to 6Ch Face Recognition (or their combinations)
Face Recognition Rate
18 Faces per second (6Ch supported)

Bandwidth

Incoming
80Mbps
Outgoing
80Mbps

Record/ Main Stream

Real-Time Recording
8CH 8MP Real-Time 12MP – 20FPS
Record Type
Video / Video + Audio
Recording Modes
Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations
16MP
N/A
12MP
160FPS(PAL/NTSC)
8MP
240FPS(NTSC)/200FPS(PAL)
5MP and lower
240FPS(NTSC)/200FPS(PAL)
Master stream over network
Up to 12CH@Recording Resolution

Substream

Resolution substream
Depends on IPC

Remote view

Max Channel View
40Ch (Limited to outgoing Bandwidth Capacity)

Remote Applications

User Access
64 Users online with Professional Autorithy Management
Mobile App
Provision Cam2 for iOS/Android
PC/Mac Software
Ossia VMS Standard / Enterprise
Plug-in free Web-Browser
Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback)
Plug-in based Web-Browser
Internet Exporer

Playback

Local
8Ch
Remote
8Ch
Search Mode
DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS

Backup

USB
2 USB 2.0 Port + 1 USB 3.0 Port
Backup Format
AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in
8+IPC
Alarm-out
4+IPC

Storage

HDD
1
E-Sata Support
No
RAID
N/A

PTZ

Connection
via Network
Supported Controls
Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485
Yes (C06 Keyboard Connection)

Network

Ethernet
10/100Mbps self-adaptive Ethernet interface
Protocols
TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF
Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports
N/A
Speed
N/A
Standard
N/A
CCTV Mode
N/A
Total Power
N/A
Max. Power Output (Per Ch.)
N/A

Others

Power Supply
12VDC/2A
Power consumption (No HDD)
20W
Dimension
W300xD250xH50mm
Operation Temperature
0°C~50°C



Register for Member Pricing

Documents

NVR12-8200FAN

Ossia NVR User Manual

Register for Member Pricing

Software:

Latest CMS Version
