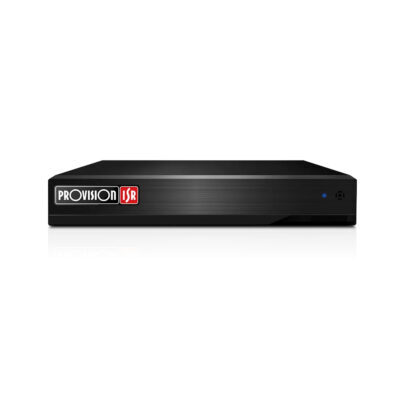

8CH 5MP NVR NDAA, PoE – NVR5-8200PXN(MM)

Login, Register, or Call for Price

NVR-5 8 Channel (Via PoE / Network) • NDAA Compliant • Output: HDMI(1080p)/VGA • Recording resolution – up to 5 Megapixels • Small Metal Case, 1 HDD up to 6TB (No HDD Installed) • 100Mbps Network

SKU: NVR5-8200PXN(MM) Category: Provision-ISR NVR

Free Shipping for orders over $600 (AU Only)*

Brand: Provision-ISR

Description

Input: 8 Channel (Via PoE / Network) • Output: HDMI/VGA (1080P, 1280×1024, 1024×768) • Recording resolution – up to 5 Megapixels • Mini Metal Case, 1 HDD up to 6TB (not installed) • 100Mbps Network

This is a High Performance NVR capable of recoding cameras up to 5MP. Record 8 channels of up to 5MP with analytics – Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.

Playback to HD monitor in real time.

PoE ports are included on this model and maximum of 64Mb/s incoming or outgoing stream. Camera streams are added via LAN port (cameras require separate power) or PoE ports on NVR.

Install a surveillance grade Hard Disk Drive up to 6TB.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR5-8200PX+(MM) Features

3rd Party Cyber Protection

General

N/A

Protection Methods

N/A

NDAA Compliant

Yes

Video

Video Input

8Ch over Network / PoE direct connection

Output

HDMI / VGA (1080P, 1280×1024, 1024×768)

View Mode

Mirrored

Fish-Eye Dewarp

Web Only

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 5MP ; 4Ch – 1080P

Audio

Audio-specs-Input

Based on IPC only

audio-specs-Output

Based on IPC only

Compression

G.711A/G.711U

Two Way Audio

Analytics

Supported Analytics

Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR, Thermal (Limited Support) *DDA/LPR Analytics Live Snapshots are not supported

Analytics Channels (IPC Based)

8Ch (requires supporting IPC)

Analytic Channels (NVR Based)

N/A

Face Recognition Rate

N/A

Bandwidth

Incoming

64Mbps

Outgoing

64Mbps

Record/ Main Stream

Real-Time Recording

8CH 5MP Real-Time

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations

16MP

N/A

12MP

N/A

8MP

N/A

5MP and lower

240FPS(NTSC)/200FPS(PAL)

Master stream over network

Up to 8CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

40Ch (Limited to outgoing Bandwidth Capacity)

Remote Applications

User Access

64 Users online with Professional Autorithy Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera (All Limited to 4Ch Live View / Playback)

Plug-in based Web-Browser

Internet Exporer

Playback

Local

8Ch

Remote

8Ch on IE, 4Ch on H5

Search Mode

DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

Based on IPC only

Alarm-out

Based on IPC only

Storage

HDD

E-Sata Support

RAID

N/A

PTZ

Connection

via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

N/A

Network

Ethernet

10/100Mbps self-adaptive Ethernet interface

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports

8xRJ45

Speed

10/100Mbps (10Mbps under CCTV Mode)

Standard

IEEE802.3AF/AT

CCTV Mode

Yes (Up to 200m and 10Mbps bandwidth)

Total Power

72W (Average 9W per Channel)

Max. Power Output (Per Ch.)

~12W*

Others

Power Supply

DC48V/1.25A

Power consumption (No HDD)

Dimension

W255xD220xH45mm

Operation Temperature

0°C~50°C

Documents

Software:

Input: 8 Channel (Via PoE / Network) • Output: HDMI/VGA (1080P, 1280×1024, 1024×768) • Recording resolution – up to 5 Megapixels • Mini Metal Case, 1 HDD up to 6TB (not installed) • 100Mbps Network

This is a High Performance NVR capable of recoding cameras up to 5MP. Record 8 channels of up to 5MP with analytics – Camera Tampering, Line Crossing, Sterile Area, Object Monitoring.

Playback to HD monitor in real time.

PoE ports are included on this model and maximum of 64Mb/s incoming or outgoing stream. Camera streams are added via LAN port (cameras require separate power) or PoE ports on NVR.

Install a surveillance grade Hard Disk Drive up to 6TB.

Israeli made, professional, high quality security cameras for professional installations. Please contact us for a quote to purchase Provision-ISR or register for a trade account to access pricing.

NVR5-8200PX+(MM) Features

3rd Party Cyber Protection

General

N/A

Protection Methods

N/A

NDAA Compliant

Yes

Video

Video Input

8Ch over Network / PoE direct connection

Output

HDMI / VGA (1080P, 1280×1024, 1024×768)

View Mode

Mirrored

Fish-Eye Dewarp

Web Only

Decoding Format

H.265 / H.265+ / H.265S / H.264

Decoding Capabilities

1Ch – 5MP ; 4Ch – 1080P

Audio

Audio-specs-Input

Based on IPC only

audio-specs-Output

Based on IPC only

Compression

G.711A/G.711U

Two Way Audio

Analytics

Supported Analytics

Analytics Channels (IPC Based)

8Ch (requires supporting IPC)

Analytic Channels (NVR Based)

N/A

Face Recognition Rate

N/A

Bandwidth

Incoming

64Mbps

Outgoing

64Mbps

Record/ Main Stream

Real-Time Recording

8CH 5MP Real-Time

Record Type

Video / Video + Audio

Recording Modes

Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations

16MP

N/A

12MP

N/A

8MP

N/A

5MP and lower

240FPS(NTSC)/200FPS(PAL)

Master stream over network

Up to 8CH@Recording Resolution

Substream

Resolution substream

Depends on IPC

Remote view

Max Channel View

40Ch (Limited to outgoing Bandwidth Capacity)

Remote Applications

User Access

64 Users online with Professional Autorithy Management

Mobile App

Provision Cam2 for iOS/Android

PC/Mac Software

Ossia VMS Standard / Enterprise

Plug-in free Web-Browser

Chrome, FireFox, Safari, Edge, Opera (All Limited to 4Ch Live View / Playback)

Plug-in based Web-Browser

Internet Exporer

Playback

Local

8Ch

Remote

8Ch on IE, 4Ch on H5

Search Mode

DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS

Backup

USB

2 USB 2.0 Port

Backup Format

AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)

Alarm

Alarm-in

Based on IPC only

Alarm-out

Based on IPC only

Storage

HDD

E-Sata Support

RAID

N/A

PTZ

Connection

via Network

Supported Controls

Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus

RS-485

N/A

Network

Ethernet

10/100Mbps self-adaptive Ethernet interface

Protocols

TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)

ONVIF

Full Device Support (Profile T/G, ONVIF Version 20.12)

PoE

PoE Ports

8xRJ45

Speed

10/100Mbps (10Mbps under CCTV Mode)

Standard

IEEE802.3AF/AT

CCTV Mode

Yes (Up to 200m and 10Mbps bandwidth)

Total Power

72W (Average 9W per Channel)

Max. Power Output (Per Ch.)

~12W*

Others

Power Supply

DC48V/1.25A

Power consumption (No HDD)

Dimension

W255xD220xH45mm

Operation Temperature

0°C~50°C
