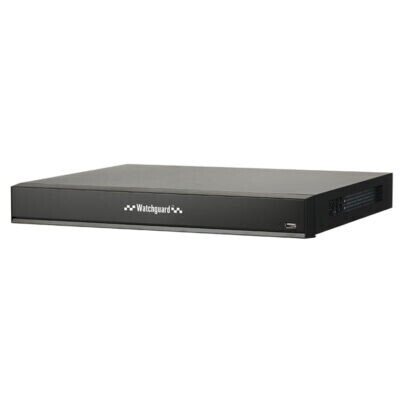

Compact AI 16 Channel Network Video Recorder
Sale!

Compact AI Series 16CH PoE NVR with 2 x HDD Bays

Original price was: $725.00.Current price is: $625.20.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $156.30
Compact AI 16 Channel Network Video Recorder

Add to wishlist

SKU: NVR16COM-I Categories: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The NVR16COM-I offers advanced technologies to transform the way surveillance works for you. Monitor your operations with greater efficiency, security & reliability using intelligent face recognition, people/vehicle identification & more. Identify strangers & VIPs, create blacklists, search footage playback and receive intelligent alerts to your devices for highly reliable security notifications.

Product features:

  • Record beyond Ultra HD up to 16.0MP (4920 x 3264)
  • 200Mbps incoming bandwidth (80Mbps with AI)
  • 2 x SATA ports for up to 20TB HDD storage
  • Built in PoE switch (ePoE & EoC support for ports 1-8)
  • Native Ultra HD live view on 4K monitors via HDMI
  • Perimeter protection for up to 4 channels for accurate vehicle and people detection
  • Identify people with 2 channels for face recognition
  • AI face searching for up to 8 faces at once (12 faces/sec)
  • Receive face recognition & perimeter alerts on device(s)

Specification

Register for Member Pricing

GENERAL

Interoperability
ONVIF 2.4, SDK,CGI

Main Processor
Multi-core Embedded Processor

Operating System
Embedded Linux OS

Two-way Talk
1 Channel Input, 1 Channel Output, RCA

Video Input
16 Channels

DISPLAY

Display Resolution
Configurable from 3840 x 2160 to 1024 x 768

Display Split
1/4/8/9/16

OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Output
1 x HDMI, 1 x VGA

RECORDING

Decoding Capacity
2 channel: 8.0MP (30fps) / 8 channel: 1080p (30fps)

Incoming Bandwidth
200Mbps (80Mbps when AI function is enabled)

Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s

Record Modes
Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)

Recording Resolution
Configurable from: 16.0MP (4920 x 3264) to D1 (704 x 480)

Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Register for Member Pricing

FACE RECOGNITION

AI Search (Face Recognition)
Up to 8 target face images at the same time

Database Application
Each database can be applied to video channels independently

Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture

Performance (Face Recognition)
Max. 12 face pictures per second (modeling and comparing)

Stranger Mode
Detect strangers face (not in database)

Trigger Events (Face Recognition)
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.

PERIMETER PROTECTION

AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)

Object Classification
Human / vehicle secondary recognition for tripwire and intrusion

Performance (Perimeter Protection)
4 Channels, 10 IVS rules for each Channel

METADATA

AI Search (Metadata)
Support search target video by metadata

Face
Gender, age, glasses, beard, mask

Human Body
Tops style, tops colour, bottom style, bottom colour, hat , bag

Non-motor Vehicle
Type, colour, people, number

Vehicle
Vehicle colour, vehicle model, vehicle logo, plate colour, vehicle decorations, call, seatbelt

Register for Member Pricing

FEATURES

Alarm Input / Output
4 channel alarm inputs / 2 channel relay output

Backup Modes
USB Device / Network

Playback Sync
1/4/9/16

Search Modes
Time / Date, Alarm, MD & Exact Search (to the second)

Trigger Events
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.

Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering & Scene Change

NETWORK

Ethernet
1 RJ45 Ports (10/100/1000Mbps)

Max. User Access
128 users

Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Center, IP Search (Support IP camera, DVR, NVS, etc.), P2P

Optical Interface
N/A

Power over Ethernet
16 Ports (IEE802.3af/at), 1-8 Ports Support ePoE & EoC

Remote View
IOS (iPhone,iPad), Android Devices

STORAGE

Auxiliary Inputs
1 x RS232

HDD Modes
N/A

Internal HDD
2 x SATA III Ports up to 10TB, max. 20TB HDD capacity

USB Interface
2 x USB Ports (1 x Rear USB 3.0, 1 x Front USB 2.0)

Register for Member Pricing

ENVIRONMENT

Dimensions
375 x 327 x 53mm

Operating Environment
-10°C ~ +55°C / 0 ~ 90%RH / 86 ~ 106kpa

PoE
Max 25.5W for single port, 130W total

Power Consumption
<6.1W (without HDD)

Power Supply
Single, 100V~240VAC, 3.5A

Rackmount Units
1U

Rackmountable
Yes

Weight
2.68kg (without HDD)

OTHER

ePoE Range
300m (100Mbps, 25.5W), 800m (10Mbps, 13W)

Warranty (years)
4



Register for Member Pricing
