Shop » Products » IP CCTV » VIP Vision / Watchguard » CCTV Cameras » Bullet » Professional AI Series 4.0MP Wide-Angle Bullet

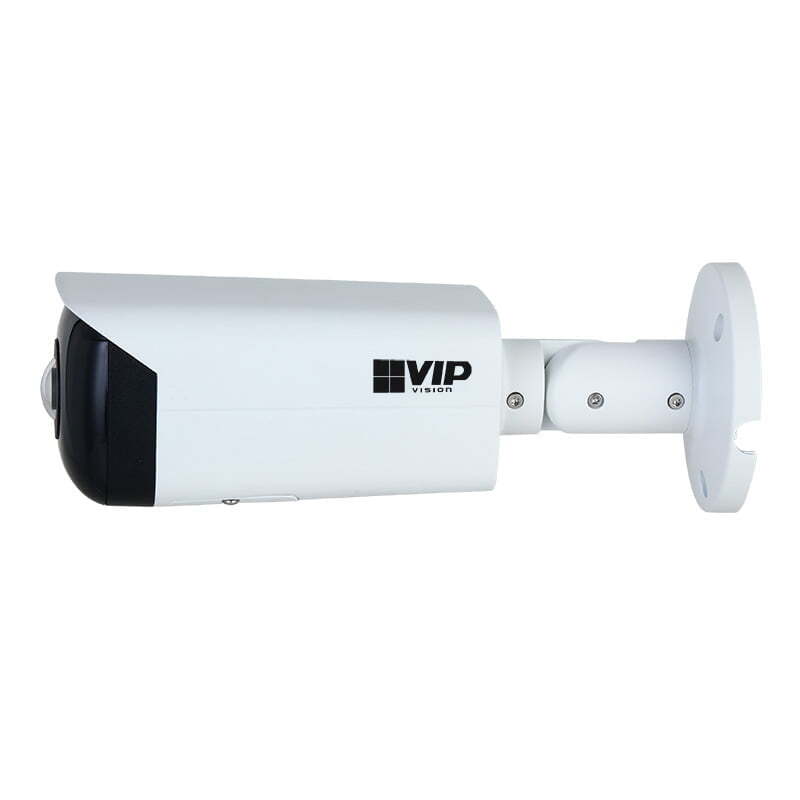

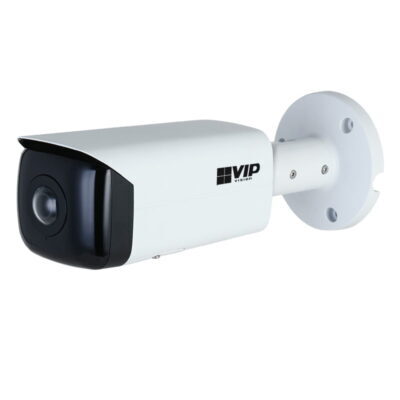

Professional AI Series 4.0MP Wide-Angle Bullet
Sale!
Professional AI Series 4.0MP Wide-Angle Bullet
Professional AI Series 4.0MP Wide-Angle Bullet
Professional AI Series 4.0MP Wide-Angle Bullet
Professional AI Series 4.0MP Wide-Angle Bullet
Professional AI Series 4.0MP Wide-Angle Bullet

Professional AI Series 4.0MP Wide-Angle Bullet

Original price was: $271.70.Current price is: $238.05.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $59.51
Professional AI Series 4.0MP Wide-Angle Bullet

SKU: VSIPP-4BIRW-I Categories: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Applying machine-learned algorithms, this Professional AI VSIPP-4BIRW-I camera features intelligent Perimeter Protection and delivers superb image performance with low light colour and a wide-angle lens. The lens provides a panoramic 180° view that can replace multiple cameras in a CCTV system. Perfect for reducing time on installations!

• Stream up to 4.0MP (2880 x 1620) at 25fps
• 2.1mm panoramic lens for 170° field of view (Lens Distortion Control enabled; 180° when disabled)
• Back/highlight compensation & true WDR (120dB)
• 20m infrared range & virtual PTZ control
• Starlight sensor for superb low-light performance
• Intelligent AI detection to identify people & vehicles
• Smart Motion Detection (SMD+) & Perimeter Protection for AI alerts and to prevent false alarms
• MicroSD slot for recording at the edge up to 256GB
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• Power via 12VDC or Power over Ethernet (802.3at)

Specifications

Camera
Image Sensor
1/2.7″ CMOS
Max. Resolution
5.0 Megapixel
Effective Pixels
2880 (H) x 1620 (V)
RAM / ROM
512 MB/128 MB
Min Illumination
0.01 Lux / F1.6 (Color), 0.001 lux / F2.0 (B/W, 30 IRE), 0 lux (IR on)
S/N Ratio
>56 dB
Infrared System
2 x Infrared LED, 20m range, Auto/manual on/off control
Lens
Lens Type
Fixed Focal
Lens / Iris
2.1mm F2.0 Fixed Focal Lens
Field of View
180°
Focus
0.6m Min. Focus Distance
DORI
Detect (25px/m)
52.0 m
Observe (63px/m)
20.8 m
Recognise (125px/m)
10.4 m
Identify (250px/m)
5.2 m
Video
Resolution
5.0 MP (2880 x 1620) / 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
5.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG
Bit Rate
H.264/H.265: 3 kbps–8192 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 1,000 mA 30V DC or 500mA 50V DC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12 VDC/PoE
Power Consumption
<6.5W
Operating Conditions
-40°C ~ +60°C, ?95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
ePoE
No

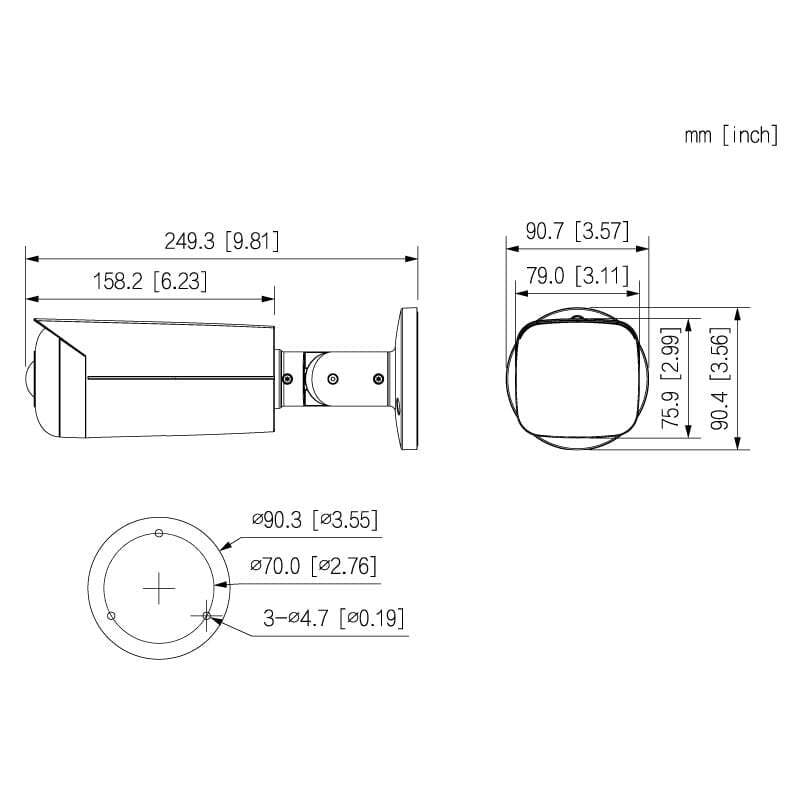

Dimensions
249.3 mm × 90.7 mm × 90.4 mm
Net Weight
820 g
Warranty (Years)
4



Register for Member Pricing

Documents

Download documents from the following links:

VIP Vision Professional AI VSIPP-4BIRW-I Datasheet.pdf
