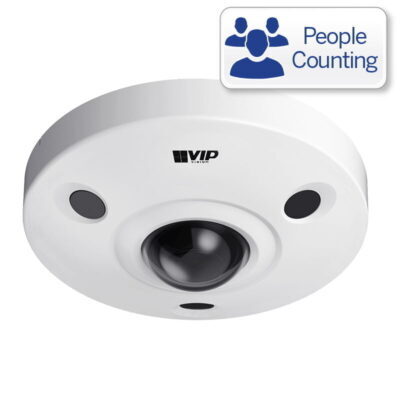

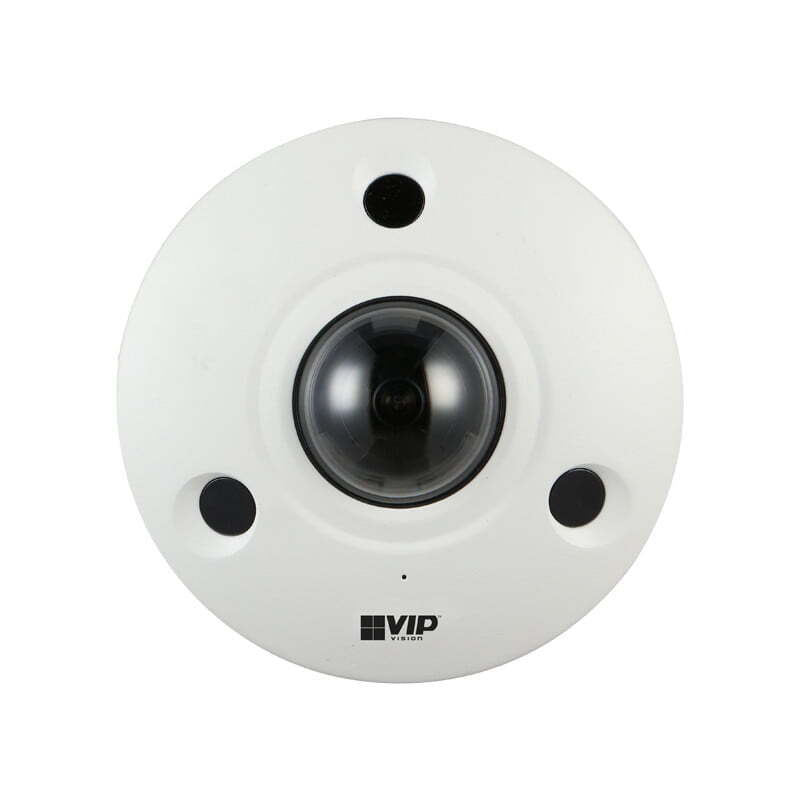

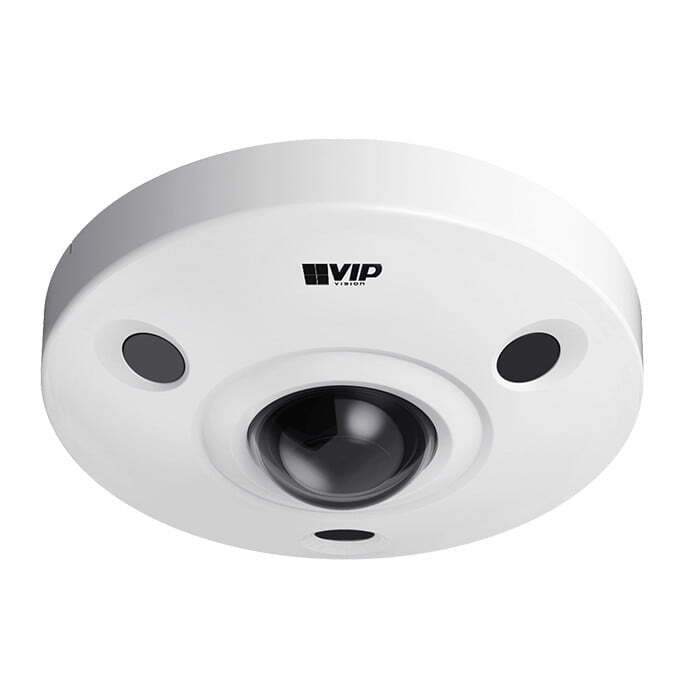

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome
Sale!
Specialist AI Series 12.0MP People Counting 360° Fisheye Dome - Image 2
Specialist AI Series 12.0MP People Counting 360° Fisheye Dome - Image 3
Specialist AI Series 12.0MP People Counting 360° Fisheye Dome - Image 4
Specialist AI Series 12.0MP People Counting 360° Fisheye Dome - Image 5
Specialist AI Series 12.0MP People Counting 360° Fisheye Dome - Image 6
Specialist AI Series 12.0MP People Counting 360° Fisheye Dome - Image 7

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

Original price was: $1,408.55.Current price is: $1,234.11.

Register for Member Pricing

4 Interest Free Payments of $308.53

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

SKU: VSIPFE-12IR-I Categories: , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPFE-12IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting, queue management and heat mapping. Receive alerts when a certain number of people enter an area with queue management or set up heat map to observe the amount of time spent in areas.

Camera features:

  • Stream up to 12.0MP (4000 x 3000) at 25fps
  • Circular fisheye lens with 360° viewing angle

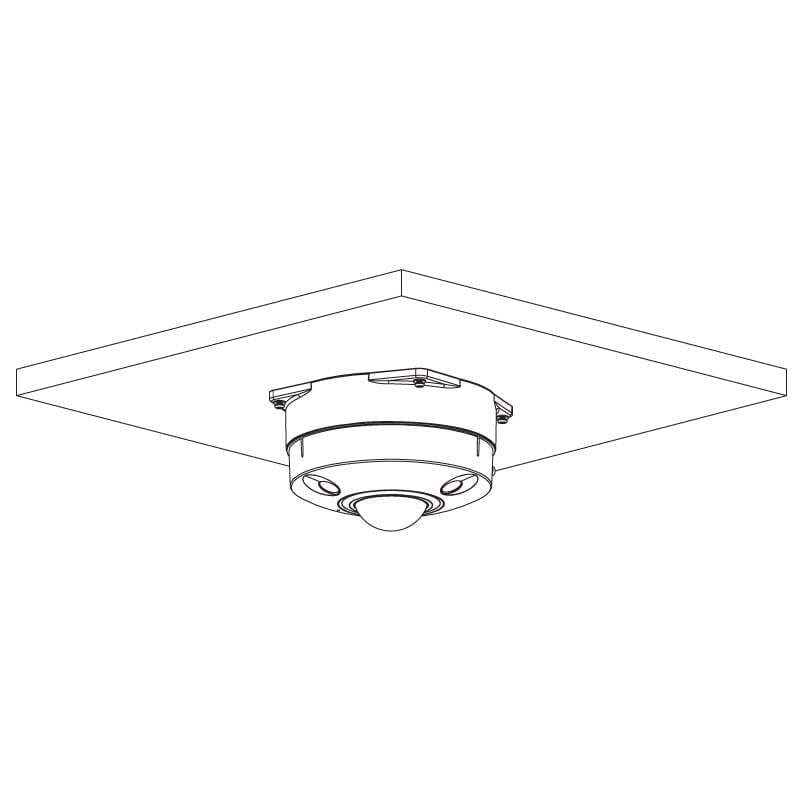

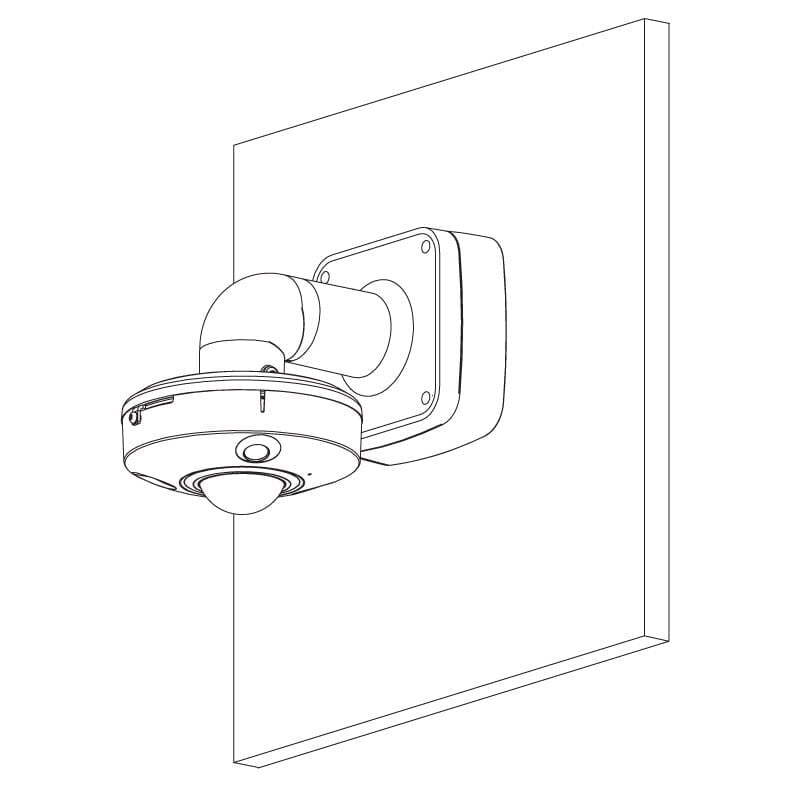

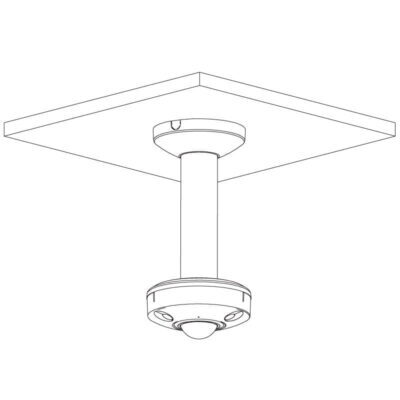

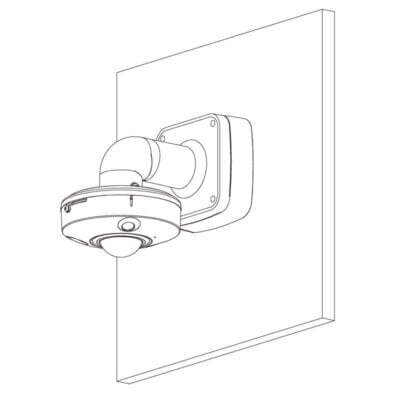

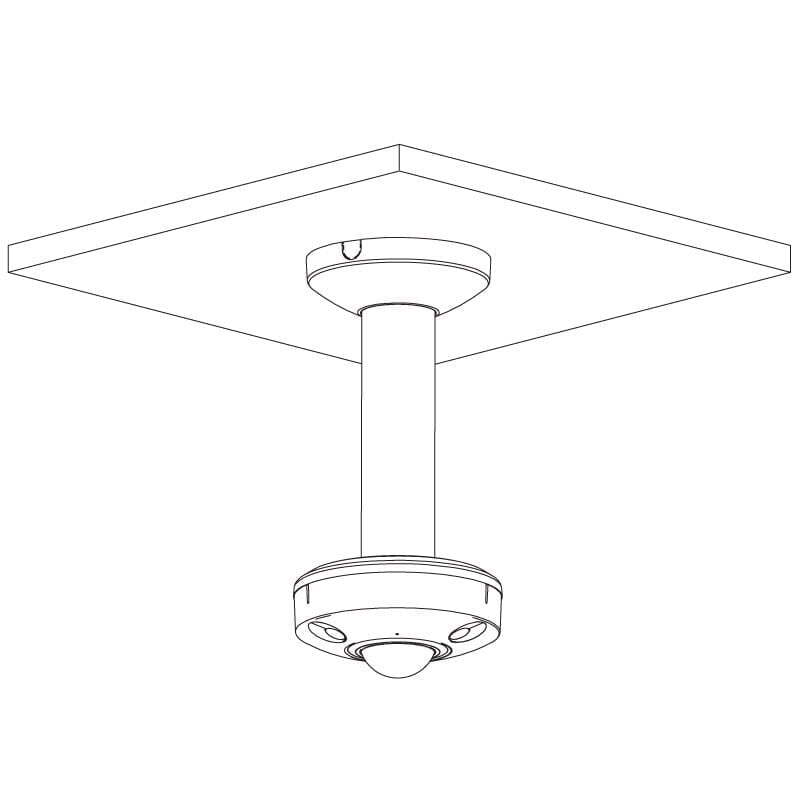

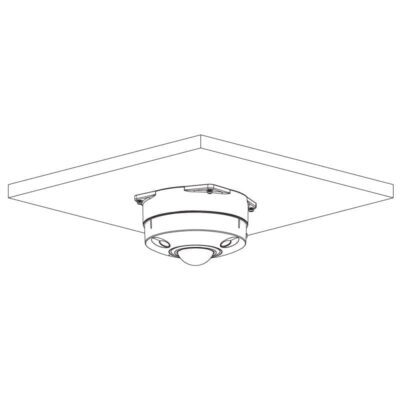

  • Dewarp modes* for ceiling, floor & wall mounting
  • Virtual PTZ, panorama, & camera split dewarp modes
  • Up to 10m infrared range; true day/night (auto ICR)
  • Set up AI-enchanced people tracking for real-time alerts, statistics and business analytics
  • Heat map, queue management & regions of interest
  • MicroSD card slot for edge recording up to 128GB
  • IP67 weather & IK10 vandal resistant housing

DORI Distance

Register for Member Pricing

Detect (25px/m)
40m

Observe (63px/m)
16m

Recognise (125px/m)
8m

Identify (250px/m)
4m

Specification

Alarm Interface
2 Channel Input / 2 Channels Output

Audio Interface
1 Channel Input (RCA), 1 Built-in Mic / 1 Channel Output / Audio Compression: G.711A, G.711Mu, G726, AAC

Bit Rate
H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night
N/A

Dewarping Modes
Original (no dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split

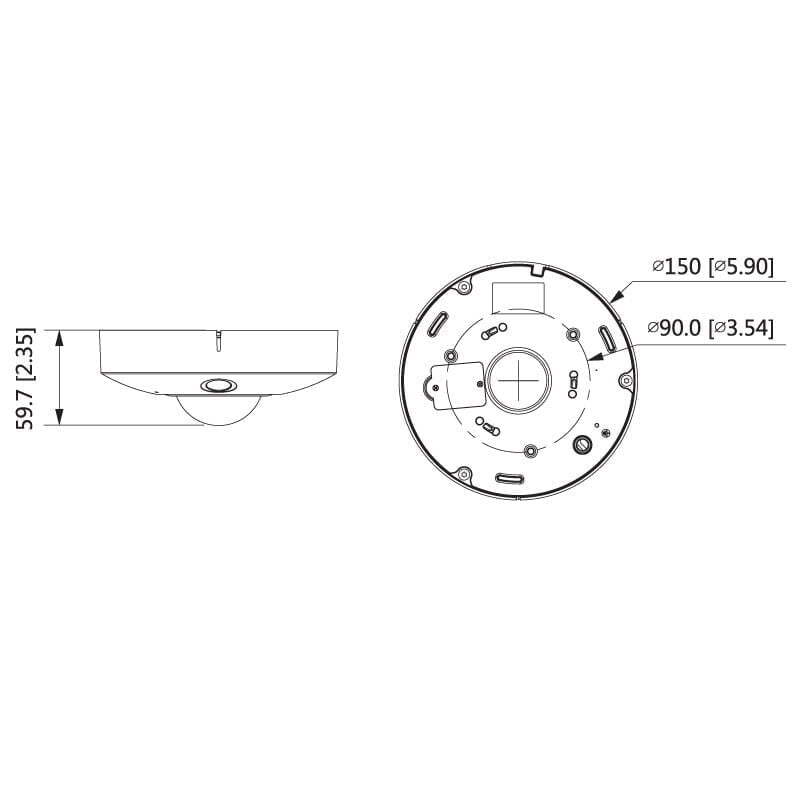

Dimensions
Ø150mm x 60mm

Edge Storage
MicroSD Card (up to 256GB) / FTP

Effective Pixels
4000 (H) x 3000 (V)

Ethernet
RJ-45 (10/100Base-T)

Field of View
Horizontal: 185°, Vertical: 180°

Focus
Fixed

Frame Rate (Main)
12.0MP (1 ~ 25fps)

Frame Rate (Sub)
D1 (1 ~ 25fps)

Frame Rate (Third)
D1 (1 ~ 25fps)

Gain Control
Manual

Housing
Metal, Plastic

Image Sensor
1/1.7″ 12.0MP Progressive Scan CMOS

Infrared System
3 x Infrared LED, 10m range

Ingress Protection
IP67

Intelligent Functions
Intrusion, Tripwire, Region of Interest (4 zones), Privacy Masking (4 zones) Smart Infrared, Heat Map

Interoperability
ONVIF (Profile S / Profile G), GB/T28181, CGI

Lens / Iris
1.85mm F2.0 Fixed Focal Lens with Fixed Aperture

Lighting Compensation
DWDR

Max. User Access
20 Users

Min Illumination
0.001 Lux/F2.0 (colour 1/3s), 0.01 Lux/F2.0 (colour 1/30s), 0 Lux/F2.0 (IR on)

Net Weight
0.77kg

Noise Reduction
3D DNR

Operating Conditions
-30°C to +45°C, ?95% RH

Pan/Tilt/Rotation
N/A

People Counting
Queue Management (Triggers alarm when designated amount of people enters zone, 4 zones), Heat Mapping (Number of people and time spent)

Power Consumption
<9.2W (12VDC) / <12.9W (PoE)

Power Supply
12VDC / PoE

Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP

RAM / ROM
4GB / 4GB

Resolution
12.0MP (4000 x 3000) to CIF (352 x 288)

RS485
N/A

S/N Ratio
49.7dB

Series
Specialty AI Series Cameras

Streaming Method
Unicast / Multicast

Vandal Resistance
IK10

Video Compression
H.265, H.264, H.264H, H.264B, MJPEG

Video Interface
N/A

White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Warranty (years)
4



Register for Member Pricing

Download documents from the following links:

VIP_Vision_Specialist_AI_People_Counting_Fisheye_Datasheet_PDF

VIP Vision Specialist AI People Counting Fisheye Quick Start Guide (PDF)

Register for Member Pricing

Network Camera Web 3.0 Operation Manual V2.0.5
