Shop » Products » IP CCTV » VIP Vision / Watchguard » CCTV Cameras » PTZ » Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Sale!
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera
Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera

Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera

Original price was: $1,165.45.Current price is: $1,021.12.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $255.28

Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera

Add to wishlist

SKU: VSIPPTZ-2IRW-I Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Experience clear large-scale surveillance, the VSIPPTZ-2IRW-I combines the flexibility and coverage of PTZ with the power of smart AI technology. Featuring Perimeter Protection, this PTZ can identify people & vehicles during motion detection to prevent false alarms, providing reliable real-time alerts and analytics.

Camera features:

  • Stream up to 2.0MP (1920 x 1080) at 50fps
  • 25x optical zoom lens (59.2° ~ 2.4° viewing angles)
  • Low light colour performance at 0.005lx; 150m IR
  • Auto tracking with intelligent video functions

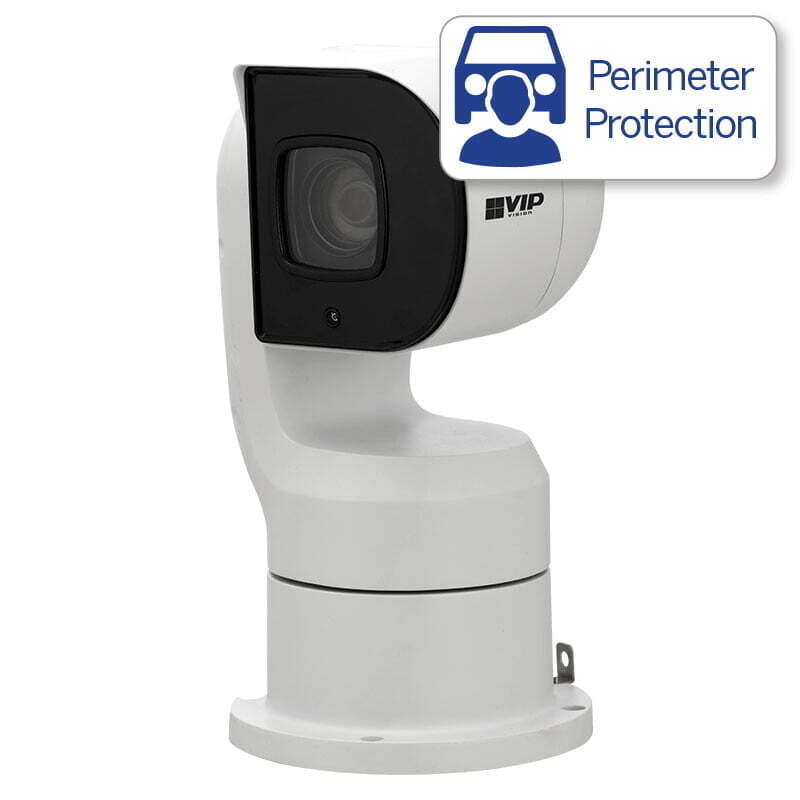

  • Perimeter Protection to identify people & vehicles
  • Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
  • MicroSD slot for recording at the edge up to 256GB
  • Supports Power over Ethernet (802.3af) or 24VAC
  • IP67 weather rated & lightning proof housing

Specification

Register for Member Pricing

Alarm Interface
2 Inputs / 1 Output / Alarm Linkage: Capture; Preset; Tour; Pattern; SD Card Record; Trigger Digital Output; Client Electronic Map; Send Email

Audio Interface
1 Input, 1 Output / Supports Two-way Audio / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723

Auto Tracking
Support

Bit Rate
H.264 / H.265: 3 ~ 20480Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night
Auto (ICR) / Color / B&W

DORI Distance

Detect (25px/m)
1655m

Observe (63px/m)
657m

Recognise (125px/m)
331m

Identify (250px/m)
166m

Digital Zoom
16x

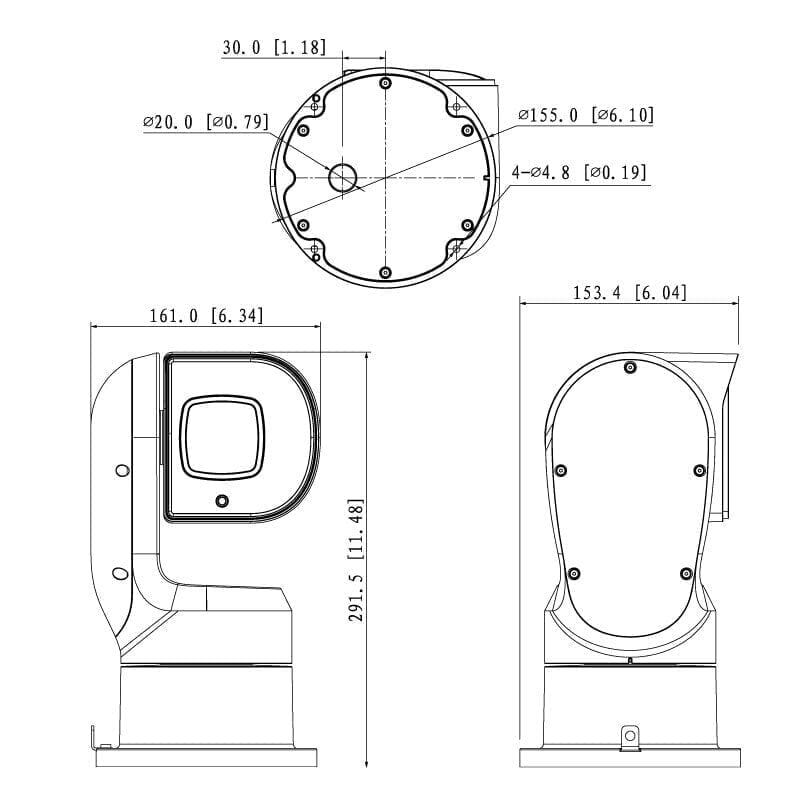

Dimensions
161mm x 135mm x 292mm

Edge Storage
MicroSD Card (up to 256GB) / FTP / NAS

Effective Pixels
1920 (H) x 1080 (V)

Ethernet
RJ-45 (10Base-T/100Base-TX)

Event Triggers
Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Face Capture
N/A

Face Recognition
N/A

Field of View
Horizontal: 61~2.8°, Vertical: 33.2°~1.7° (25x Optical Zoom)

Focus
Auto/Semi-Auto/Manual / 0.1 ~ 1.5m Min. Focus Distance

Frame Rate (Main)
1080p (1 ~ 50fps)

Frame Rate (Sub)
D1/CIF (1 ~ 50fps)

Frame Rate (Third)
1080p to CIF (1 ~ 50fps)

Gain Control
Auto / Manual

Heat Map
N/A

Housing
Metal

Image Sensor
1/2.8” 2.0MP Progressive Scan CMOS

Image Stabilisation
Support

Infrared System
4 x Infrared LED, 150m range, Zoom Prio / Manual / OFF on/off control

Ingress Protection
IP67

Interoperability
ONVIF (Profile S/ Profile G) / CGI

IVS Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog

Lens / Iris
4.8 ~ 120mm F1.6 ~ F3.5 Motorised Lens with Auto Iris

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. User Access
20 Users

Metadata
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

Min Illumination
0.005 Lux/F1.6 (Color), 0.0005 Lux/ F1.6 (B/W), 0 Lux (IR on)

Modes / Presets
Up to 300 presets / 8 tour

Net Weight
3.6kg

Noise Reduction
2D / 3D

Operating Conditions
-40° ~ +70° C / ?95% RH

Optical Defog
Support

Pan / Tilt Range
Pan: 0 ~ 360° / Tilt: -90 ~ 90°

Pan/Tilt/Rotation
N/A

People Counting
N/A

Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection

Picture Control
Flip 180°

Power Consumption
<14W / <23W (IR on, PTZ operations)

Power Supply
12VDC 4A ± 10%/ PoE (802.3af)

Privacy Masking
Up to 24 areas, and up to 8 areas in the same view

Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP

PTZ Speed
Preset: Pan: 160°/s; Tilt: 110°/s Manual: Pan: 0.1° ~ 120°/s; Tilt: 0.1° ~ 75°/s

RAM / ROM
1GB / 4GB

Region of Interest
Support

Resolution
1080p (1920 x 1080) to CIF (352 x 288)

RS485
N/A

S/N Ratio
>55dB

Series
Specialty AI Series Cameras

Start-up Action
Auto-restore to previous PTZ/lens status

Streaming Method
Unicast / Multicast

Surge Protection
TVS 8000V Lightning Proof / Surge Protection / Voltage Transient Protection

Vandal Resistance
N/A

Video Compression
H.265; H.264; H.264B; H.264H; MJPEG (Sub Stream); H.265+; H.264+

Video Interface
N/A

White Balance
Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light / Street Lamp

Warranty (years)
4



Documents

Download documents from the following links:

VIP_Vision_Professional_AI_PTZ_Positioning_Camera_Datasheet_PDF

VIP Vision PTZ Positioning Camera Installation Manual (PDF)
