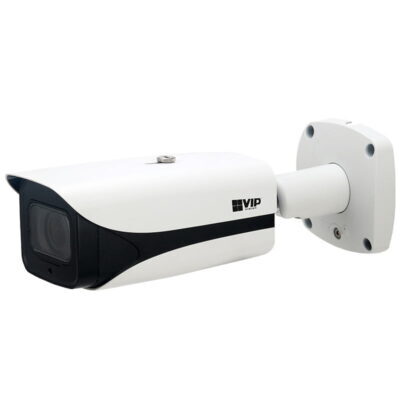

Ultimate AI Series 4.0MP Motorised Bullet
Sale!
Ultimate AI Series 4.0MP Motorised Bullet
Ultimate AI Series 4.0MP Motorised Bullet
Ultimate AI Series 4.0MP Motorised Bullet
Ultimate AI Series 4.0MP Motorised Bullet
Ultimate AI Series 4.0MP Motorised Bullet

Ultimate AI Series 4.0MP Motorised Bullet

Original price was: $607.75.Current price is: $512.38.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $128.10

Ultimate AI Series 4.0MP Motorised Bullet

SKU: VSIPU-4BIRM-I Category: Tags: , , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Applying a deep learning algorithm, the VSIPU-4BIRM-I detects and captures both faces and vehicles to use in face recognition, intelligent searching and perimeter protection, all while delivering superb image performance with low light colour and automatic image adjustment.

Camera features:

  • Stream up to 4.0MP (2688 x 1520) at 25fps
  • 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
  • H.265 encoding for efficient storage & streaming
  • Up to 60m infrared range; true day/night (auto ICR)
  • MicroSD slot for recording at the edge up to 256GB
  • Up to 10 channels of face recognition with an AI NVR
  • Detect faces and receive face alerts in real time
  • Search footage by face image or by facial attributes
  • Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
  • Extend PoE up to 800m (requires ePoE NVR/switch)

Specification

Register for Member Pricing

Alarm Interface
2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC

Audio Interface
1 input (RCA Port) / 1 output (RAC Port) / Audio Compression: G.711a; G.711Mu; G726; G.723

Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night
Auto (ICR) / Color / B&W

Detect (25px/m)
58m (wide) / 131m (tele)

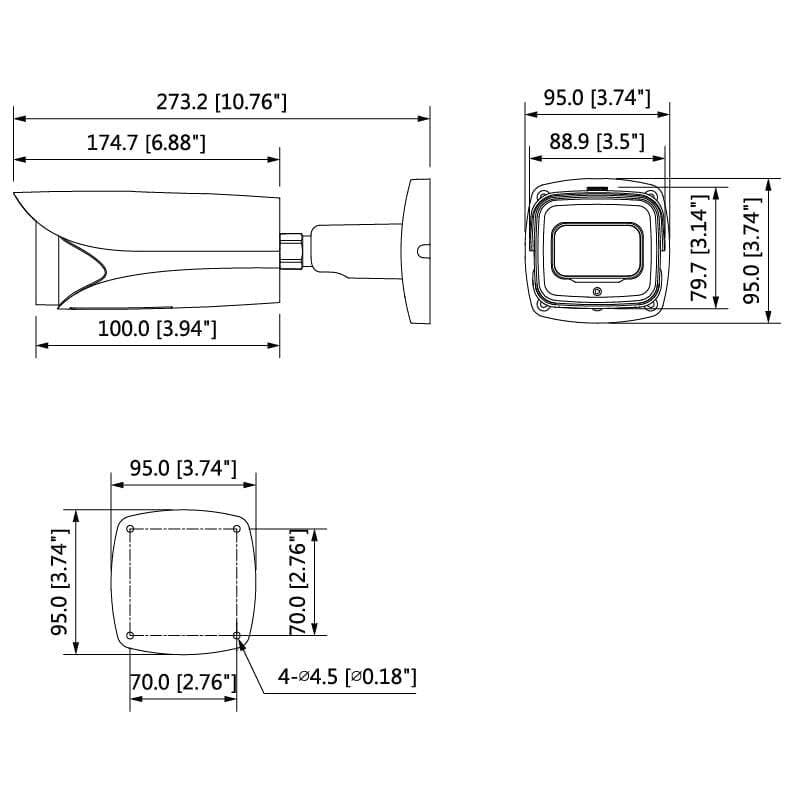

Dimensions
273mm x 95mm x 95mm

Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP

Effective Pixels
2688 (H) x 1520 (V)

Ethernet
RJ-45 (10/100Base-T)

Event Trigger
Motion detection, Video tampering , Scene changing, Network Disconnection , IP address conflict, Illegal Access, Storage anomaly

Face Attributes
Age, gender, expression, glasses, mouth mask and facial hair

Face Detection
Face image recognition and detection up to 10 channels with AI NVR

Field of View
Horizontal: 114°~47°, Vertical: 62°~26°

Focus
Auto Focus / 1.2m Min. Focus Distance

Frame Rate (Main)
4.0MP (1 ~ 25fps) / 3.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)

Frame Rate (Sub)
D1 (1 ~ 50fps)

Frame Rate (Third)
1080p (1 ~ 16fps)

Gain Control
Auto / Manual

Heat Map
Yes

Housing
Metal, Plastic

Identify (250px/m)
6m (wide) / 13m (tele)

Image Sensor
1/1.8’’ 4.0MP Progressive Scan CMOS

Infrared System
4 x Infrared LED, 50m range, Auto/manual on/off control

Ingress Protection
IP67

Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object

Intelligent Search
With a smart NVR intelligent search. Search tripwire / intrusion events by people or vehicle. Or search footage by face image and face attributes

Interoperability
ONVIF / P2P / CGI / Milestone / Genetec

Lens / Iris
2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. User Access
20 Users

Min Illumination
0.003 Lux / F1.8 (Color)

Net Weight
1.11kg

Noise Reduction
3D DNR

Observe (63px/m)
23m (wide) / 52m (tele)

Operating Conditions
-40°C ~ +60°C, ?95% RH

Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°

People Counting
Supports line crossing/region/queuing people counting. 4 independent access detection / 4 dependent access detection

Perimeter Protection
Tripwire, Intrusion (Human/Vehicle Recognition), Fast Movement Detection, Loitering Detection, Parking and Gathering Detection

Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (8.0MP supports 90° & 270° at 1080p resolution)

Power Consumption
<15.2W

Power Supply
12VDC / PoE (802.3af) (Class 4)

Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

RAM / ROM
1GB / 128MB

Recognise (125px/m)
12m (wide) / 26m (tele)

Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)

RS485
N/A

S/N Ratio
> 50dB

Series
Ultimate AI Series Cameras

Streaming Method
Unicast / Multicast

Vandal Resistance
IK10

Video Compression
H.265, H.264, H.264B, H.264H, MJPEG

Video Interface
N/A

White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom



Documents

Download documents from the following links:

VIP_Vision_Ultimate_AI_Bullet_Datasheet_PDF
