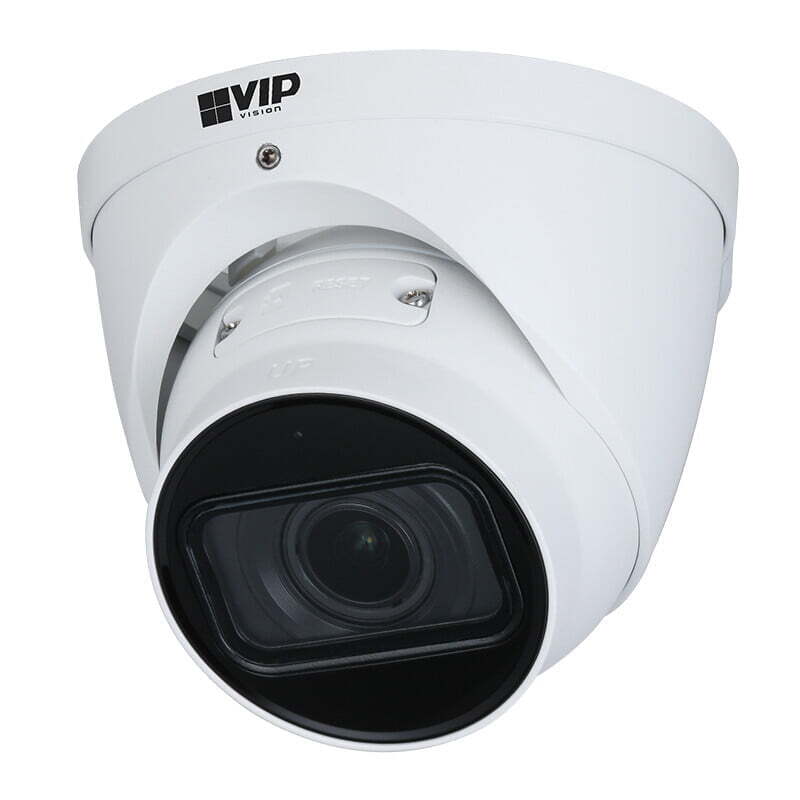

Ultimate AI Series 4.0MP Motorised Turret
Sale!
Professional Series 4.0MP Motorised Turret Dome
Professional AI Series 4.0MP Motorised Turret Dome
Professional Series 4.0MP Motorised Turret Dome
Professional Series 4.0MP Motorised Turret Dome
Professional Series 4.0MP Motorised Turret Dome
Professional Series 4.0MP Motorised Turret Dome

Ultimate AI Series 4.0MP Motorised Turret

Original price was: $669.00.Current price is: $532.49.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $133.12

Ultimate AI Series 4.0MP Motorised Turret

SKU: VSIPU-4DIRMG-I Categories: , , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

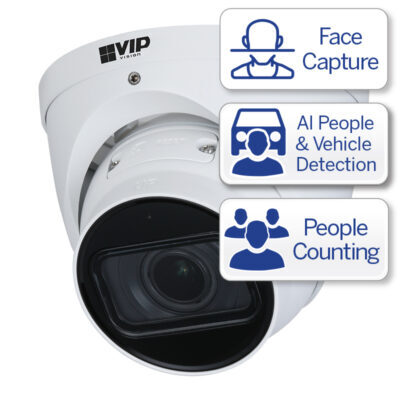

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera features:
Stream up to 4.0MP (2688 x 1520) at 25fps
2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
H.265 encoding for efficient storage & streaming
40m infrared range; true day/night (auto ICR)
Back/highlight compensation & true WDR (120dB)
MicroSD slot for recording at the edge up to 256GB
Internal face detection & capture to extend recognition
Perimeter Protection to identify people & vehicles
Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
Intelligent AI-enhanced people counting for retail capacity management and flow control
Extend PoE up to 800m (requires ePoE NVR/switch)
IP67 weather rated

Specification

Alarm Interface
N/A

Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723

Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night
Auto (ICR) / Color / B&W

Detect (25px/m)
58m (wide) / 131m (tele)

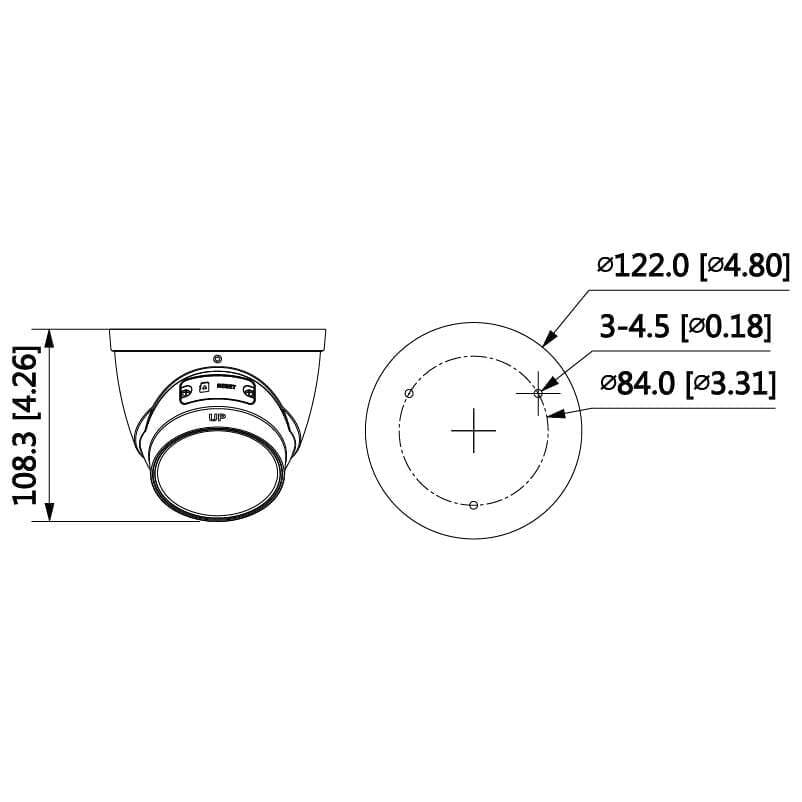

Dimensions
Ø122mm x 108mm

Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP

Effective Pixels
2688 (H) x 1520 (V)

ePoE
Yes

Ethernet
RJ-45 (10/100Base-T)

Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair

Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)

Field of View
Horizontal: 114°~47°, Vertical: 62°~26°

Focus
Auto Focus / 1.2m Min. Focus Distance

Frame Rate (Main)
4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)

Frame Rate (Sub)
D1 (1 ~ 50fps)

Frame Rate (Third)
1080p (1 ~ 25fps)

Gain Control
Auto / Manual

Heat Map
Yes

Housing
Metal, Plastic

Identify (250px/m)
6m (wide) / 13m (tele)

Image Sensor
1/1.8’’ 4.0MP Progressive Scan CMOS

Infrared System
2 x Infrared LED, 40m range, Auto/manual on/off control

Ingress Protection
IP67

Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object

Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes

Interoperability
ONVIF / P2P / CGI / Milestone / Genetec

Lens / Iris
2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris

Lighting Compensation
BLC / HLC / WDR (140dB)

Max. User Access
20 Users

Min Illumination
0.003 Lux / F1.8 (Color)

Net Weight
0.74kg

Noise Reduction
3D DNR

Observe (63px/m)
23m (wide) / 52m (tele)

Operating Conditions
-30°C ~ +60°C, ?95% RH

Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection

Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection

Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)

Power Consumption
<7.5W (Heater on)

Power Supply
12VDC / PoE (802.3af) (Class 4)

Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

RAM / ROM
1GB / 128MB

Recognise (125px/m)
12m (wide) / 26m (tele)

Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)

RS485
N/A

S/N Ratio
> 56dB

Series
Ultimate AI Series Cameras

Streaming Method
Unicast / Multicast

Vandal Resistance
N/A

Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H / MJPEG

Video Interface
N/A

White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Warranty (years)
4

Register for Member Pricing



Documents

Download documents from the following links:

VIP Vision Ultimate AI Series Motorised Turret Datasheet (PDF)

Network Camera Web 3.0 Operation Manual V2.0.5
