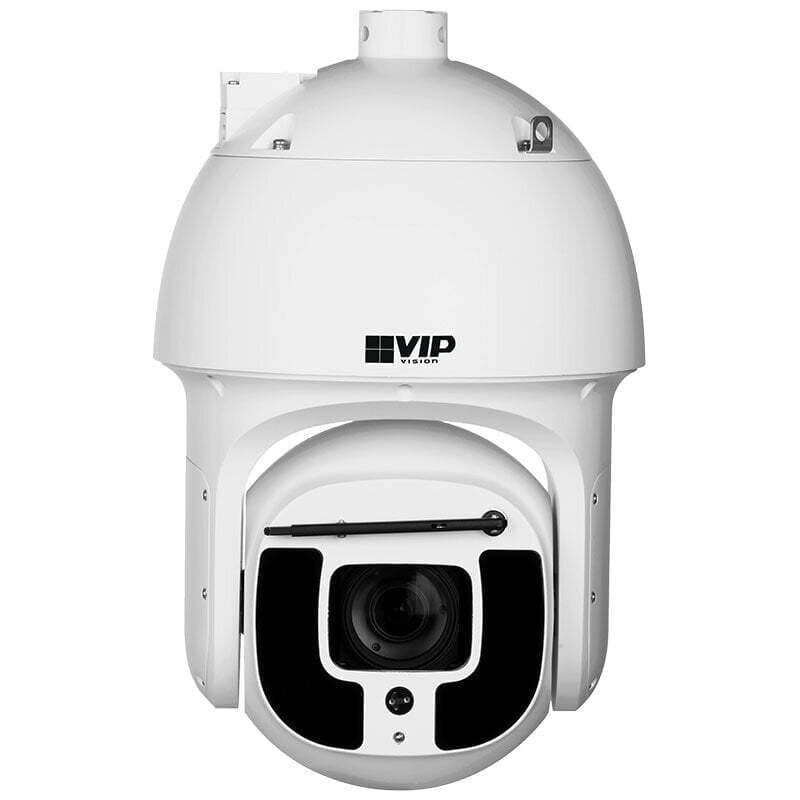

Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome
Sale!
Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome
Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome
Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome
Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome

Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome

Original price was: $6,213.90.Current price is: $4,504.18.

(Guest - Inc. GST)
Register for Member Pricing

Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome

SKU: VSIPPTZ-8IRU-I2 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPPTZ-8IRU-I2 Ultimate AI Series PTZ offers the best in camera performance & mobility with machine-learning AI features that deliver an intelligent surveillance experience.

To provide the best surveillance performance, camera features from the VSIPPTZ-8IRU-I2 include 4K resolution image capture in real-time 25fps, incredible 40x lossless optical zoom and exceptional colour image quality in low-light.

This AI camera features on-board Face Recognition, with database support for up to 10,000 faces for real-time face capture and comparison. Using AI algorithms, the camera can also distinguish vehicles & people from other motion events and use auto-tracking to intelligently follow subjects.

Register for Member Pricing

Camera features:

  • Stream up to Ultra HD 8.0MP (3840 x 2160) at 25fps
  • 40x optical zoom lens (63.9 ~ 2.0° horizontal viewing angles)

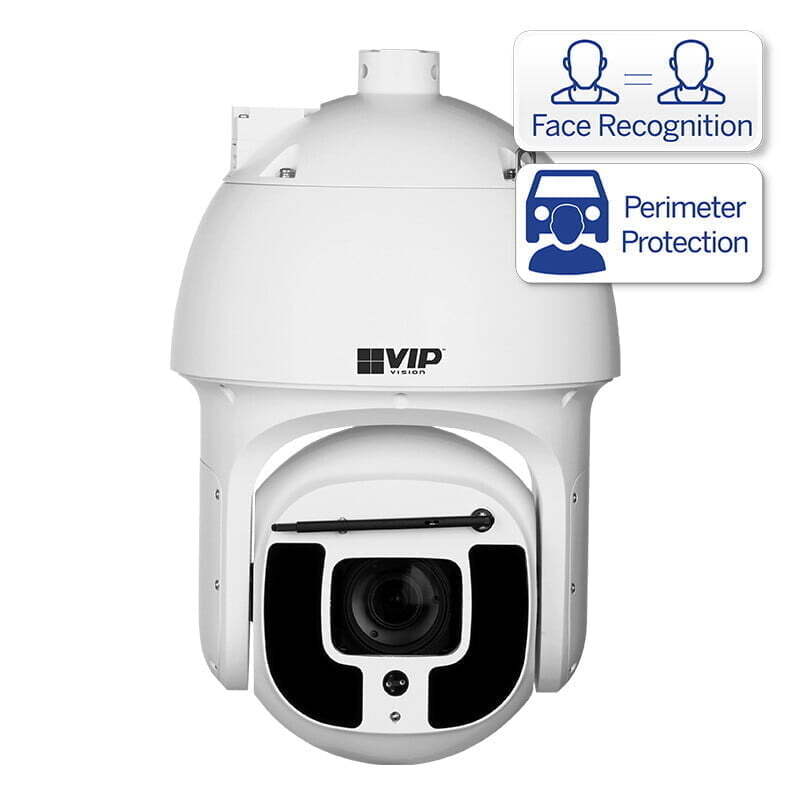

  • Face capture & recognition; perimeter protection (AI tripwire & intrusion)
  • Auto tracking subjects with vehicle/people detection via AI
  • Up to 500m infrared distance in total darkness; IR & lens wiper
  • Exceptional low light colour performance; min. illumination of 0.002lx
  • Endless 360° pan; -30° ~ +90° tilt; electronic image stabilisation
  • MicroSD card slot for recording up to 256GB
  • Audio, alarm and video interface input/output
  • Supports power via Hi-PoE (IEEE802.1x)
  • IP67 weather resistant housing for external use

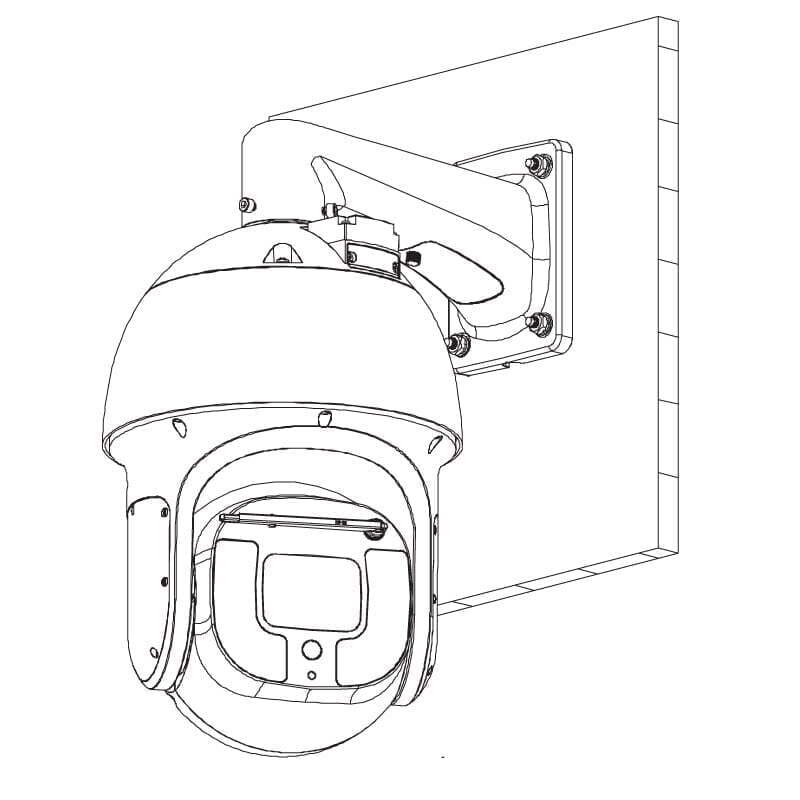

This PTZ dome camera comes standard with a right angle bracket and AC power supply.

DORI Distance

Detect (25px/m)
4400m

Register for Member Pricing

Observe (63px/m)
1740m

Recognise (125px/m)
880m

Identify (250px/m)
440m

Specification

Alarm Interface
7 Inputs / 2 Outputs

Audio Interface
1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2

Auto Tracking
Support

Bit Rate
H.265/H.264: 448K ~ 8192Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night
Auto (ICR) / Color / B&W

Digital Zoom
16x

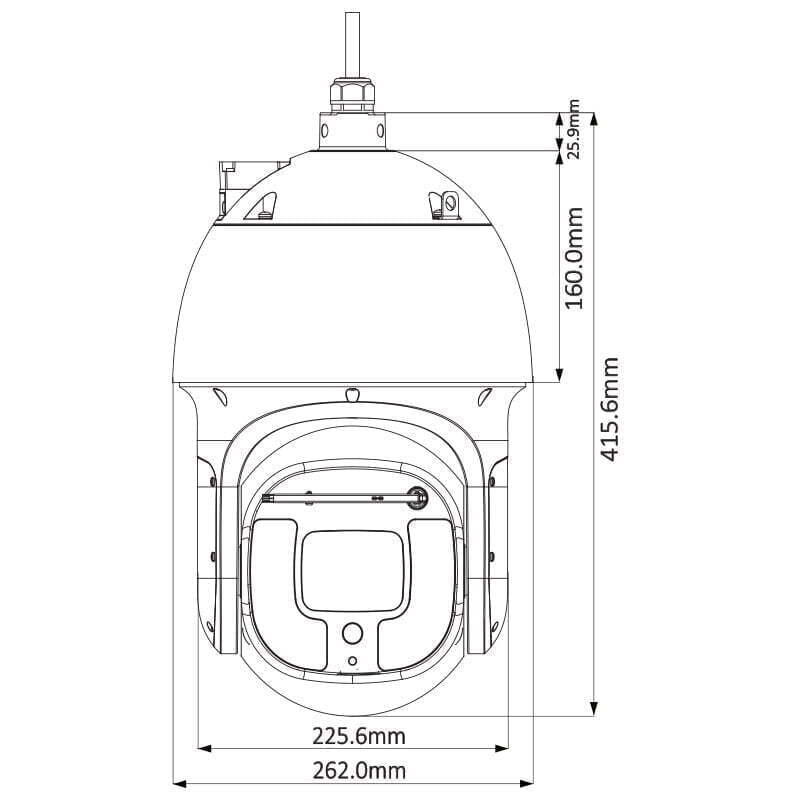

Dimensions
Ø262mm x 416mm

Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC

Effective Pixels
3840 (H) x 2160 (V)

Ethernet
RJ-45 (10Base-T/100Base-TX)

Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly

Face Capture
Support

Face Recognition
Supports database up to 10,000 face images

Field of View
Horizontal: 63.9° ~ 2.0° (40x Optical Zoom)

Focus
Auto / Manual / 1m Min. Focus Distance

Frame Rate (Main)
8.0MP (1 ~ 25fps)

Frame Rate (Sub)
D1 (1 ~ 25fps)

Frame Rate (Third)
1080p (1 ~ 25fps)

Gain Control
Auto / Manual

Heat Map
N/A

Housing
Metal

Image Sensor
1/1.8″ 8.0MP STARVIS™ CMOS

Image Stabilisation
Electronic

Infrared System
10 x Infrared LED, 450m range, Auto/manual on/off control

Ingress Protection
IP67

Interoperability
ONVIF / PSIA / CGI

IVS Functions
Abandoned object / Missing object

Lens / Iris
5.6 ~ 223mm F1.4 ~ F4.5 Motorised Lens with Auto Iris

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. User Access
20 Users

Metadata
Support

Min Illumination
0.002 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)

Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan

Net Weight
8.5kg

Noise Reduction
Ultra 2D/3D DNR

Operating Conditions
-40° ~ +70° C / Less than 90% RH

Optical Defog
Support

Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -30 ~ 90° / Auto-flip 180°

Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: -30° ~ 90° ; Rotation: 0° ~ 360°

People Counting
N/A

Perimeter Protection
Tripwire rule / Intrusion area rule (Person & vehicle detection by AI)

Picture Control
Flip 180°

Power Consumption
<26W

Power Supply
24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at)

Privacy Masking
Up to 24 areas

Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

PTZ Speed
Preset: Pan: 240°/s; Tilt: 200°/s Manual: Pan: 200°/s; Tilt: 120°/s

RAM / ROM
1024MB / 128MB

Region of Interest
Support

Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)

RS485
Yes

S/N Ratio
> 55dB

Start-up Action
Auto-restore to previous PTZ/lens status

Streaming Method
Unicast / Multicast

Vandal Resistance
N/A

Video Compression
H.265+ / H.265 / H.264+ / H.264

Video Interface
1 Output (Vpp 75?)

White Balance
Auto / ATW / Indoor / Outdoor / Manual

Warranty (years)
4



Register for Member Pricing

Documents

Download documents from the following links:

VSIPPTZ-8IRU-I_Product_Datasheet_PDF
