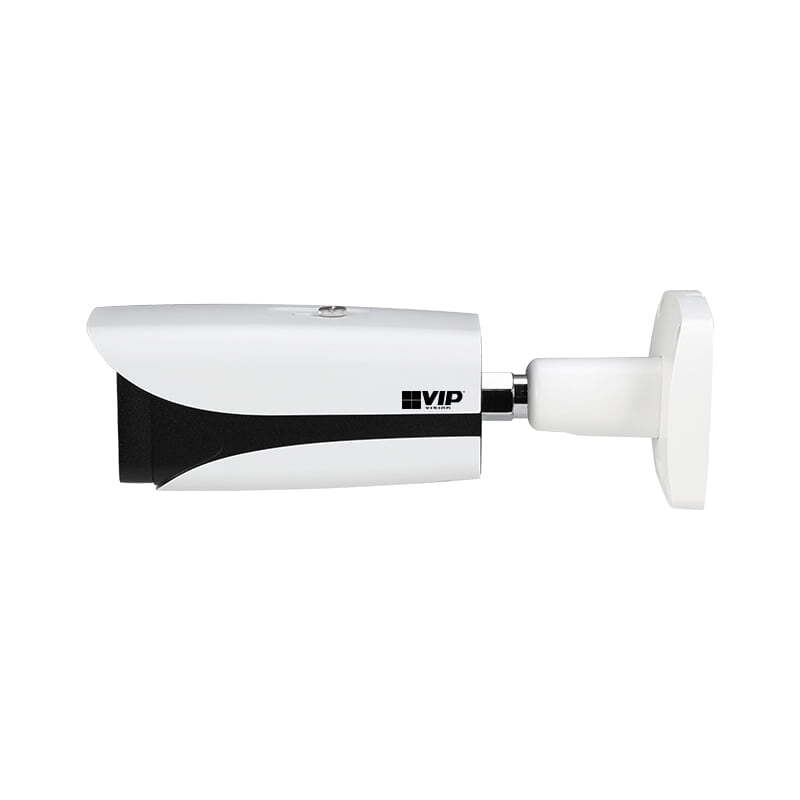

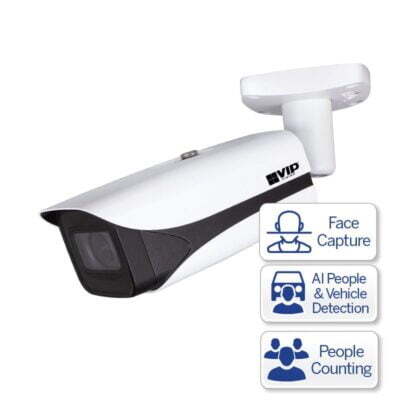

Ultimate AI Series 8.0MP Motorised Bullet

Original price was: $899.00.Current price is: $735.63.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $183.91

Ultimate AI Series 8.0MP Motorised Bullet – Run-out Offers

Add to wishlist

SKU: VSIPU-8BIRM-I3 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera features:
• Stream up to 8.0MP (3840 x 2160) at 25fps
• 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
• H.265 encoding for efficient storage & streaming
• 60m infrared range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (140dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend recognition
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms, all using any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated housing for outdoor use
• Built-in heater to prevent condensation in cold environments

Specifications

Camera
Image Sensor
1/1.8’’ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 120MB
Min Illumination
0.004 Lux / F1.4 (Color)
S/N Ratio
> 56dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 114°~47°, Vertical: 59°~27°
Focus
Auto Focus / 1.2m Min. Focus Distance
DORI
Detect (25px/m)
86m (wide) / 196m (tele)
Observe (63px/m)
34.4m (wide) / 78.4m (tele)
Recognise (125px/m)
17.2m (wide) / 39.2m (tele)
Identify (250px/m)
8.6m (wide) / 19.6m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 4M resolution and lower)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Alarm Interface
2 channel in: 5mA 5VDC / 21 channel out: 300mA 30VDC 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC (±30%) / PoE (802.3af) / ePoE
Power Consumption
<7.9W
Operating Conditions
-30°C ~ +60°C, ?95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type
Bullet
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
ePoE
Yes
Dimensions

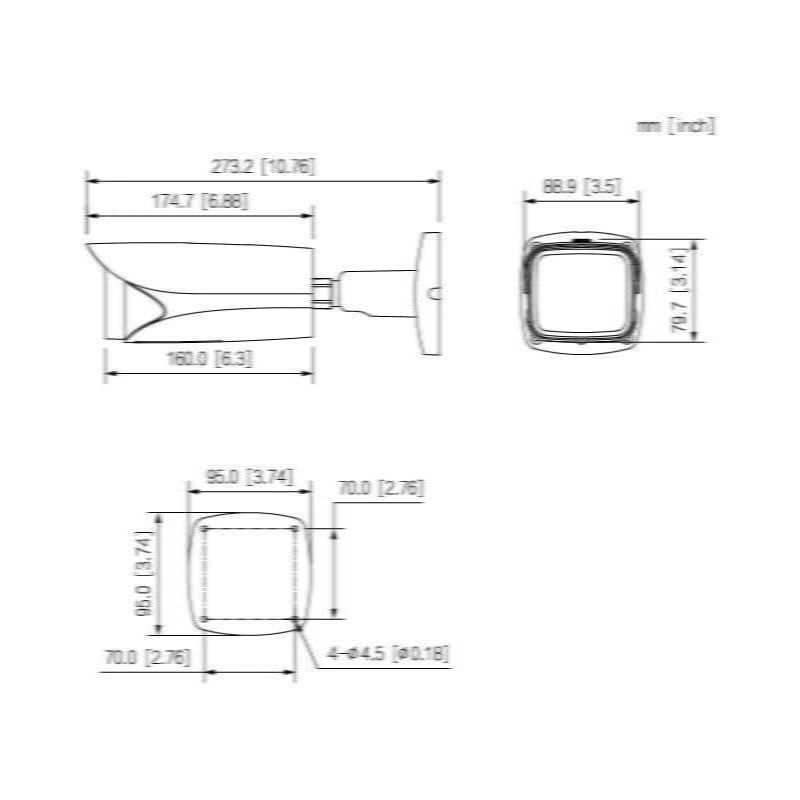

273.2mm x 95mm x 95mm
Net Weight
1.51kg
Warranty (Years)
4



Register for Member Pricing

Technical Documents

Download documents from the following links:

VIP Vision Ultimate AI Series Motorised 8.0MP Bullet Datasheet (PDF)

VIP_Vision_Ultimate_AI_Series_Motorised_4.0MP__8.0MP_Bullet_Datasheet_PDF

Accessory Compatibility Guide – Q1 2021 (PDF)
