The Explosion Rated Series offers ATEX and IECEx rated varifocal cameras for CCTV monitoring in hazardous environments where ignition sources must be strictly controlled. Built for energy & manufacturing industries, models in this range deliver superb video surveillance with AI functions, in a heavy duty, IP68 stainless steel chassis.
Camera features:
• Stream up to 4.0MP@25fps (2688 x 1520), AI H.265
• ATEX/IECEx: Zone 1/2 Gas (IIC); Zone 21/22 dust (IIIC)
• Up to 50m infrared range; true day/night (auto ICR)
• AI people counting via tripwire with data export
• AI human/vehicle detection up to 99% accuracy
• 2.7~13.5mm motorised lens (H: 99~29°), fixed iris
• True WDR (120dB) & electronic image stabilisation
• Audio I/O (RCA), 1/1 alarm I/O and 1 x RS485 port
• MicroSD (up to 512GB); powered via PoE/12VDC
• IP68 rated stainless steel chassis (304, 316L optional)

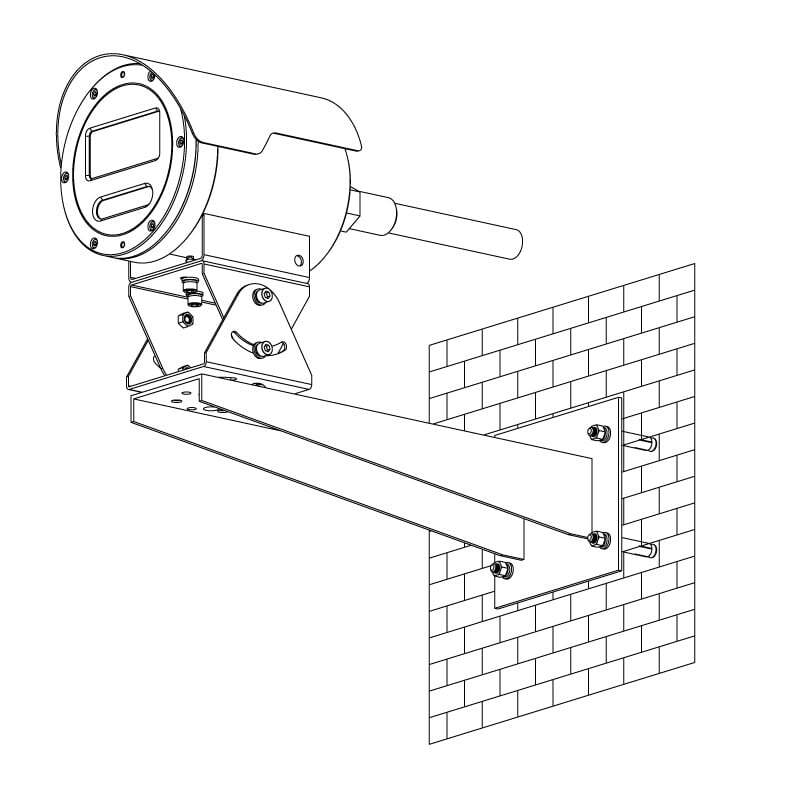

Additional mount adapter/wall mount bracket (VSIPEX-BU, VSIPEX-BW) sold separately.
Specifications
Camera
Image Sensor
1/2.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Ultra Low Light Colour
N/A
Min Illumination
0.005 Lux/F1.5 (Colour), 0.0005 Lux/F1.5 (B&W), 0 Lux (IR on)
S/N Ratio
> 56dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.7~13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 99~29°, Vertical: 53~16°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 210m (tele)
Observe (63px/m)
25m (wide) / 84m (tele)
Recognise (125px/m)
13m (wide) / 42m (tele)
Identify (250px/m)
6.4m (wide) / 21m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
2.0MP / 1080p (1 ~ 25fps)
Video Compression
AI H.264/265, Smart H.264+/265+, H.264/+, H.265/+, / MJPEG
Bit Rate
H.264 / H.265: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 4.0MP resolution and lower)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Heat Map
Basic: 3.96W (12VDC); 4.95W (PoE), Maximum (H.265+intelligence on +WDR +IR on + auto focus): 9.2W (12VDC); 11.5W (PoE)
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP68
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Specialty Series
Camera Type
Bullet
Housing
Stainless Steel (SUS304, SUS316L optional)
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
N/A
ePoE
No

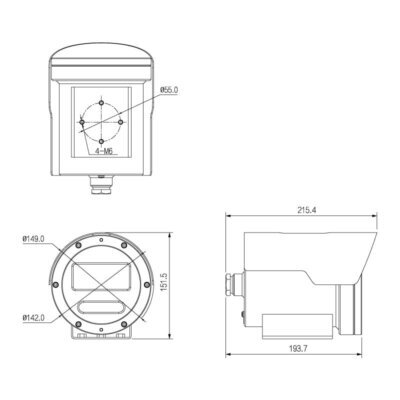

Dimensions
215mm x 149mm x 151mm
Net Weight
5kg (Net)
Other
Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db
VIP Vision 4.0MP Explosion Rated Bullet
$5,648.50Original price was: $5,648.50.$4,948.96Current price is: $4,948.96.VIP Vision 4.0MP Explosion Rated Bullet – CCTV Surveillance Systems > Network Surveillance Cameras
Description
The Explosion Rated Series offers ATEX and IECEx rated varifocal cameras for CCTV monitoring in hazardous environments where ignition sources must be strictly controlled. Built for energy & manufacturing industries, models in this range deliver superb video surveillance with AI functions, in a heavy duty, IP68 stainless steel chassis.
Camera features:
• Stream up to 4.0MP@25fps (2688 x 1520), AI H.265
• ATEX/IECEx: Zone 1/2 Gas (IIC); Zone 21/22 dust (IIIC)
• Up to 50m infrared range; true day/night (auto ICR)
• AI people counting via tripwire with data export
• AI human/vehicle detection up to 99% accuracy
• 2.7~13.5mm motorised lens (H: 99~29°), fixed iris
• True WDR (120dB) & electronic image stabilisation
• Audio I/O (RCA), 1/1 alarm I/O and 1 x RS485 port
• MicroSD (up to 512GB); powered via PoE/12VDC
• IP68 rated stainless steel chassis (304, 316L optional)
Additional mount adapter/wall mount bracket (VSIPEX-BU, VSIPEX-BW) sold separately.
Specifications
Technical Documents
Download documents from the following links:
VSIPEX_SERIES_DATASHEET.pdf
