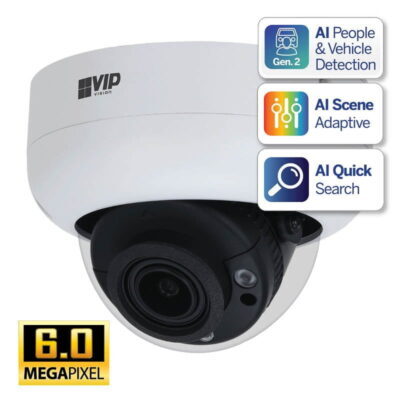

Professional AI Series 6.0MP Motorised Vandal Dome
Sale!
Professional AI Series 4.0MP Motorised Vandal Dome
Professional AI Series 4.0MP Motorised Vandal Dome
Professional AI Series 4.0MP Motorised Vandal Dome
Professional AI Series 4.0MP Motorised Vandal Dome
Professional AI Series 4.0MP Motorised Vandal Dome
Professional AI Series 4.0MP Motorised Vandal Dome
Professional AI Series 4.0MP Motorised Vandal Dome

Professional AI Series 6.0MP Motorised Vandal Dome

Original price was: $355.00.Current price is: $313.52.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $78.38
Professional AI Series 6.0MP Motorised Vandal Dome

Add to wishlist

SKU: VSIPP-6DIRMD-I2 Category: Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
• Stream up to 6.0MP (3072 × 2048) at 25fps
• 2.7 ~ 13.5mm motorised lens with 109~30° viewing angles
• H.265 encoding for efficient storage & streaming
• Up to 40m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing

Specification

Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC

Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; PCM

Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type
Dome

Day/Night
Auto (ICR) / Color / B&W

Detect (25px/m)
64m (wide) / 210m (tele)

Dimensions
Ø122mm x 89mm

Edge Storage
MicroSD Card (up to 256GB) / NAS

Effective Pixels
3072 (H) × 2048 (V)

ePoE
No

Ethernet
RJ-45 (10/100Base-T)

Event Trigger
N/A

Face Attributes
N/A

Face Detection
N/A

Field of View
Horizontal: 109°~30°, Vertical: 54°~16° (5x Optical Zoom)

Focus
Auto Focus / 0.8m Min. Focus Distance

Frame Rate (Main)
6.0MP (1 ~ 25fps)

Frame Rate (Sub)
D1 (1 ~ 25fps)

Frame Rate (Third)
1080p (1 ~ 25fps)

Gain Control
Auto

Heat Map
N/A

Housing
Metal

Identify (250px/m)
6m (wide) / 21m (tele)

Image Sensor
1/2.7’’ 6.0MP Progressive Scan CMOS

Infrared System
3 x Infrared LED, 40m range, Auto/manual on/off control

Ingress Protection
IP67

Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Interoperability
ONVIF / P2P / CGI / Milestone / Genetec

Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris

Lens Type
Motorised Varifocal

Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA

Max. Resolution
6.0 Megapixel

Max. User Access
20 Users

Min Illumination
0.005 Lux/F1.5 (Color)

Net Weight
0.71kg

Noise Reduction
3D DNR

Observe (63px/m)
26m (wide) / 84m (tele)

Operating Conditions
-30°C ~ +60°C / ?95% RH

Pan/Tilt/Rotation
Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°

People Counting
N/A

Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)

Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)

Power Consumption
<10.5w

Power Supply
12VDC / PoE (802.3af)

Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

RAM / ROM
1GB / 128MB

Recognise (125px/m)
13m (wide) / 42m (tele)

Resolution
6.0MP (2688 x 1520) to CIF (352 x 288)

RS485
N/A

S/N Ratio
> 56dB

Series
Professional AI Series

Smart Scene Adaptive (SSA)
Yes

Streaming Method
Multicast

Vandal Resistance
IK10

Video Compression
H.265+ / H.265 /H.264+ / H.264 / H.264B / MJPEG

Video Interface
N/A

White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
