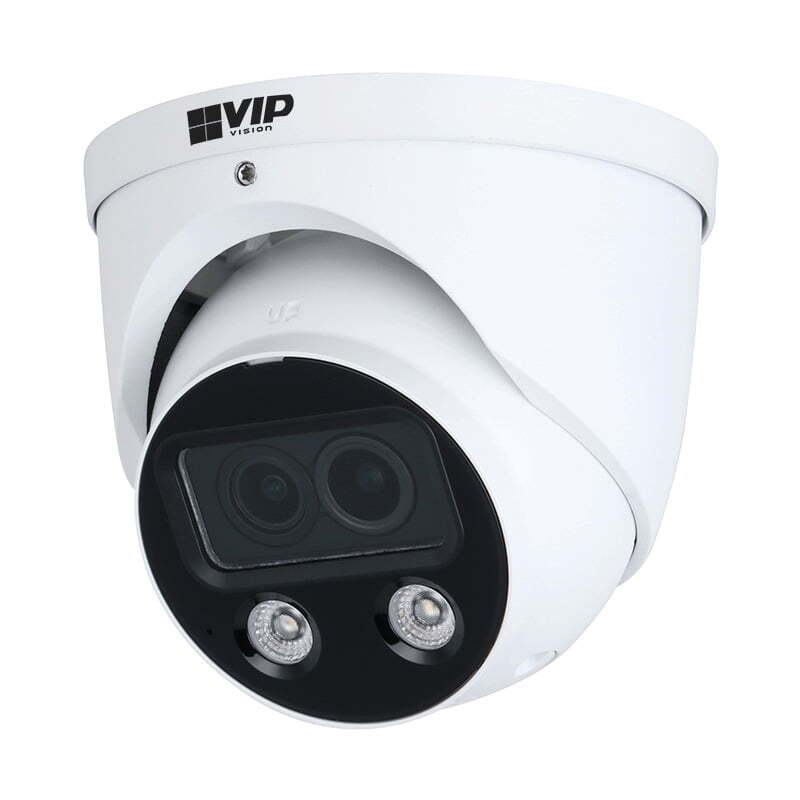

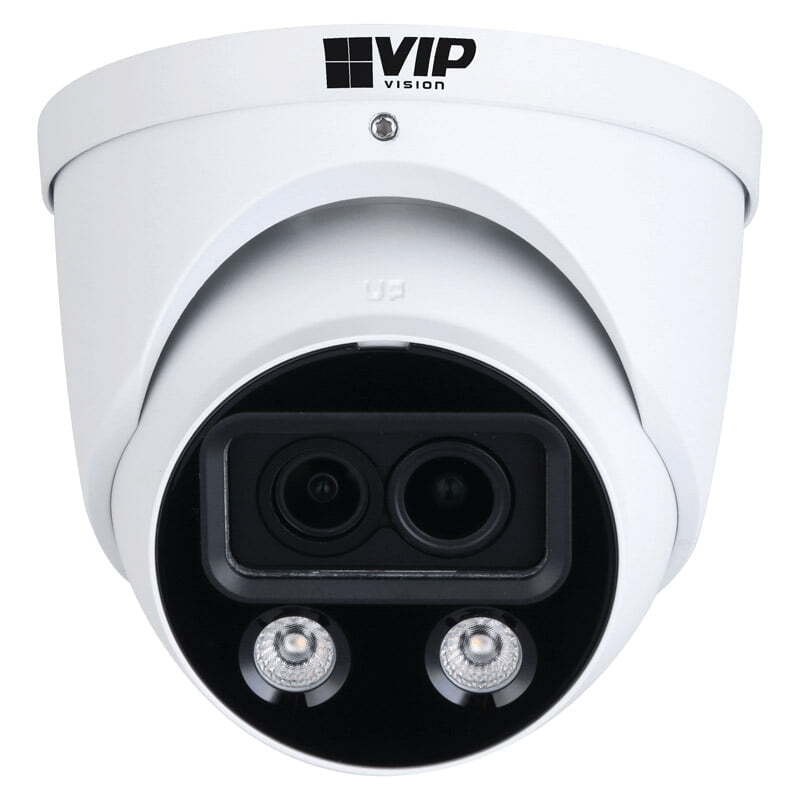

Ultimate AI Series 4.0MP Fixed Dual Lens
Sale!
Ultimate AI Series 4.0MP Fixed Dual Lens
Ultimate AI Series 4.0MP Fixed Dual Lens
Ultimate AI Series 4.0MP Fixed Dual Lens
Ultimate AI Series 4.0MP Fixed Dual Lens
Ultimate AI Series 4.0MP Fixed Dual Lens
Ultimate AI Series 4.0MP Fixed Dual Lens
Ultimate AI Series 4.0MP Fixed Dual Lens

Ultimate AI Series 4.0MP Fixed Dual Lens

Original price was: $636.35.Current price is: $557.55.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $139.39
Ultimate AI Series 4.0MP Fixed Dual Lens

Add to wishlist

SKU: VSIPU-4DIRG-IM Categories: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

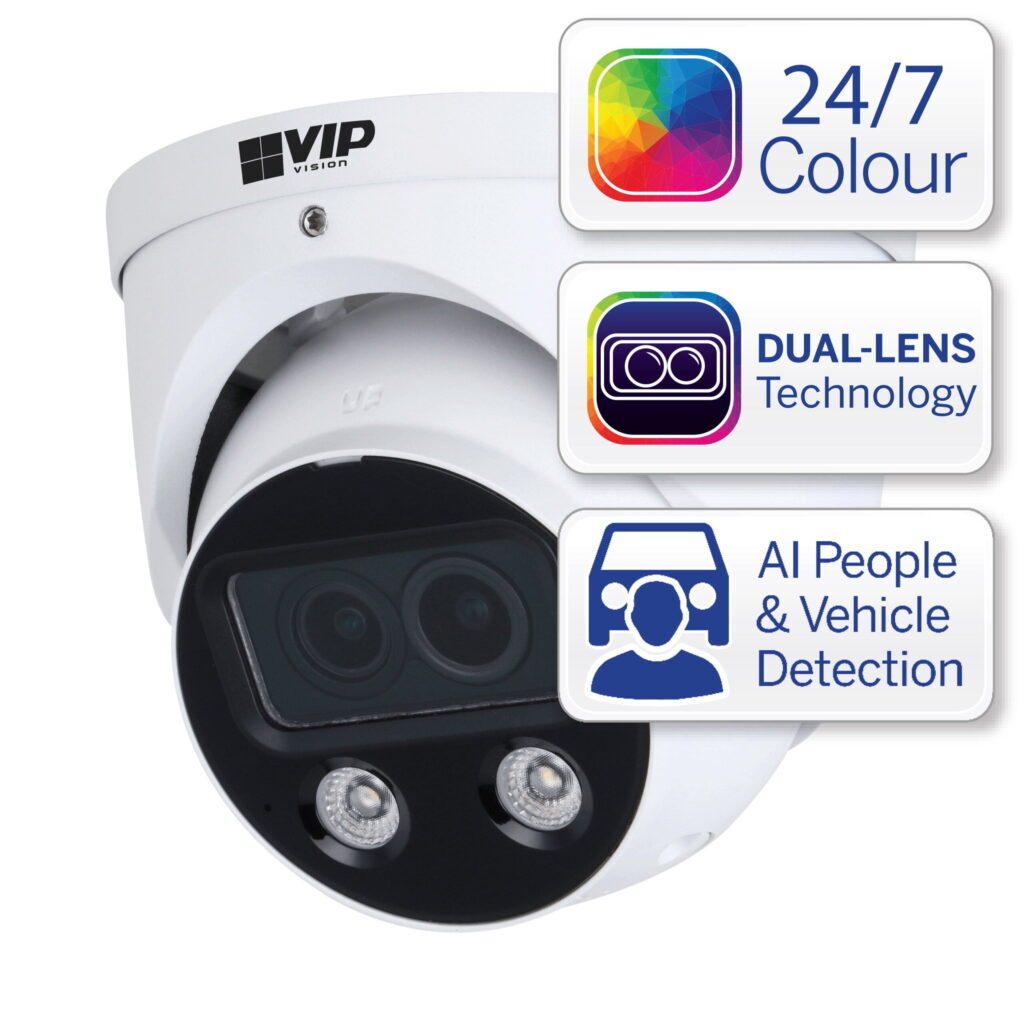

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8 mm wide angle lens at 97° FOV
• 24/7 Colour video
• Dual AI sensors that produce vibrant low-light colours
• H.265 encoding for efficient storage & streaming
• 50m infrared/light range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (140dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend AI recognition in NVR database
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated

Specifications

Camera
Image Sensor
1/1.8" + 1/1.8" CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) × 1520 (V)
RAM / ROM
1 GB/128 MB
Min Illumination
0.0002 lux / F1.0 (Colour)
S/N Ratio
>56 dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed Focal
Lens / Iris
2.8mm F1.0 Fixed Focal Dual Lens
Field of View
97°
Focus
4m Min. Focus Distance
DORI
Detect (25px/m)
58.2 m
Observe (63px/m)
23.3 m
Recognise (125px/m)
11.6 m
Identify (250px/m)
5.8 m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG
Bit Rate
H.264: 32 kbps–8192 kbps H.265: 19 kbps–8192 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Environmental
Power Supply
12 VDC (±30%); PoE (802.3af); ePoE
Power Consumption
<10.5W
Operating Conditions
-40°C ~ +60°C (Heater on), ?95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type
Dome
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360°
ePoE
Yes

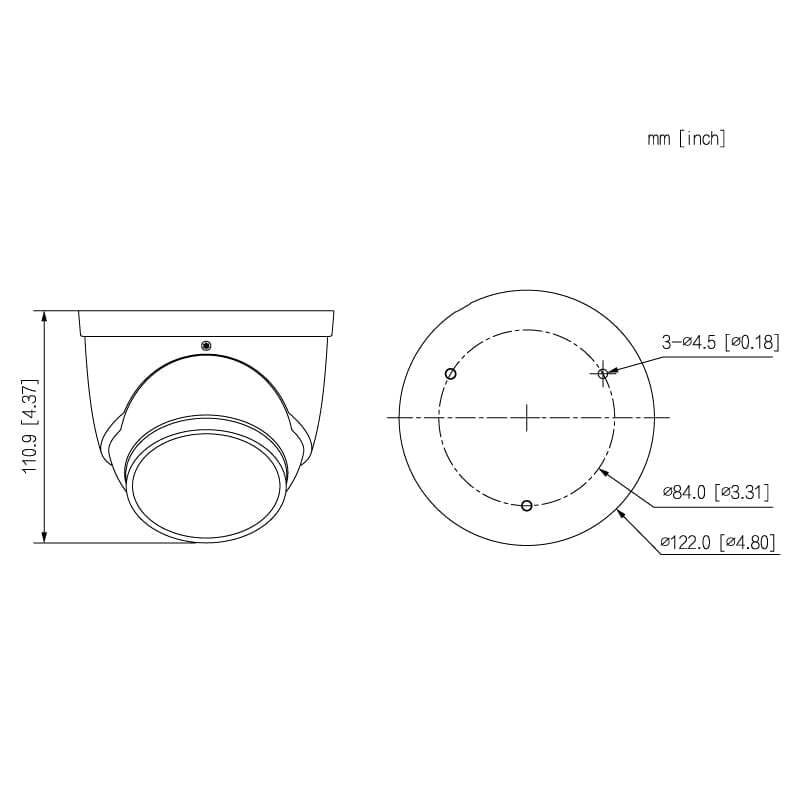

Dimensions
?122 mm × 110.9 mm
Net Weight
0.75 kg
Warranty (Years)
4



Register for Member Pricing

Documents

Download documents from the following links:

VIP Vision Ultimate AI Series VSIPU-4DIRG-IM Datasheet (PDF).pdf
