Shop » Products » IP CCTV » VIP Vision / Watchguard » CCTV Cameras » Pinhole / Covert / Discreet » Pinhole Series 2.0MP Fixed WDR Pinhole Camera

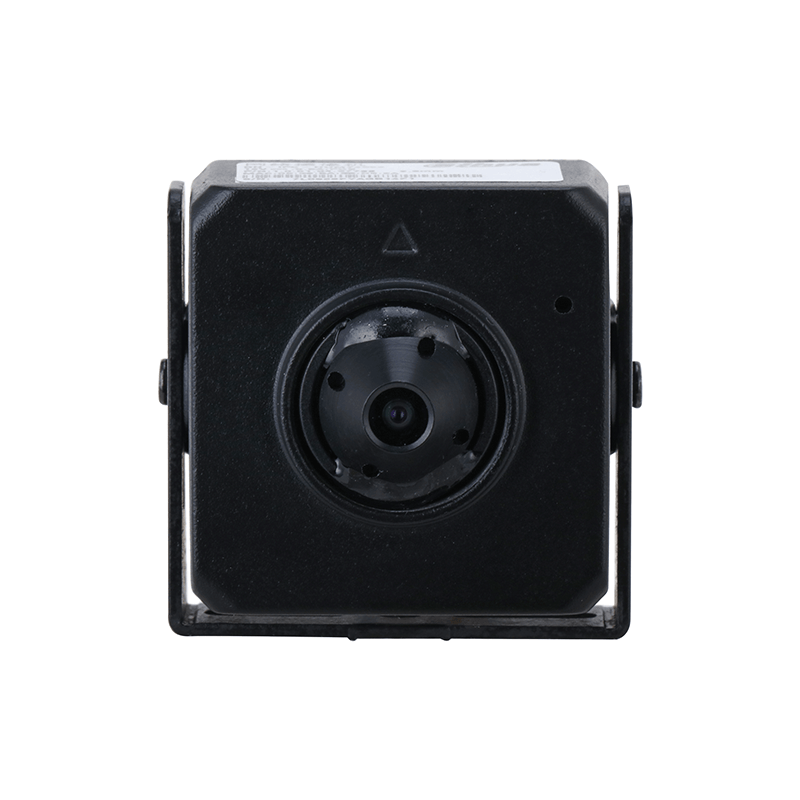

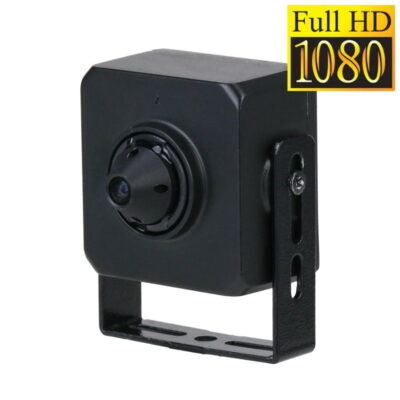

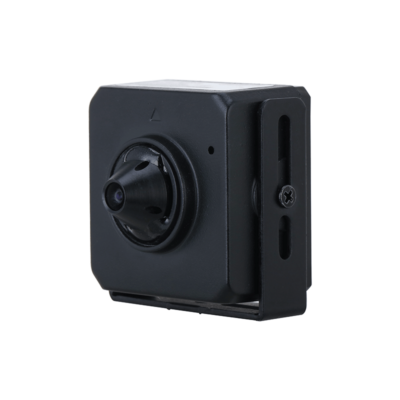

Pinhole Series 2.0MP Fixed WDR Pinhole Camera
Sale!
Pinhole Series 2.0MP Fixed WDR Pinhole Camera - Image 2
Pinhole Series 2.0MP Fixed WDR Pinhole Camera - Image 3
Pinhole Series 2.0MP Fixed WDR Pinhole Camera - Image 4
Pinhole Series 2.0MP Fixed WDR Pinhole Camera - Image 5
Pinhole Series 2.0MP Fixed WDR Pinhole Camera - Image 6

Pinhole Series 2.0MP Fixed WDR Pinhole Camera

Original price was: $227.37.Current price is: $199.21.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $49.80

Pinhole Series 2.0MP Fixed WDR Pinhole Camera – CCTV Surveillance Systems > Network Surveillance Cameras

SKU: VSIPPH-2S3 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The VSIPPH-2S2 pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, vehicles, ATMs and more.

Camera features:
• Stream up to HD 1080p at 25fps
• Fixed 2.8mm lens with 108° field of view
• True WDR (120dB)
• Auto electronic day/night & 2D digital noise reduction
• Discreet pinhole housing for covert surveillance
• IVS functions including motion detection, tripwire & intrusion

Specifications

Camera
Image Sensor
1/3” 2.0 Megapixel Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
128MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
Colour: F2.0 0.01 lux (1/3s)
S/N Ratio
>56dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed lens
Field of View
Horizontal: 96°, Vertical: 55°
Focus
Fixed / 0.6m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
61m
Observe (63px/m)
24.4m
Recognise (125px/m)
12.2m
Identify (250px/m)
6.4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
704 x 576@(1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264 / MJPEG (sub stream)
Bit Rate
H.265: 3 Kbps ~ 6144 Kbps / H.264: 3 Kbps ~ 6144 Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto/ Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output (RCA)
Alarm Interface
N/A
RS485
N/A
Edge Storage
NAS / Local PC
Interoperability
ONVIF Profile S / API
Environmental
Power Supply
12VDC / Non POE
Power Consumption
<1.5W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No

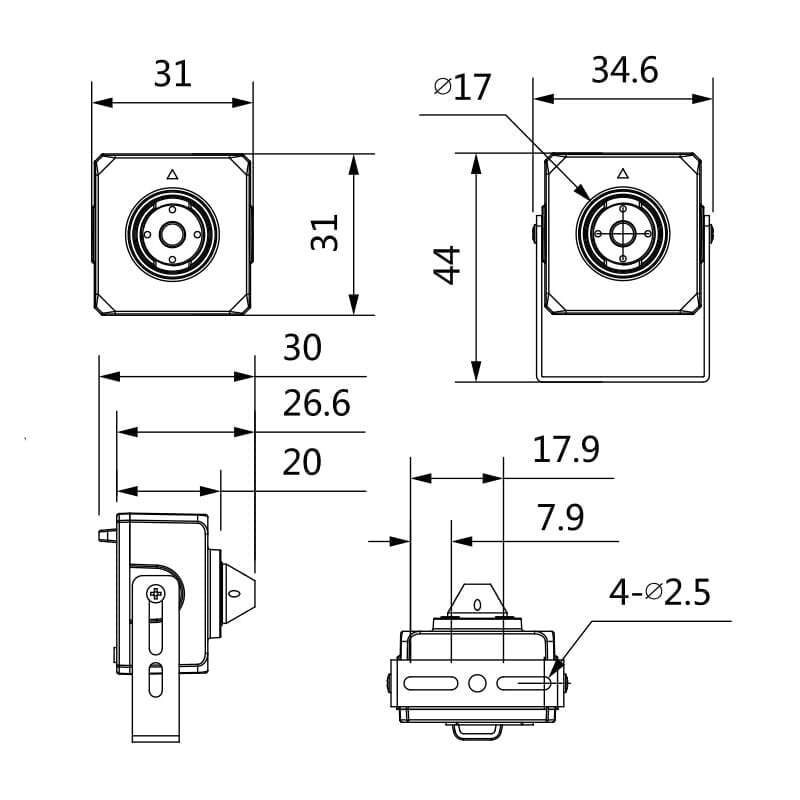

Dimensions
31mm x 31mm x 30mm
Net Weight
0.138kg
Warranty (Years)
4



Register for Member Pricing

Technical Documents

Download documents from the following links:
VSIPPH- Datasheet 2023.pdf
