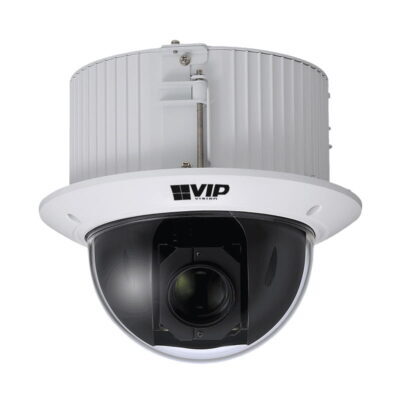

Professional AI Series 2.0MP PTZ Ceiling Mount Camera
Sale!
Professional AI Series 2.0MP PTZ Ceiling Mount Camera
Professional AI Series 2.0MP PTZ Ceiling Mount Camera

Professional AI Series 2.0MP PTZ Ceiling Mount Camera

Original price was: $1,285.57.Current price is: $1,126.36.

Register for Member Pricing

4 Interest Free Payments of $281.59
Professional AI Series 2.0MP PTZ Ceiling Mount Camera

SKU: VSIPPTZ-2C-I Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

This VSIPPTZ-2C-I camera delivers lightning fast PTZ mobility, up to 25x optical zoom and auto-tracking, all in a vandal resistant body. Experience AI face detection & AI Perimeter Protection technology, providing meaningful video event notifications in real-time. Ideal for indoor, time critical applications such as in banks, retail, in gaming and more.

Camera features:
• Stream up to 2.0MP (1920×1080) at 50fps
• 4.9 – 156mm motorised varifocal lens with 2.2 – 68.2° viewing
• H.265 encoding for efficient storage & streaming
• Built-in microphone and microSD slot for edge recording
• 3D digital noise reduction & true WDR (120dB)
• Tripwire, Intrusion, Motion detection and more
• Power via 12VDC or Power over Ethernet (802.3at)
• IK10 rated metal housing

Includes 24VAC/3A PSU.

Specifications

Camera
Image Sensor
1/2.8″ STARVIS™ CMOS
Max. Resolution
2MP
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1GB / 4GB
Min Illumination
Color: 0.005 Lux @ F1.35 / B/W: 0.0005 Lux @ F1.35
S/N Ratio
? 55 dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.9 mm ~ 156 mm F1.35-F4.4 Motorised Lens with Auto Iris
Field of View
62.8°–2.2°
Focus
1 m–1.5 m Min.
DORI
Detect (25px/m)
2152m
Observe (63px/m)
850m
Recognise (125px/m)
430m
Identify (250px/m)
215m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: 0 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 500°/s; Tilt: 500°/s Manual: Pan: 350°/s; Tilt: 250°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1(1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
Bit Rate
H.265/H.264: 3 kbps–20480 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
2D / 3D NR
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
Support
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
Support
Metadata
Support
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75?)
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / CGI
Environmental
Power Supply
24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at)
Power Consumption
<16W
Operating Conditions
–30°C to +60°C
Ingress Protection
N/A
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
PTZ Dome (Ceiling Mount)
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360° Tilt: 0° ~ 90°
ePoE
No

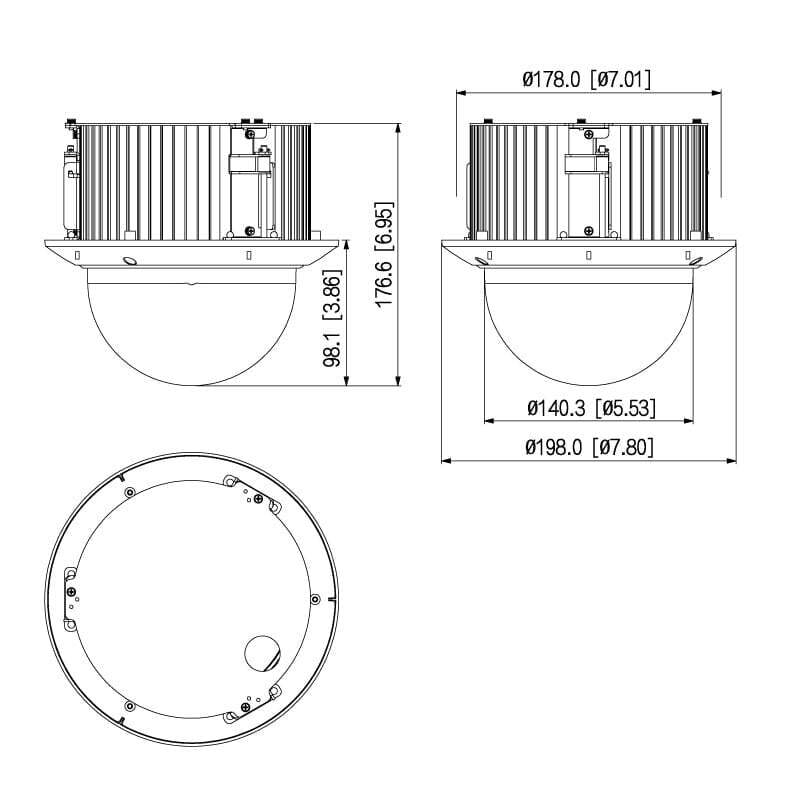

Dimensions
Ø186 mm x 253 mm
Net Weight
2.2 kg
Warranty (Years)
4
Register for Member Pricing



Download documents from the following links:

VIP Vision Professional AI VSIPPTZ-2C-I Datasheet.pdf

PTZ Camera Quick Start Guide
