Adapter/Junction Box for Surveillance Cameras

Name: Adapter/Junction Box for Surveillance Cameras
Brand: VIP Vision
SKU: VSBKTA134
Price: 13.22 AUD
Availability: InStock

Original price was: $19.00.Current price is: $14.54.

(Guest - Inc. GST)

4 Interest Free Payments of $3.64

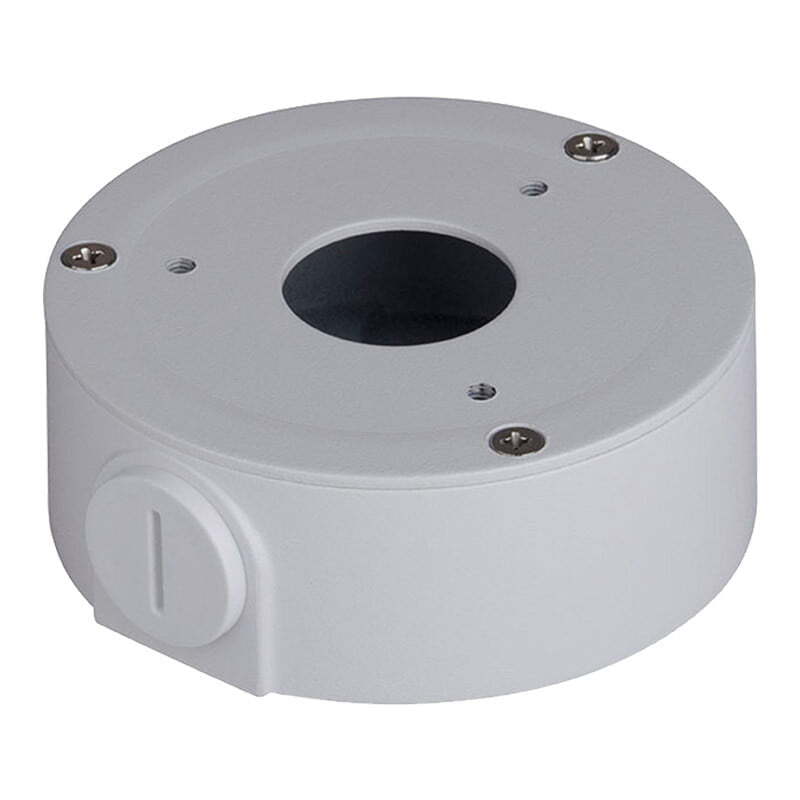

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts.

SKU: VSBKTA134 Categories: Camera Housing and Brackets, Camera and housing brackets, Surveillance Essentials - miscellaneous components, Camera Brackets and Adapters

Free Shipping for orders over $600 (AU Only)*

Brand: VIP Vision

Description

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts.

See bracket compatibility guide under Brochure Tab below for product compatibility.

Specifications

Bracket Type	Junction Box

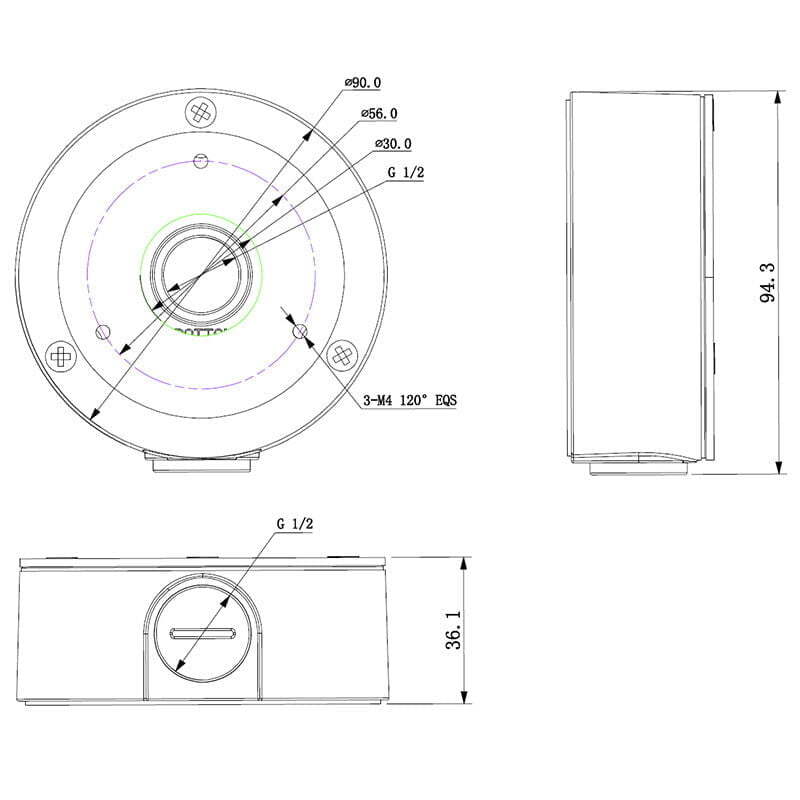

Dimensions	Ø90 x 36.1mm
Inch Thread	M20 (G1/2″)
Load Bearing Capacity	1.00kg
Materials	Aluminum / SECC
Operating Conditions	-40° ~ 60°C / 90% RH (max)
Pipe Thread	N/A
Weather Resistance	N/A
Weight	0.38kg
Warranty (Years)	4

Shipping Weight and Dimensions includes product packaging

Width	94 mm
Height	90 mm
Depth	34 mm
Weight	0.14 kg

Brochure

Download the brochure from the link below.

Bracket Compatibility Guide
