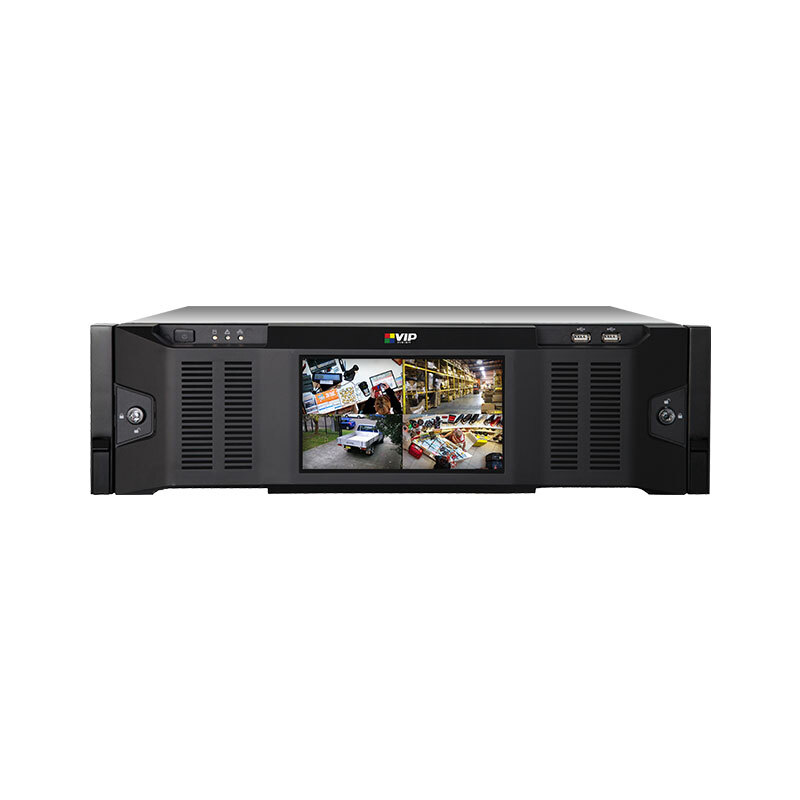

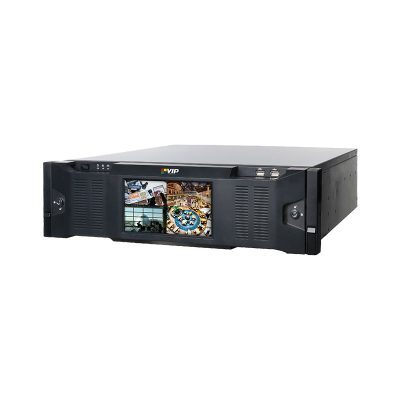

VIP Vision General System Management Centre
Sale!
VIP Vision General System Management Centre - Image 2
VIP Vision General System Management Centre - Image 3
VIP Vision General System Management Centre - Image 4
VIP Vision General System Management Centre - Image 5

VIP Vision General System Management Centre

Original price was: $16,995.00.Current price is: $14,035.40.

Register for Member Pricing

VIP Vision General System Management Centre – Surveillance Essentials > System Management Centres

SKU: NVR-GSMC2 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Built to handle large systems in a cost-effective manner, the NVR-GSMC2 is a management centre preloaded with a GUI for your surveillance system and 1,000 preactivated video channels. Organise and manage IP surveillance, access control, video intercoms, AI functionality and much more in this scalable, all-in-one solution.

System can be cascaded up to 5 sub-servers (get system redundancy and additional video devices, access control, alarm controllers and video intercom connectivity).

Product features:
• Centralised CCTV, access control & intercom management
• Set different access rights hierarchies per user/group
• Manage access w/ card reader & fingerprint scan
• Event & alarm logging, searching, timestamp & overlay
• Create impressive live video walls displays
• Intelligent functions + ANPR, AI & face recognition
• PTZ control/tour, audio, alarm, etc.
• Manual and automatic system backup/restore
• Built-in 2TB HDD – supports 15x 3.5” HDDs for storage
• High reliability with hot standby & hot swapping

Specifications

Specifications
Main Processor
64 bit 4 core CPU (CORE-I5-6600)
Operating System
Linux
System Disk
Seagate 7200 RPM Enterprise Class HDD 2 TB
Motherboard
Embedded board (7 × 24 operation)
Hard Disk Compatibility
SAS/SATA disk
Hot Swap
Supports hot swap & online replacement
Power Redundancy
1+1 redundant power
Memory
16GB
Interface
Network Port
4 Ethernet Ports (100/1000Mbps )
USB Port
Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0
HDMI
3 HDMI
VGA
1 VGA, as network config
HDD Installation
Built-in 1× 2T HDD disk (2.5”) for system Support 15HDD disks (3.5”) for Video & Picture storage (max 16TB per HDD, 200TB per server)
Environment
Power
315W (max), 210W (stable)
Operating Environment
0°C~40°C / 10%~80% RH
Storage Environment
-20°C~70°C / 5%~90% RH
Weight (Without Package)
19.1kg

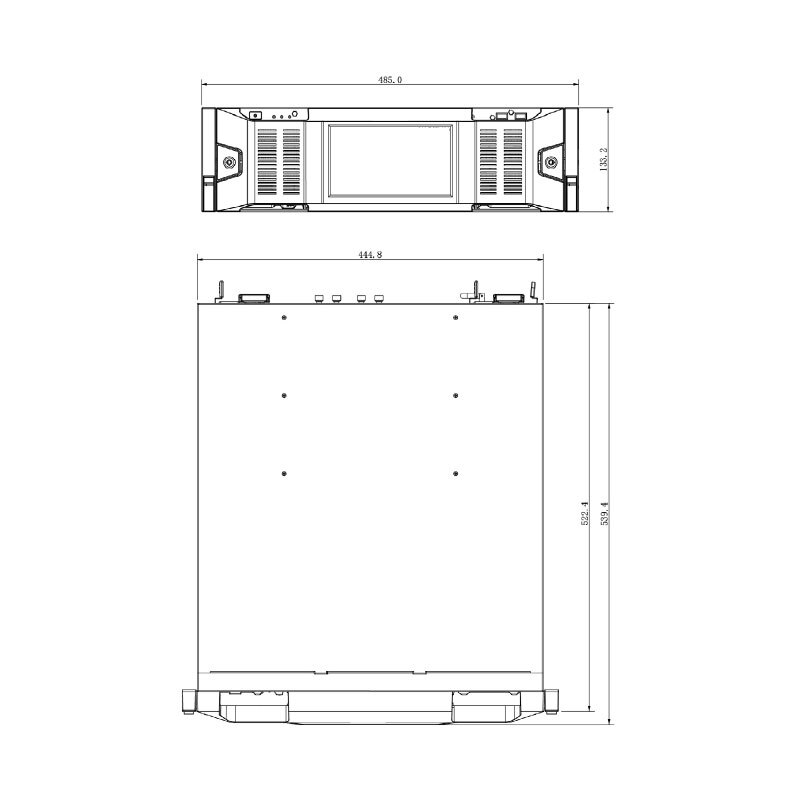

Dimension
444.8mm × 133.2mm × 522.2mm
Installation Method
Standard 19” rack installation
Secondary Development
Platform SDK provided
Total Devices
Sub Servers
Up to 5 sub-servers
Included Device License
1,000 devices (single server) / 5,000 devices (multiple servers)
Maximum Device Licences
2,000 devices (single server) / 6,000 devices (multiple servers)
Client
PC Client & DSS Mobile Users
50 Online, 200 Total
Roles
100 (32 per user)
DSS Mobile for VDP
500 Online, 5000 Total
Devices
Video
500 devices, 1000 Channels (single server) / 2500 devices, 5000 Channels (multiple servers)
ONVIF
500 devices, 1000 Channels (single server) / 2500 devices, 5000 Channels (multiple servers)
P2P
32 devices
Access Control
200 devices, 500 Doors (single server) / 600 devices, 1500 Doors (multiple servers)
Video Intercom Devices
2000 devices
Alarm Controllers
64 devices, 640 zones (single server) / 320 devices, 3200 zones (multiple servers)
Facial Recognition Channels
20 devices, 100 channels (single server) / 100 channels, 500 channels (multiple servers)
ANPR Camera
100 channels (single server) / 500 channels (multiple servers)
Alarm Host
100 channels (single server) / 500 channels (multiple servers)
Video Metadata
100 channels (single server) / 500 channels (multiple servers)
Intelligent Analyses
People Counting & Heat Map
32 channels (single server) / 160 channels (multiple servers)
Media Transmission Server
Total Bandwidth Incoming / Outgoing / Storage
600 Mbps (single server) / 3000 Mbps (multiple servers)
Video Bandwidth Incoming / Outgoing / Storage
600 Mbps (single server) / 3000 Mbps (multiple servers)
Picture Bandwidth Incoming / Outgoing / Storage
100 channels (single server) / 500 channels (multiple servers)
Record
Maximum Capacity per Storage Server (local & IPSAN)
200 TB (single server) / 1PB (multiple servers)
Prerecording Bandwidth for Alarm Recordings
400 Mbps (single server) / 2,000 Mbps
General Recording Plans
3,000
Motion Detection Recording Plans
3,000
Video Retrieval Plans
3,000
Event
Event Reception (w/o Picture)
240 per Second (single server) / 480 per second (multiple servers)
Event Reception (w/ Picture)
100 per second (single server)
Access Control Events
240 per Second (single server) / 480 per second (multiple servers)
Event Sources for Event Rules
3,000
Combined Event Rules
100
Combined Events
200
Emap
Hierarchy of Raster Map
8 Hierarchies
Raster Map Total
256
Map Size of Raster Map
Up to 15MB
Resources per Raster Map
300
Personnel Management
Persons & Vehicle Groups
999
Group Levels
10
Persons
100,000
Cards
200,000
Faces
100,000
Fingerprints
200,000
Vehicles
20,000
Parking Lot Management
Total Vehicles
20,000
Total Vehicle Groups
16 groups
Parking Lots
8
Entrances & Exits
16
Watchlists
Total Faces
100,000
Face Watch List
50
Faces Per Watch List
50,000
Vehicle Watch Lists
16
Vehicles per Vehicle Watch List
20,000
People Counting
Total Groups
8
Rules Per Group
20
Access Control
Door Access Rules For People
10,000 people (1 password, 2 face images, 3 fingerprints & 5 cards for each person)
Zones
256
Door Access rules
200
Public Passwords
1,500
Visitor
Appointments in Progress
10,000
Notification Center
Notification Center Message
1,000
Data Storage
Features
Face Recognition / ANPR / Metadata / People Counting / Heat Map / Video Intercom / Access Controller / Operation Logs / Service Logs (5,000,000 each)
Warranty (Years)
4
Register for Member Pricing



Download documents from the following links:

NVR-SMC1 & NVR-GSMC2 Comparison (PDF)

NVR-SMC1 & NVR-GSMC2 FAQ (PDF)

Register for Member Pricing

VIP Vision NVR-GSMC2 User Manual (PDF)

NVR-GSMC2 Datasheet (PDF)
