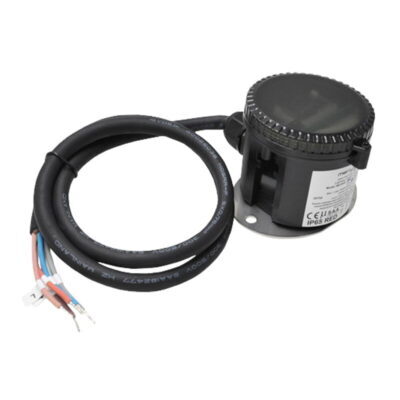

High Bay Intelligent Motion Activated Switch
Sale!
High Bay Intelligent Motion Activated Switch
High Bay Intelligent Motion Activated Switch
High Bay Intelligent Motion Activated Switch

High Bay Intelligent Motion Activated Switch

Original price was: $105.00.Current price is: $79.37.

Register for Member Pricing

4 Interest Free Payments of $19.84
High Bay Intelligent Motion Activated Switch

SKU: ENSA-MS8 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The ENSA-MS8 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection, dimming interface and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required

Product features:
Automatically activate and deactivate lighting for energy efficiency
Suitable for high bay LED lights
Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min)
360° (ceiling) / 150° (wall) (15m height) microwave detection
Purpose built for high factory ceilings, IP65 rated for outdoor use

Register for Member Pricing

* Requires the ENSA-MSRC1 remote control to adjust sensor parameters

Specification

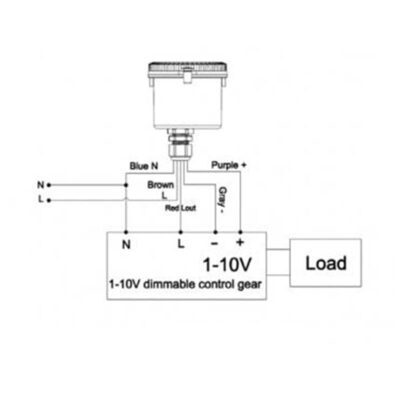

1 ~ 10V Step Dimming
< 50mA (Non-constant source) / 10%(1.4-1.6V), 20%(1.9-2.1V) / 30%(2.9-3.1V), 50% (4.9-5.1V)

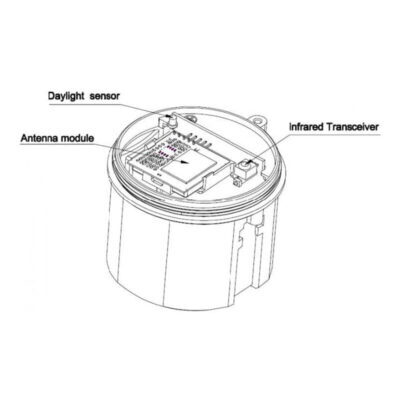

Daylight Sensing
5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (Ambient light diffusion)

Daylight Sensor
Yes

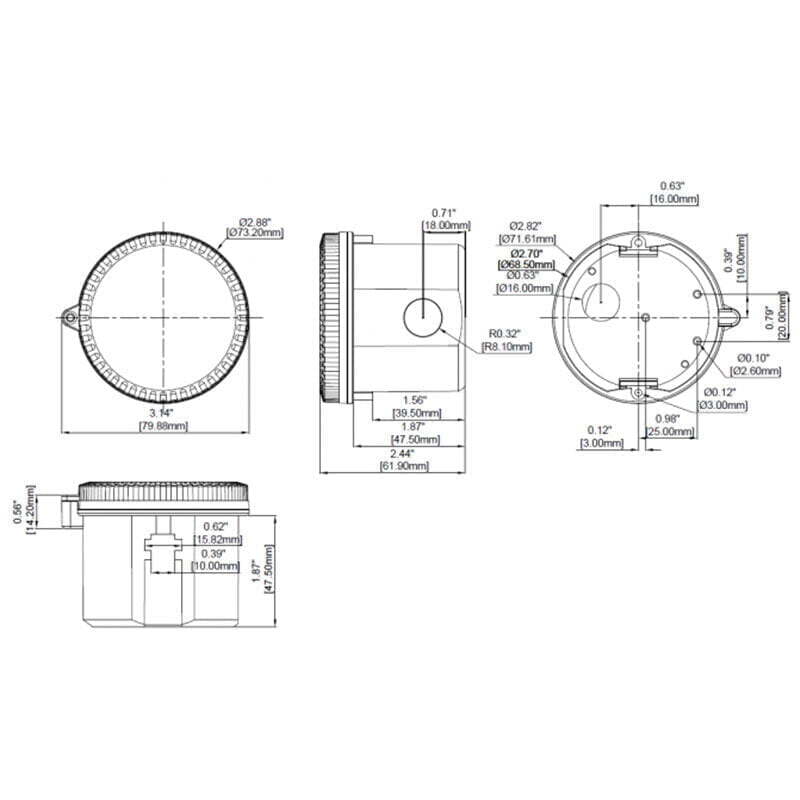

Dimensions
Ø73 x 62mm

Ingress Protection
IP65

Input Voltage
220 ~ 240VAC 50Hz

Load Capacity
120VAC: 4A; 220-277VAC: 3A

Max. Rated Load (Resistive/Inductive)
1200W / 800W

Motion Detection Adjustment
100% / 75% / 50% / 25%

Motion Detection Area
360° (Ceiling) / 150° (Wall) 15m

Motion Detection Speed
0.3 ~ 1m/s

Motion Sensor Type
Microwave

Mounting Type
Ceiling/Wall

On-timer Delay
5s ~ 30min

Operating Environment
-35 ~ 55°C

Power Consumption (Sensing Mode)
<1W

Rec. Installation Height
15m Max.

Recommended Installation Height
15m

Stand-by Dimming
50% / 30% / 20% / 10%

Stand-by Period
5s / 5min / 10min / 30min / 60min / Infinite

Warranty (years)
3



Register for Member Pricing

Download documents from the following links:

ENSA-MS8 Intelligent Sensor Switch Product Datasheet (PDF)
ENSA-MS8 Users Manual (PDF)
