Specifications
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
Port 1-24: 24 × 10M/100M/1000M Base-T (PoE)
Uplink Ports
Port 25-26: 2 x 10/100/1000M Base-T (uplink) / Port 27-28: 2 x 1000M Base-X (uplink) (combo)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mbps
Exchange Mode
Store & forward
PoE
Yes
PoE Protocol
IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
Switch Power Load
Port 1-2 ?90 W / Port 3-24 ?30 W (Total ? 375 W)
Switch Management
Layer 2+ Management
MAC Address Capacity
8K
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Network Time Protocol
Support
Spanning Tree Protocol
STP; RSTP
Port Aggregation
Link Aggregation
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP client, DHCP server, DHCP snooping
Extend Mode
Support up to 250m at 10Mbps
Flow Control
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Security Features
User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection
System Maintenance
Configuration file upload/download, Supports updated packet upload, System log
Quality of Service
8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP
Network Management
Web (http and https protocol); CLI; SNMP V1/ V2C/V3
PoE Management
Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support.
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV

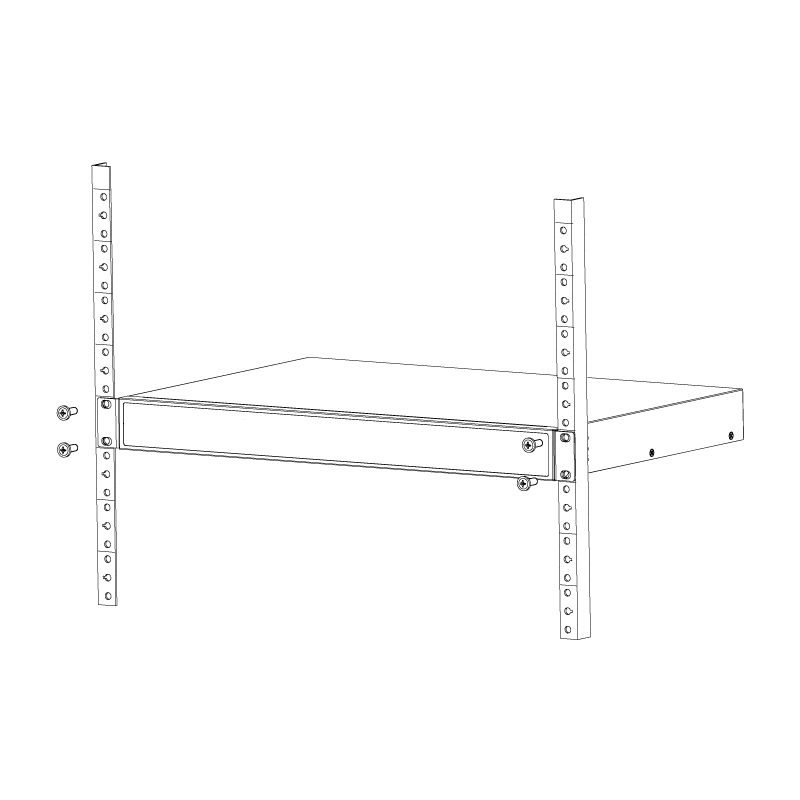

Mounting Options
Desktop Mount, Rack Mount
Operating Environment
Operating Temperature –10 °C to +55 °C
Weight
2.66kg

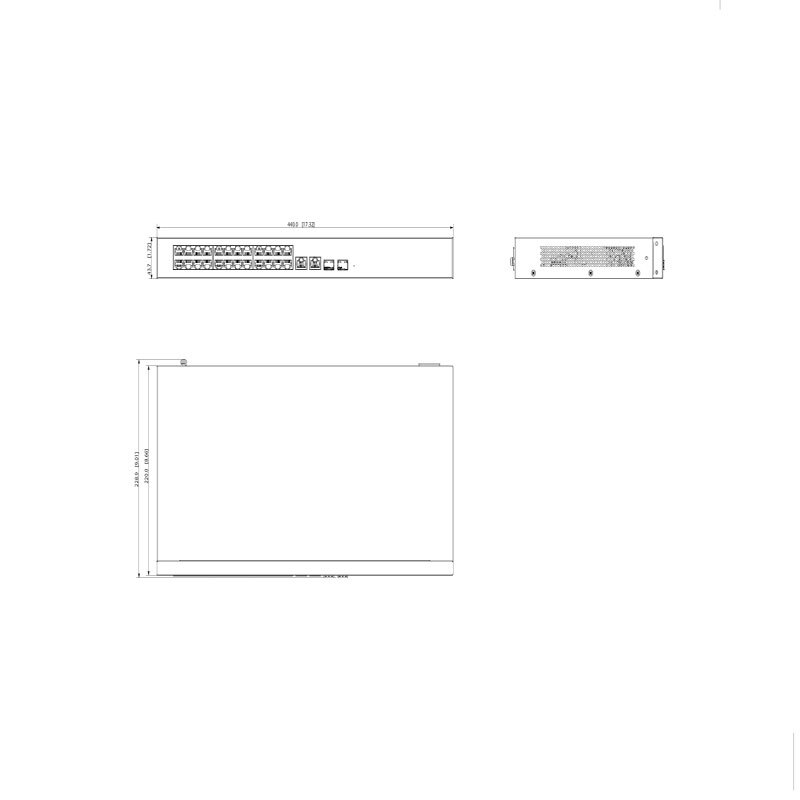

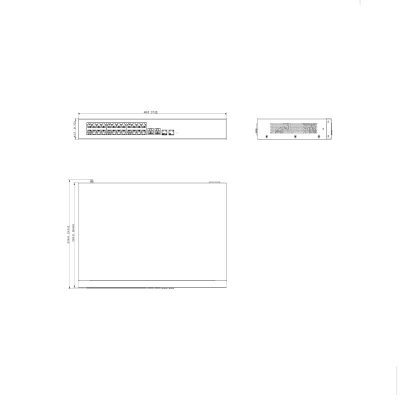

Dimensions
440 mm × 220 mm × 44 mm
Warranty (Years)
4

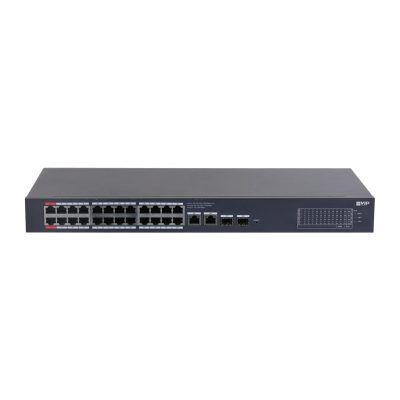

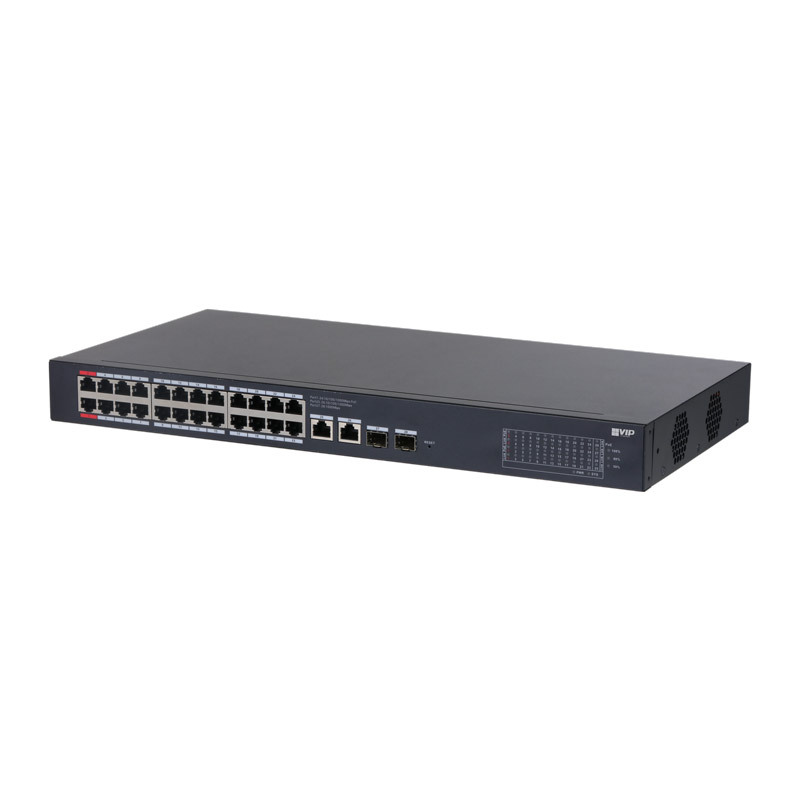

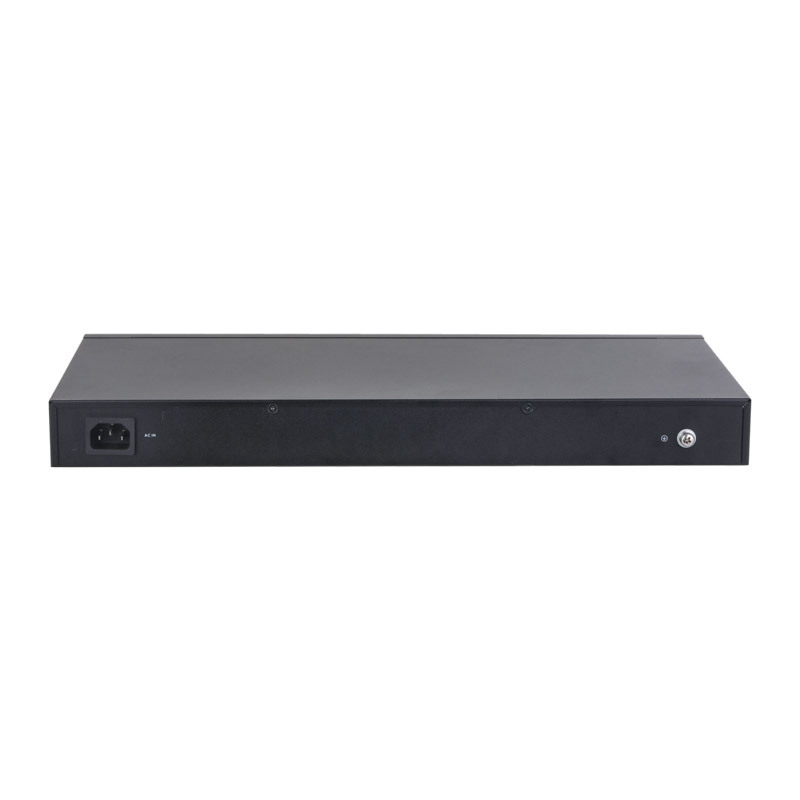

24-port Cloud Managed Gigabit Hi-PoE Ethernet Switch – VSPOE-SWB24C
$613.47Original price was: $613.47.$538.01Current price is: $538.01.24-port Cloud Managed Gigabit Hi-PoE Ethernet Switch – Networking and Communication > Network Switches
Description
The VSPOE-SWB24C a cloud managed gigabit PoE switch with 24 ports. Designed for high-powered PoE devices, this switch offers flexible, high-speed networking and can be monitored in real-time via a phone. Additionally, the switch offers network management functions, supporting CLI and various types of web and network management software based on SNMP.
Product features:
Specifications
Please download documents from the following links:
VIP Vision VSPOE-SWA Series Brochure (PDF)
hbspt.forms.create({ portalId: "6765794", formId: "5050b471-53a5-43f2-9ad0-9eff3d4ace4a" });
Related products
4-port Unmanaged Fast Hi-PoE Ethernet Switch
$155.73Original price was: $155.73.$119.83Current price is: $119.83.24 Port Unmanaged Gigabit Ethernet Switch

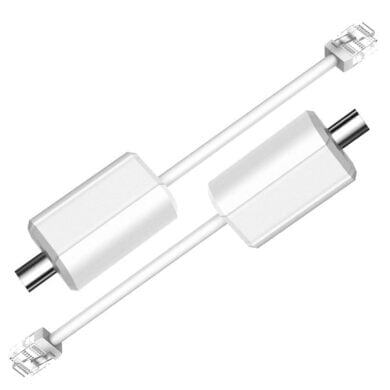

$215.00Original price was: $215.00.$169.15Current price is: $169.15.Ethernet over Coax Tx / Rx bundle
