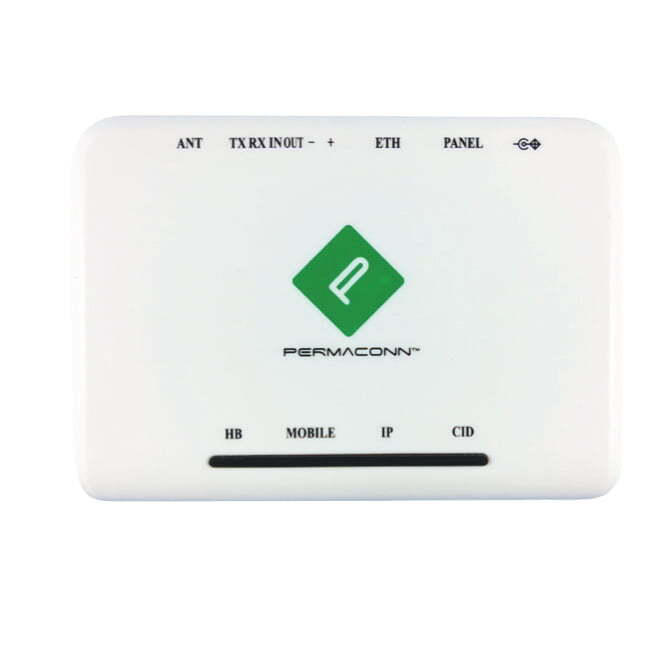

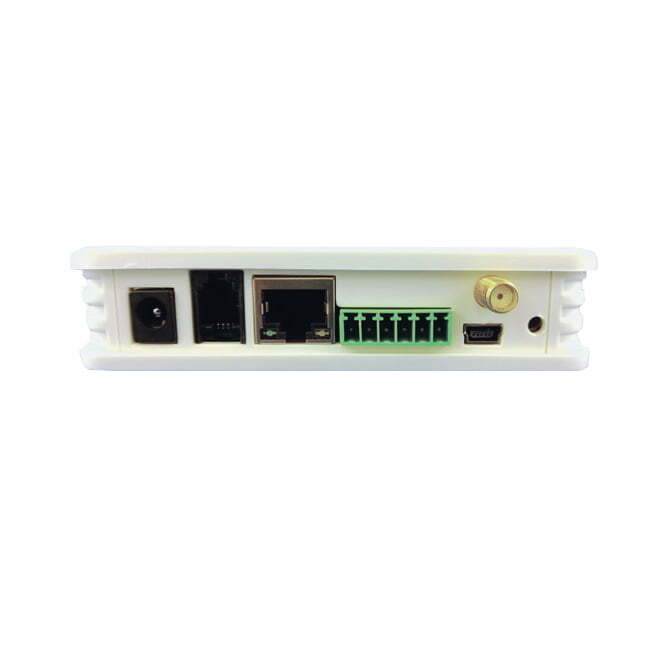

Permaconn 4G PM45 Alarm Communicator
Sale!
Permaconn 4G PM45 Alarm Communicator

Permaconn 4G PM45 Alarm Communicator

Original price was: $259.00.Current price is: $218.89.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $54.72
Permaconn 4G PM45 Alarm Communicator

SKU: PM45-4G Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The PM45-4G is a versatile alarm communicator that reports on 4G, GPRS and IP to the Central Station. This unit can interface with a range of alarm panels using Contact ID. Primary alarm path is IP, followed by 4G/GPRS in the event of a wired ethernet failure. If no IP connection exists the communicators will report on GPRS or 4G only.

Additional Features:
• Small size – Fits inside alarm panel enclosure and suitable for ATM & M2M applications
• Secure VPN within Optus & Telstra networks – Dedicated for Permaconn events only
• AES128 encryption for alarm data – Secure transmissions over the public internet
• High speed RS232 Interface – Future development
• Various diagnostic LEDs – Easy installation
• Activate, commission and diagnose using Atlas – Seamless installation process
• Three (3) dedicated paths of communication – Uptime in excess of 99.9%
• Internal watchdog reset function – No unnecessary service call-outs
• Monitors & reports dialler interface lead status – Panel dialler to Permaconn interface secure
• AS/NZ2201.5:2008 compliance

* Optional antenna available (sold separately).

Specification

Register for Member Pricing

Antenna
Triple band 3G & Triple band 4G

Approvals
EN 55022:2006/A1:2007, AS/CA S042.1-2011, AS/CA S042.4-2011 AS/NZS 60950.1-2011, AES2201.5:2008, EN 62311:2008, EN 301489-1 EN 301 489-24, EN 301 908-1, EN60950-1

Auxiliary Input
3 x 24Hr input – state change detected every second. / EOL 3.3K

Auxiliary Output
3 x Open Collector output @ 50mA (max) / Function control using Atlas web portal and/or ‘Pocket Secure’

Communication Protocol
Ethernet (10/100BASE-T)

Data Security
AES Encryption

Dimensions
110mm (h) x 25mm (d) x 80mm (w)

Housing Material
ABS plastic – Green

Modem
Quectel EC21

Network Protocol
DHCP or Static IP

Operating Environment
0°- 50°C @15% to 85% humidity (non-condensing)

Power
8–15V DC. Terminal (must power from appoved supply)

Power Consumption
Standby: 0.08A @13.8V DC / Transmitting: 0.19A @13.8V DC

Serial Port
High Speed RS232 interface

Static IP Network Configuration
Ethernet interface using ‘IpSetup’ program / Atlas web portal using mobile connection

Supported Modulation
BELL-103, ITU-V21/V22/V22B

Weight
120g



Documents

Download documents from the following links:

PM45-4G Datasheet (PDF)
