Single Sim 4G GSM Dialer
Sale!

Single Sim 4G GSM Dialer

Original price was: $175.00.Current price is: $145.93.

Register for Member Pricing

4 Interest Free Payments of $36.48
Single Sim 4G GSM Dialer

SKU: PM24 Categories: , , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

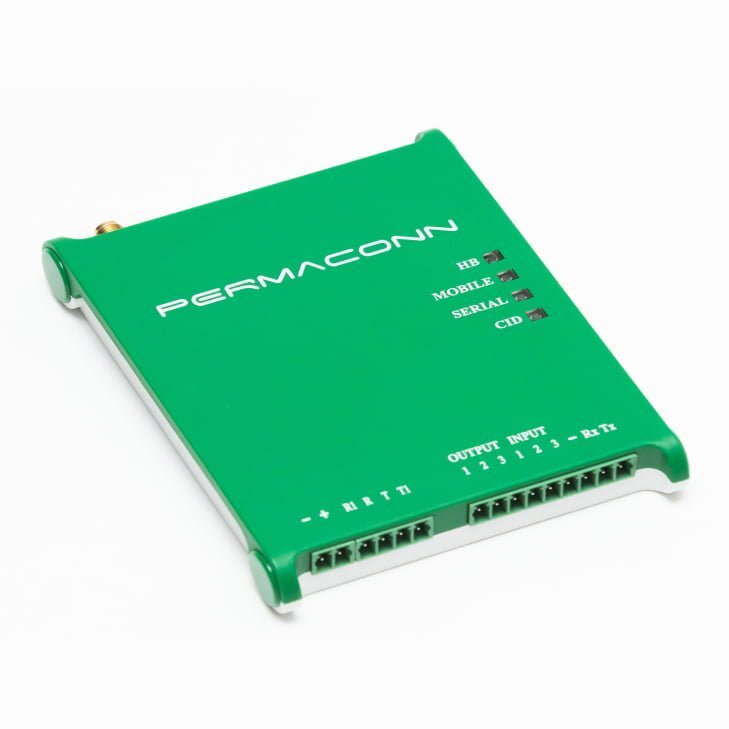

The smallest and most cost effective single SIM Communicator in Australia. This Communicator is compatible with any Contact ID enabled alarm panel.

The PM24 incorporates the latest technology available today – alarms and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.

Product features:

  • Innovative: Uses latest Cat M1 network designed for machine-to-machine comms
  • Higher Performance: Longer range and 20% greater penetration into buildings
  • Lower Power Consumption: Easily powered by the alarm panel
  • No Drilling or Screws: Attaches magnetically to alarm panel enclosure
  • Smartphone Control: Works with Pocket Secure and Atlas
  • Antenna included
Register for Member Pricing

Specification

Approvals
EN62311: 2008, AS/NZS 2772.2: 2016, AS/NZS 60950.1:2015, AS/NZS CISPR 22: 2009+A1: 2010, AS/CA S042.4: 2015, AS/NZS 60950.1:2015, EN 55032: 2015, EN 55024: 2010+A1:2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, ETSI EN 301 489-1 V 2.1.1 (2017-02) Draft ETSI EN 301 489-52 V1.1.0 (2016-11), ETSI EN 301 908-1 V11.1.1(2016-07), ETSI EN 301 908-2 V11.1.1(2016-07), ETSI EN 301 908-1 V11.1.1 (2016-07), ETSI EN 301 908-13 V11.1.1 (2016-07), EN62479: 2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Auxiliary Input
3x 24hr inputs – state change Detected every second EOL 3.3K

Auxiliary Output
3x Open Collector outputs @ 50mA (max)

Cat
M1

Data Security
AES128 Encryption

Dimensions
108mm (H) x 15.5mm (D) 80mm (W)

Function
Control using Atlas web portal and/or “Pocket Secure” App

Housing Material
ABS plastic – Green

LTE FDD
B3 / B28

Modem
Quectel BG96

Power
8–15V DC Terminal Supply

Power Consumption
Standby: 0.04A @13.8v DC, Transmitting: 0.19A @13.8v DC

Weight
80g



Register for Member Pricing

Download documents from the following links:

Permaconn PM24 Datasheet (PDF)
