9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch

Name: 9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch
Brand: VIP Vision
SKU: VSETH-SW9GF2
Price: 255.14 AUD
Availability: InStock

Original price was: $390.50.Current price is: $280.65.

(Guest - Inc. GST)

4 Interest Free Payments of $70.16

SKU: VSETH-SW9GF2 Categories: Networking and PoE, Network and PoE Switches, Optical Fibre Communication

Free Shipping for orders over $600 (AU Only)*

Brand: VIP Vision

Description

The VSETH-SW9GF2 is a 9-port Gigabit Ethernet switch designed for integrating with fibre-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fibre backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses. This model features 4 ports of PoE.

Product features:

4 x Gigabit 1000Mbps PoE ports
4 x Gigabit 1000Mbps SFP fibre ports
1 x Gigabit 1000Mbps uplink port
Total PoE power load up to 120W
Unmanaged switch for plug and play applications
DIN rail mountable for neat rackmount installations
Full metal enclosure for professional appearance
Lightning overvoltage protection up to 4kV
Electrostatic discharge protection up to 8kVW
Operates in extreme temperatures from -30°~65°C

Specification

Device Ports

4 x 10/100/1000 Base-T (PoE)

DHCP

N/A

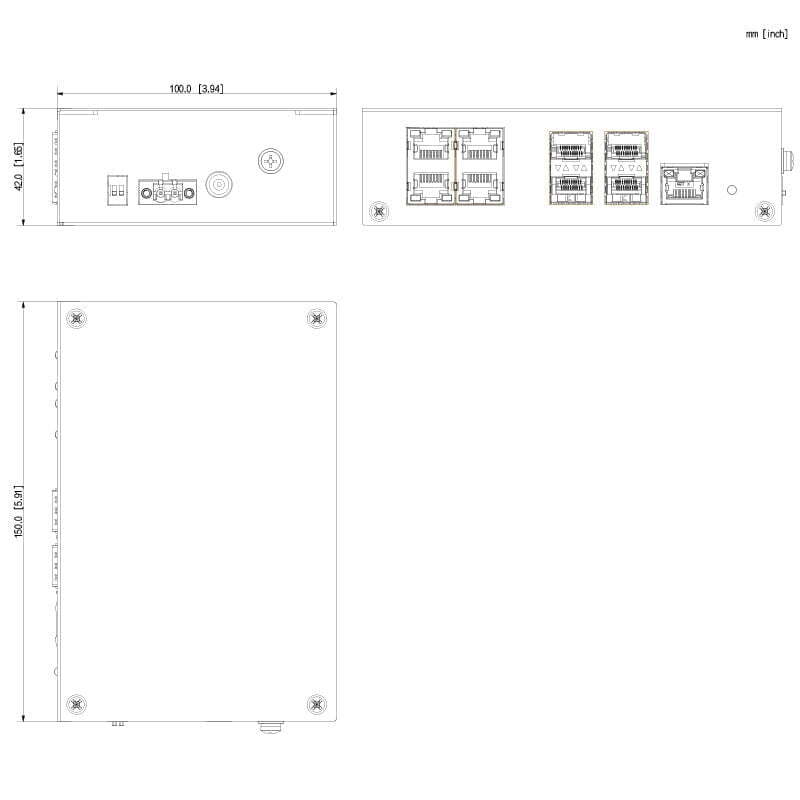

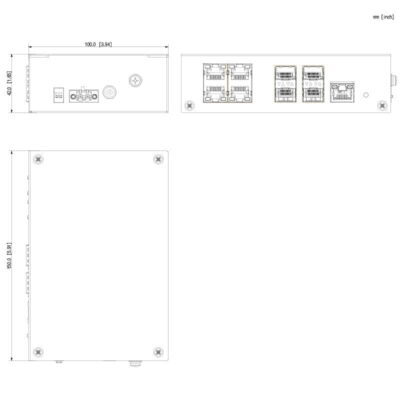

Dimensions

150 x 110 x 42mm

ESD Protection

Air Discharge: 8kV / Contact Discharge: 6kV

Exchange Mode

Store & forward

Extend Mode

N/A

Flow Control

N/A

Input Power

48 ~ 57VDC

Lightning Protection

Common Mode: 4KV / Differential Mode: 2KV

LLDP

N/A

MAC Address Capacity

Mounting Options

DIN rail

Network Management

N/A

Network Time Protocol

N/A

Operating Environment

-30°C~65°C / RH10%~90%

Packet Forwarding Rate

13.39Mpps

PoE

Yes

PoE Management

N/A

PoE Protocol

IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt

Port Aggregation

N/A

Port Mirroring

N/A

Ports

9 ports

Quality of Service

N/A

Security Features

N/A

Spanning Tree Protocol

N/A

Speed

Gigabit 10/100/1000

Switch Management

Unmanaged

Switch Power Load

Port 1 ?90 W, Port 2-4 ?30W, Total ?120W

Switching Capacity

33Gbps

System Maintenance

N/A

Uplink Ports

4 x 1000 Base-X / 1 x 10/100/1000 Base-T

Virtual LAN

N/A

Weight

0.67kg

Warranty (years)

Documents

Download documents from the following links:

VIP Vision VSETH-SW9GF2 Datasheet (PDF)
