Description Convert RJ45 network connections to and from coaxial cable with the VSEOCPAIRV2. With these ePoE converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
Product features:

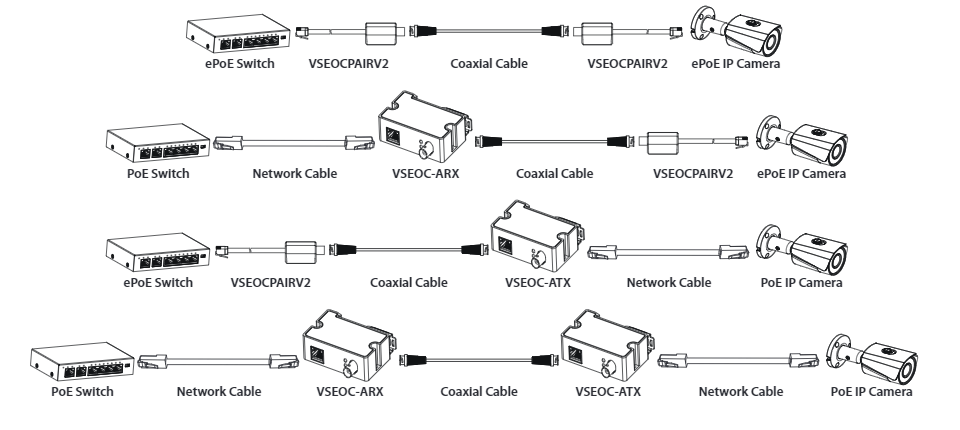

1 x RJ45 10/100Mbps port, 1 x BNC port Supports IEEE802.3 & IEEE802.3u standards Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps Supports MDI/MDIX self-adaption Supports long range power supply transmission via coaxial cable Two converters included Extend power from ePoE switch to ePoE camera
Specifications Dimensions 56mm x 27mm x 21mm Network Protocol IEEE802.3, IEEE802.3u Operating Environment -40°C-60°C / <95% RH PoE Protocol Based on the power input from the ePoE switch Ports 1 x 10/100 Mbps Base-TX, 1 x BNC Power Consumption <1W Surge Protection Common Mode: 6KV / Differential Mode: 2KV Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps Weight 28g Warranty (Years) 4
Shipping Weight and Dimensions includes product packaging Width 130 mm Height 72 mm Depth 80 mm Weight 0.10 kg
Brochure Download the brochure from the link below.
Brochure
Ask a Question Please ask questions you may have about this product or your project in the form below
Note: It looks like JavaScript is disabled in your browser. Some elements of this form may require JavaScript to work properly. If you have trouble submitting the form, try enabling JavaScript momentarily and resubmit. JavaScript settings are usually found in Browser Settings or Browser Developer menu.

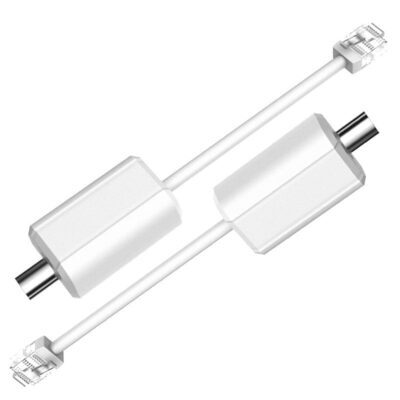

Ethernet over Coax Converter Pair
$29.00Original price was: $29.00.$22.37Current price is: $22.37.Extend ePoE over coax cable for additional distance or to reclaim old cable
Requires ePoE switch. Will not work with standard or passive PoE
Description
Convert RJ45 network connections to and from coaxial cable with the VSEOCPAIRV2. With these ePoE converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
Product features:
For standard PoE over coax please consider this item:
Ethernet over Coax extender bundle
Specifications
Shipping Weight and Dimensions includes product packaging
Brochure
Download the brochure from the link below.
Brochure
Ask a Question
Please ask questions you may have about this product or your project in the form below
