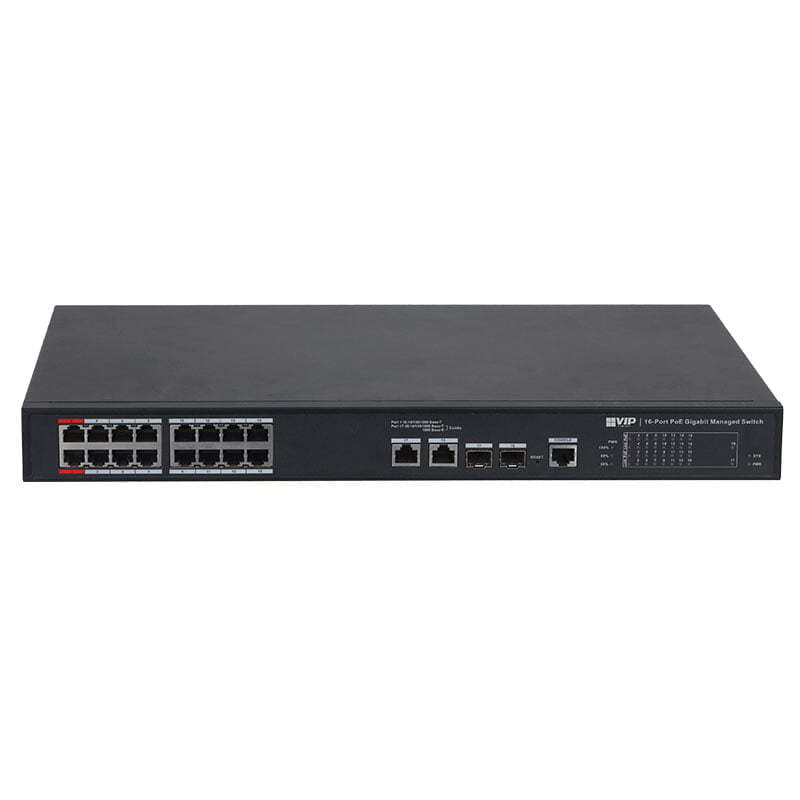

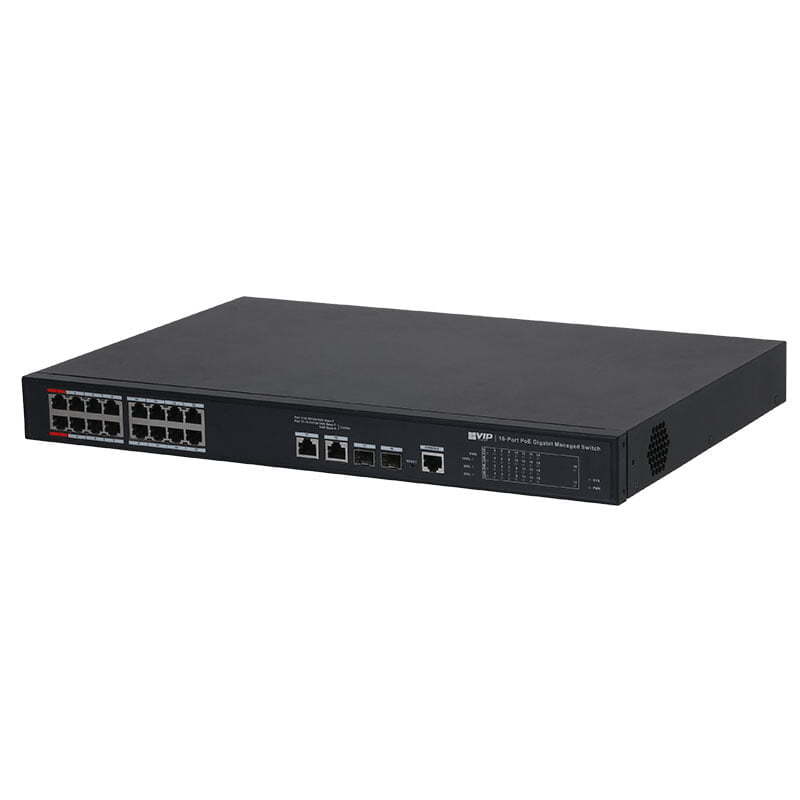

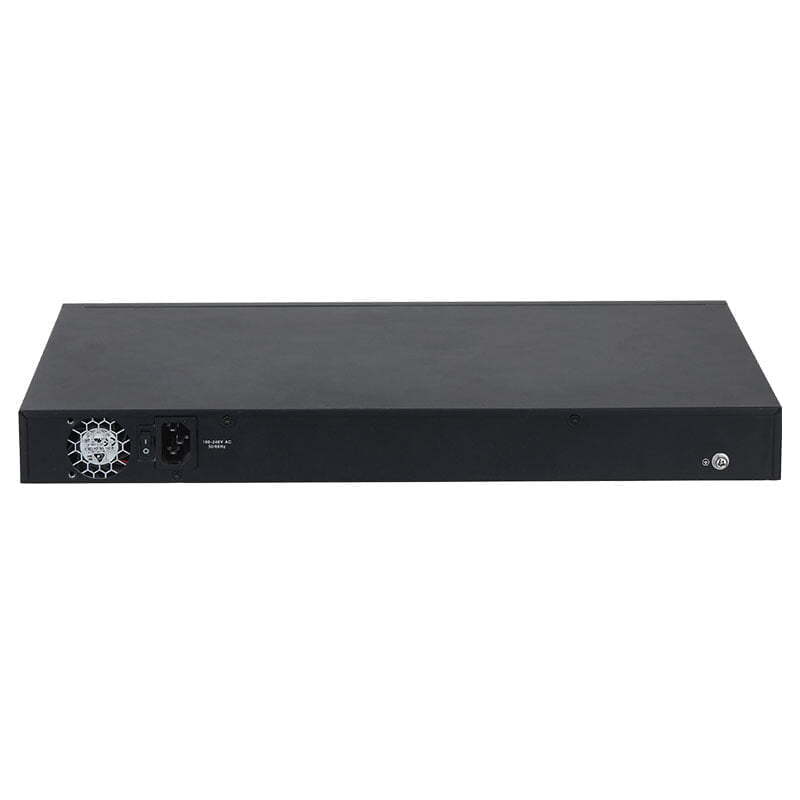

The VSPOE-SWB16G3 is a rackmount, gigabit Hi-PoE switch in 16 ports. This switch is a flexible, high speed networking solutions, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features
Product features:
14 x PoE+ 1000Mbps device ports 2 x Hi-PoE 1000Mbps device ports 2 x 1000Mbps Base-T uplink ports 2 x 1000Mbps Base-X (SFP) uplink combo ports Total PoE power load up to 240W L2 management for network transmission configuration Rackmount tabs for 19” cabinet installation Professional appearance full metal enclosure Lightning overvoltage protection up to 4kV
Specification Device Ports
Port 1-16: 16 x 10/100/1000M Base-T (PoE)
DHCP
DHCP Client / DHCP Server / DHCP Snooping
Dimensions
440 x 300 x 44mm
Exchange Mode
Store & forward
Extend Mode
N/A
Flow Control
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
LLDP
Support
MAC Address Capacity
8K
Mounting Options
Rackmount Tabs (1RU)
Network Management
Web (http and https protocol), iLinksView, CLI; SNMP V1/V2C/V3
Network Time Protocol
Support
Operating Environment
-10° ~ 55°C / RH90% (max)
Packet Forwarding Rate
26.78Mbps
PoE
Yes
PoE Management
Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support
PoE Protocol
IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
Port Aggregation
Manual aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
Ports
16 ports
Quality of Service
8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP
Security Features
User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection
Spanning Tree Protocol
STP / RSTP / MSTP
Speed
Gigabit 10/100/1000
Switch Management
Managed
Switch Power Load
Port 1-2: ?90W / Ports 3-16: ?30W (Total: ?240W)
Switching Capacity
52Gbps
System Maintenance
Configuration file upload/download, Supports updated packet upload , System log
Uplink Ports
Port 17-18: 2 x 10/100/1000M Base-T (uplink) / Port 17-18: 2 x 1000M Base-X (uplink) (combo)
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Weight
3.75kg
16-port Managed Gigabit Hi-PoE Ethernet Switch
$750.75Original price was: $750.75.$657.78Current price is: $657.78.Description
The VSPOE-SWB16G3 is a rackmount, gigabit Hi-PoE switch in 16 ports. This switch is a flexible, high speed networking solutions, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features
Product features:
Specification
Documents
Download documents from the following links:
VIP Vision SWB-G3 Gigabit PoE Switch Datasheet (PDF)
