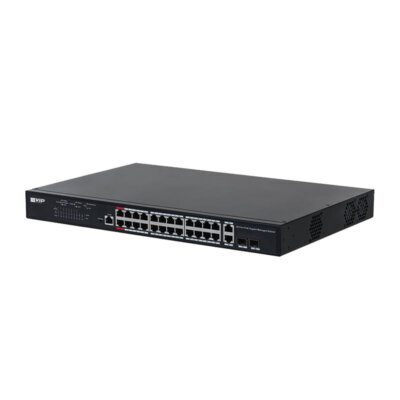

The VSPOE-SWB24G4 managed PoE switch comes with 24 gigabit PoE ports and 2 gigabit uplink combo ports. Highly reliable, it can carry a full load of 370 W. It also has a strong switching capability and optimizes transmission performance when accessing Ultra HD videos.
• 24 Ports
• Total PoE power load up to 420W
• Red port supports 90W IEEE802.3bt.
• Web management with friendly interface and easy operation
• Extend mode takes Ethernet cable runs up to 250m
• 56 Gbps switching capacity
• Managed switch for network transmission customisation
• Rackmount tabs included for easy cabinet mounting
• Professional appearance full metal enclosure
• Operating temperature range : 0 °C to +45 °C
Specifications
Switch Specification
Ports
24 ports
Speed
10/100/1000 Mbps
Device Ports
Port 1-24:24 × 10M/100M/1000M Base-T (PoE)
Uplink Ports
Port 25-26:2 × 10M/100M/1000MBase-T (uplink) (combo)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.7 Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE802.3af/ IEEE802.3at/IEEE802.3bt
Switch Power Load
PoE Power Port 1-2 ? 90 W, Port 3-24 ? 30 W, Total ? 370 W
Management
Switch Management
Managed
MAC Address Capacity
16K
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Network Time Protocol
Support
Spanning Tree Protocol
STP; RSTP; MSTP
Port Aggregation
Static link aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP client, DHCP server, DHCP snooping
Extend Mode
Up to 250m range at 10Mbps (port configurable via management interface)
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Security Features
IP+MAC binding based on port; IEEE802.1x port authentication
System Maintenance
One-key recovery / Supports updated packet upload / System log
Quality of Service
High and low priority / WRR / 802.1P / DSCP / Support priority according to protocol
Network Management
Web (http and https protocol); CLI; SNMP V1/ V2C/V3
PoE Management
PoE setting (real-time port consumption) / PoE event statistics / Green PoE
24-port Managed PoE 2.0 Gigabit Ethernet Switch
$892.32Original price was: $892.32.$781.81Current price is: $781.81.24-port Managed PoE 2.0 Gigabit Ethernet Switch – Networking and Communication > Network Switches
Description
The VSPOE-SWB24G4 managed PoE switch comes with 24 gigabit PoE ports and 2 gigabit uplink combo ports. Highly reliable, it can carry a full load of 370 W. It also has a strong switching capability and optimizes transmission performance when accessing Ultra HD videos.
• 24 Ports
• Total PoE power load up to 420W
• Red port supports 90W IEEE802.3bt.
• Web management with friendly interface and easy operation
• Extend mode takes Ethernet cable runs up to 250m
• 56 Gbps switching capacity
• Managed switch for network transmission customisation
• Rackmount tabs included for easy cabinet mounting
• Professional appearance full metal enclosure
• Operating temperature range : 0 °C to +45 °C
Specifications
Technical Documents
Download documents from the following links:
VSPOE-SWB Series Datasheet .pdf
Ask a Question
Please ask questions you may have about this product or your project in the form below
