Description The VSPOE-SWA4F is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
Product features:
3 x 10/100Mbps PoE+ device ports 1 x 10/100Mbps Hi-PoE device port 2 x 10/100Mbps uplink ports Total PoE power load up to 60W Extend mode takes Ethernet cable runs up to 250m Unmanaged switch for plug & play applications Desktop mount for home and SOHO use Professional appearance full metal enclosure
Specification Device Ports
4 x 10/100 Base-T (PoE power supply ports)
DHCP
N/A

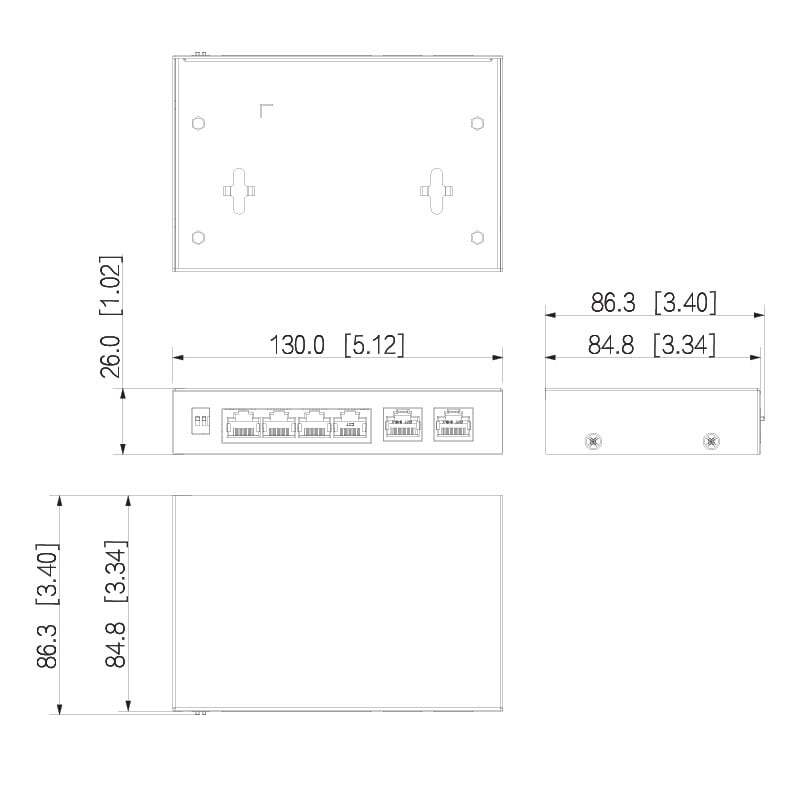

Dimensions
130 x 85 x 26mm
Exchange Mode
N/A
Extend Mode
Up to 250m range at 10Mbps (all ports via device switch)
Flow Control
N/A
Input Power
53VDC
Lightning Protection
Common Mode: 2kV / Differential Mode: 1kV
LLDP
N/A
MAC Address Capacity
2K
Mounting Options
Desktop
Network Management
N/A
Network Time Protocol
N/A
Operating Environment
-10°C~55°C / RH5%~95%
Packet Forwarding Rate
0.89Mbps
PoE
Yes
PoE Management
N/A
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Port Aggregation
N/A
Port Mirroring
N/A
Ports
4 ports
Quality of Service
N/A
Security Features
N/A
Spanning Tree Protocol
N/A
Speed
Fast 10/100
Switch Management
Unmanaged
Switch Power Load
Ports 1: ?60W / Port 2-4: ?30W (Total: ?60W)
Switching Capacity
1.8Gbps
System Maintenance
N/A
Uplink Ports
2 x 10/100 Base-T
Virtual LAN
N/A
Weight
0.30kg
Warranty (years)
4
Ask a Question Please ask questions you may have about this product or your project in the form below
Note: It looks like JavaScript is disabled in your browser. Some elements of this form may require JavaScript to work properly. If you have trouble submitting the form, try enabling JavaScript momentarily and resubmit. JavaScript settings are usually found in Browser Settings or Browser Developer menu.

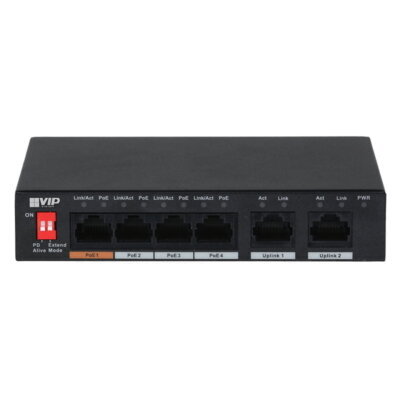

4-port Unmanaged Fast Hi-PoE Ethernet Switch
$108.90Original price was: $108.90.$77.68Current price is: $77.68.Description
The VSPOE-SWA4F is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
Product features:
Specification
Documents
Download documents from the following links:
VIP Vision VSPOE-SWA Ethernet Switch Datasheet (PDF)
Ask a Question
Please ask questions you may have about this product or your project in the form below
Related products
Ethernet over Coax Transmitter
$79.00Original price was: $79.00.$59.68Current price is: $59.68.16-port Managed Gigabit Hi-PoE Ethernet Switch
$750.75Original price was: $750.75.$657.78Current price is: $657.78.8-port Unmanaged Fast Extended PoE Ethernet Switch
$325.00Original price was: $325.00.$281.91Current price is: $281.91.Longevity 5GHz Wireless Point-to-Point Bridge (2 Links)

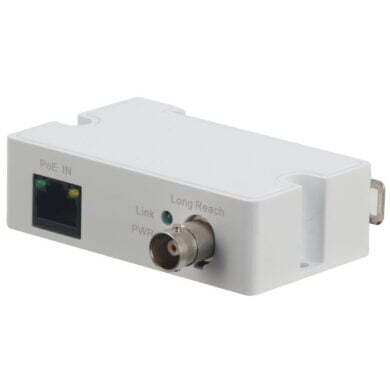

$278.85Original price was: $278.85.$244.32Current price is: $244.32.Ethernet over Coax Receiver

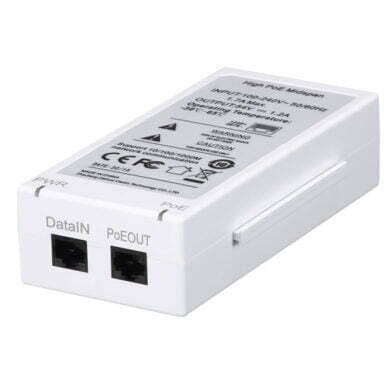

$79.00Original price was: $79.00.$59.68Current price is: $59.68.Power Over Ethernet 15.4W Injector
