Power Over Ethernet Extender
Sale!
Power Over Ethernet Midspan

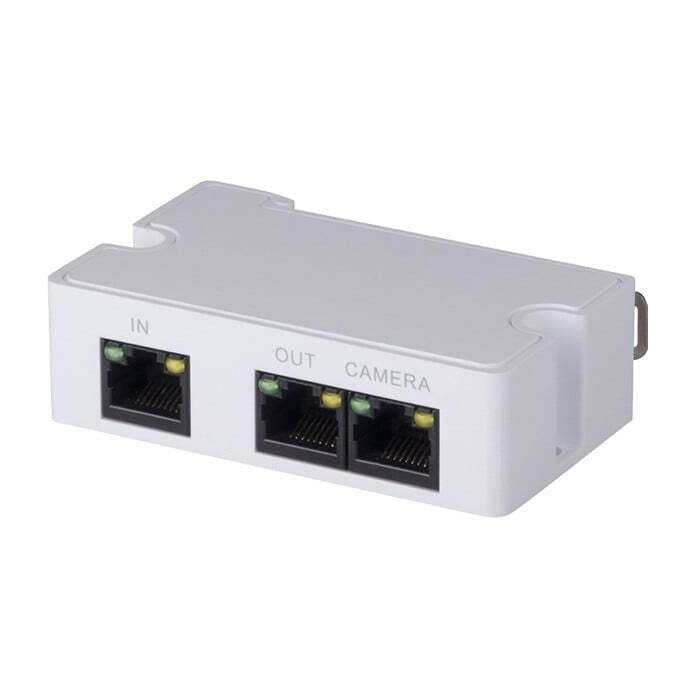

Power Over Ethernet Extender for Midspans

Original price was: $55.00.Current price is: $40.10.

Register for Member Pricing

4 Interest Free Payments of $10.03

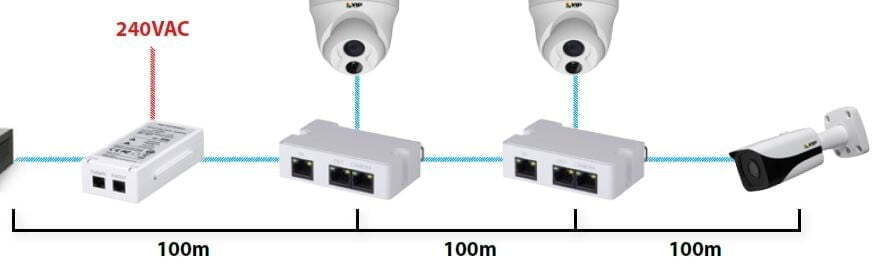

This is a PoE extender and is used with the PoE Midspan to daisy chain up to 3 PoE devices on the one network segment

SKU: VSPOE-EX Categories: , Tags: , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

• Extender acts as a passive PoE power supply cascade
• Supports Ethernet data exchange and VSPOE-MS
• IEEE 802.3af/at standard for IP camera PoE power supply
• Junction box mounting / DIN rail mounting

Requires VSPOE-MS

Download the brochure from the link below.

 Brochure

Specifications

Warranty (Years)2
Dimensions79 x 52 x 23mm
Ethernet1 x 10/100 Base-T PoE power receiving port; 1 x 10/100 Base-T PoE port for add. extender power supply; 1 x 10/100 Base-T PoE port for IP camera power supply
Operation Environment-30° ~ 65°C / 10 ~ 90% RH (max.)
Power Consumption< 3W
Transmission DistanceIntegrate with VSPOE-MS for PoE power supply cascade: – Up to 3 IP surveillance cameras (power consumption < 8W) – 300m maximum transmission distance
Weight0.06kg
