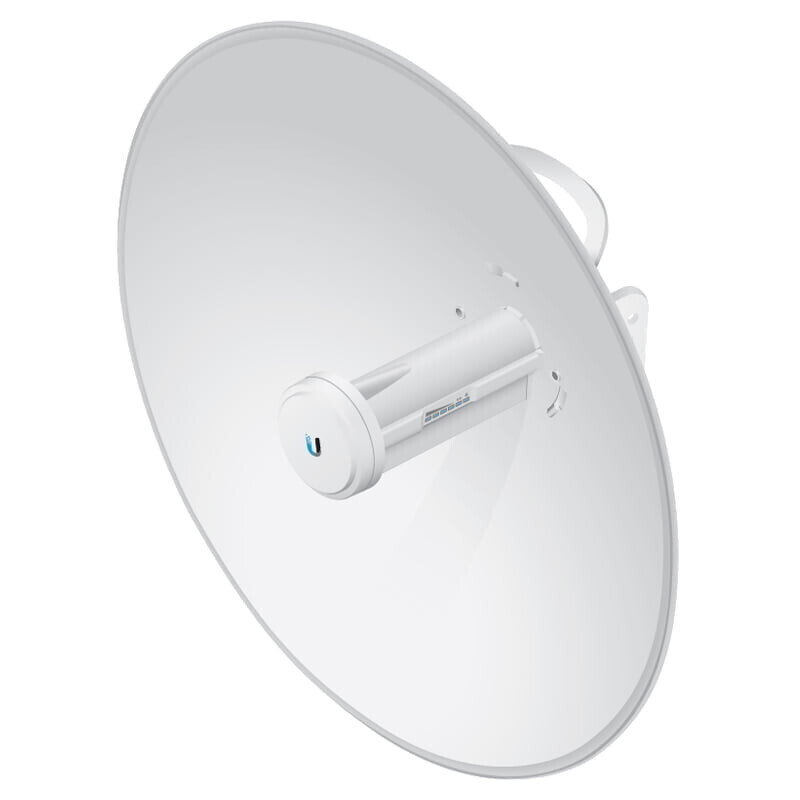

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna with Radome Shield

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna

$277.09

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $69.27
Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna with Radome Shield

SKU: WT5-UPBAC52 Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Incorporating a dish reflector design with proprietary technology, the WT5-UPBAC52 is ideal for CPE deployments requiring maximum performance. Its excellent beam directivity provides excellent performance in high-noise environments.

Product features:
• Built-in mechanical ±20° up/down tilt
• Easy removal with a detachable antenna feed
• Extensive transmission range, exceeding 25km in ideal conditions
• Breakthrough throughput supports up to 450+ Mbps
• Operates with a gain measuring 25dBi
• Frequency range reaching 5Ghz
• Galvanised steel dish reflector for corrosion resistance
• Includes protective radome for further weather protection
• Configure via smartphone over WiFi

Specification

Channel Sizes
PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz

Dimensions
420 x 420 x 230mm

Enclosure
Outdoor UV Stabilized Plastic

ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV

Gain
25 dBi

LED
Power, Ethernet, Signal strength

Management Radio
2412-2472Mhz

Max. Power Consumption
8.5W

Max. VSWR
1.5:1

Memory
64MB

Mounting
Pole-Mount (Kit Included)

Networking Interface
(1) 10/100/1000 Ethernet Port

Operating Frequency
Worldwide: 5150 – 5875 MHz

Operating Humidity
5 to 95% Noncondensing

Operating Temperature
-40 to 70° C

Polarization
Dual Linear

Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)

Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)

Processor Specs
MIPS 74Kc

RoHS Compliance
Yes

Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels

Supported Voltage Range
20 to 26VDC

Temperature Shock Test
IEC 68-2-14

UV Test
IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

Vibration Test
IEC 68-2-6

Weight
2.22kg

Wind Loading
380 N @ 200 km/h

Wind Survivability
200 km/h

Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Wireless Approvals
FCC, IC, CE

Warranty (years)
2

Register for Member Pricing

Technical Documents

Download documents from the following links:

WT5-UPBAC52 Quick Start Guide (PDF)

WT5-UPBAC52 Datasheet (PDF)
