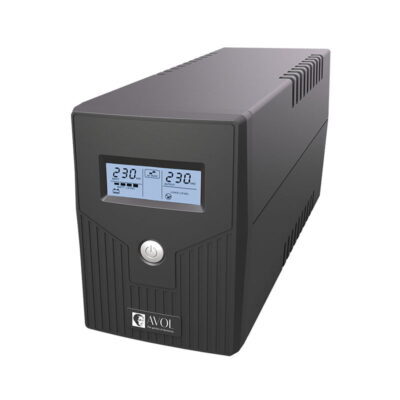

600VA Line Interactive UPS – 360W

Name: 600VA Line Interactive UPS - 360W
Brand: AVOL
SKU: UPS-C600-L
Price: 101.37 AUD
Availability: InStock

Original price was: $139.00.Current price is: $111.51.

(Guest - Inc. GST)

4 Interest Free Payments of $27.88

SKU: UPS-C600-L Category: Uninterruptible Power Supply (UPS)

Free Shipping for orders over $600 (AU Only)*

Brand: AVOL

Description

Provide short-term battery power for your security systems during power outages with the AVOL Uninterruptible Power Supply range. These UPSs protect electronics from overloads and overcharges, while also providing temporary backup power during outages. Manage the system via USB connection to any PC, Mac or Linux computer.

This UPS range features mini-LCD displays, providing real-time info on AC mode, battery mode, battery level & power load.

Features:

Line interactive UPS with simulated sinewave outputs
Backup & protection for up to two Australian 3-Pin devices
Overload and overcharge protection
Prevent hardware damage from sudden power spikes
Boost and buck AVR for voltage stabilisation
Auto-restart when power is restored after outage
Alarm alerts for battery mode, faults and low power
LCD display with power and battery information

Specification

Alarm

Overload – Tone every 0.5 seconds / Low battery – Tone every 1 second / Battery mode – Tone every 10 seconds / Battery replacement – Tone every 2 seconds / Fault – Continuous tone

Battery Type

1 x 12V/7Ah

Battery Voltage

12VDC

Capacity

600VA / 360W

Dimensions

101 x 298 x 142mm

Frequency Range

50/60Hz (auto sensing)

Frequency Range (Battery Mode)

50/60Hz ±1Hz

Indicators

AC Mode, Battery Mode, Load Level, Battery Level

Input Voltage

230VAC

Management

USB (Windows 2000 to 10, Linux, Unix, MAC)

Noise Level

<45dB

Operating Environment

0 ~ 40°C / 90%RH

Operation

Line Interactive

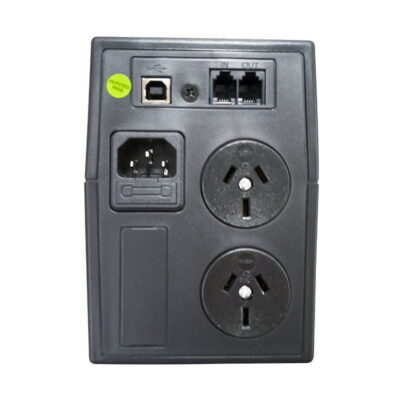

Output Sockets

2 x AUS Power Sockets

Output Voltage Range

±10%

Protection

Overload, Overcharge

Recharge Time

6-8 hours to 90% capacity (Average)

Transfer Time

2-6ms

Voltage Range

170 ~ 280VAC

Waveform (Batt. Mode)

Simulated Sinewave

Weight

4.3kg

Documents

Download documents from the following links:

AVOL UPS-C Uninterruptible Power Supplies Datasheet (PDF)
