Complete Residential IP Intercom System with Handset (Black)

The VIP Vision™ Residential IP Intercom System with Handset (Black) is an ideal single handset monitor/door-station intercom solution for residential applications. The kit includes everything necessary for a simple, single-building intercom system, with room to expand with additional door stations or intercom monitors or handsets.The handset monitor provides privacy for callers and is ideal in noisy environments where a handsfree monitor may be hard to hear.

The door station features a 2.0MP camera with a wide 160° lens, all in a stylish aluminium weather and vandal resistant body. The handset monitor is used for two-way talk with the door station, featuring live-view of the door station camera.

The VIP Vision™ Residential Intercom kit includes:
1 x Residential IP intercom Door Station
1 x 7″ Residential IP Intercom Monitor with Handset (Black)
1 x 5-port 10/100M PoE switch & PSU

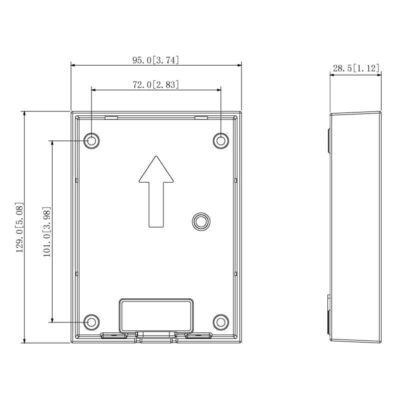

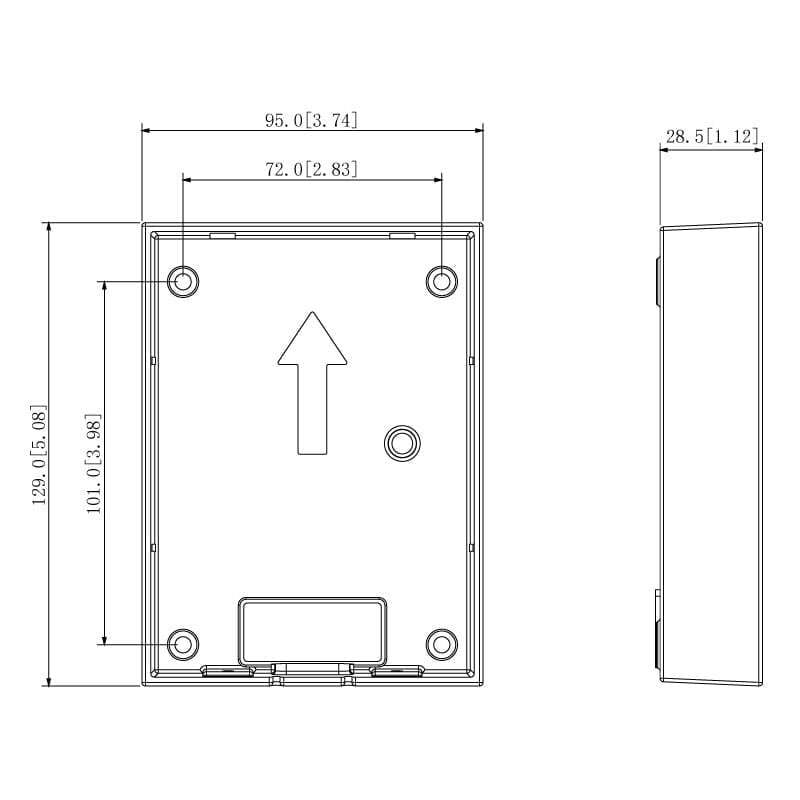

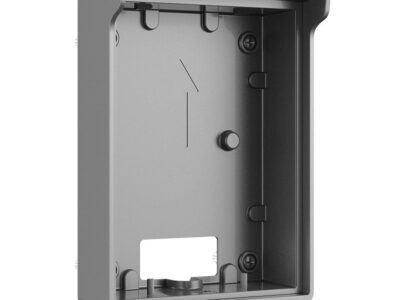

1 x Surface mount box for door station

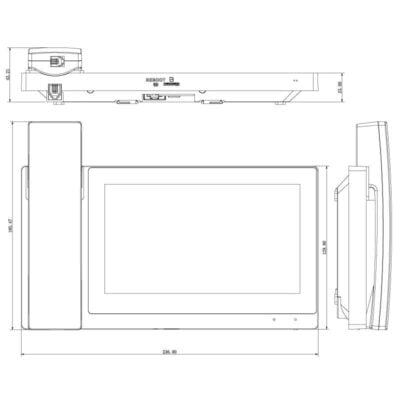

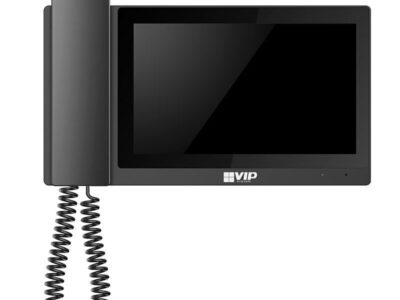

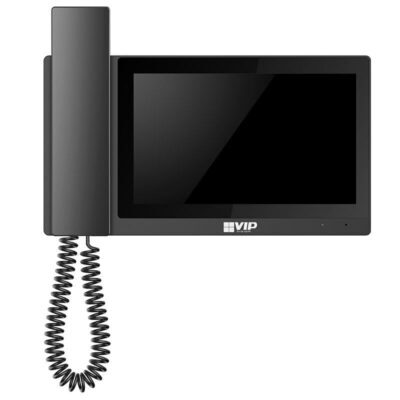

Residential IP Intercom Monitor with Handset (Black)
The INTIPMONDBH2 is a touch screen indoor monitor with handset that integrates into IP video intercom solutions. The monitor communicates with the apartment door station via handset, and features live-view of the door station camera.

Product features:
• 1024 x 600 7″ TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Door station & IP camera live viewing
• Alarm system integration
• MicroSD storage (up to 32GB)
• Wall-mounted handset design

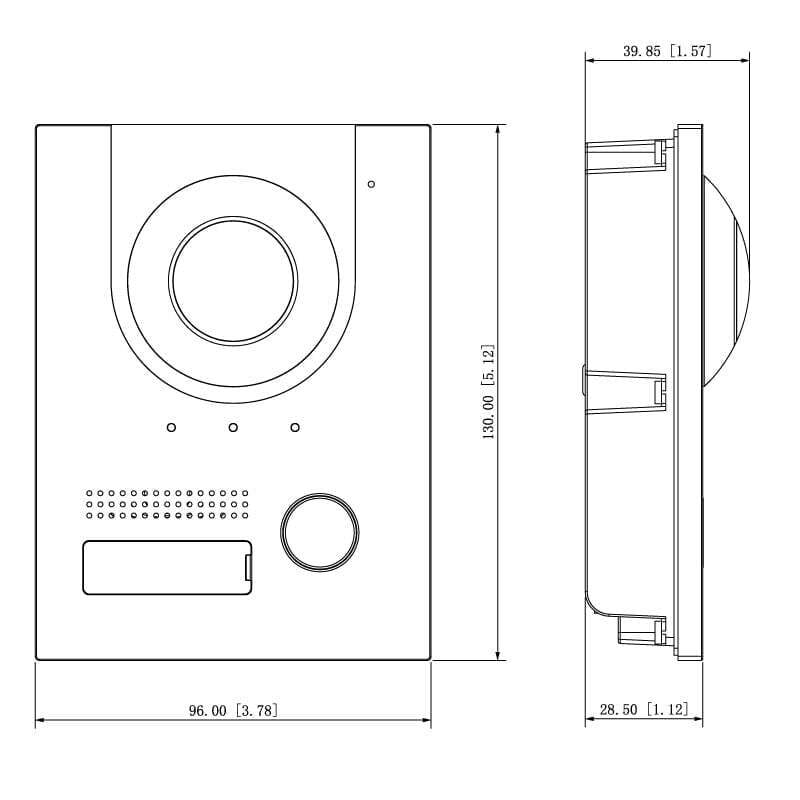

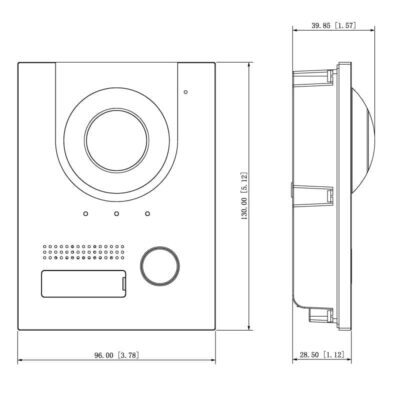

Residential IP intercom Door Station

The INTIPRDSG is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.

Product features:
• 1/2.8’’ 2.0MP 1.95mm lens camera with 160° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 12VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options

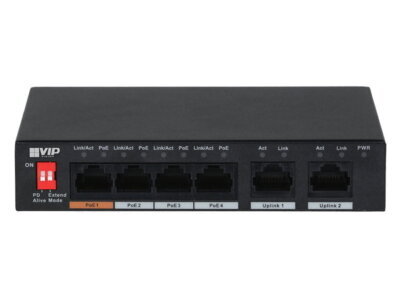

4-port Unmanaged Fast Hi-PoE Ethernet Switch

The VSPOE-SWA4F is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Product features:
• 4 x PoE+ device ports with 10/100Mbps per port
• 1 x Hi-PoE device port with 10/100Mbps per port
• Total PoE power load up to 60W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure

Specification

Door Station Model

Door Station Camera

Door Station Mount

Indoor Handset / Monitor

Monitor Model

Display Size

Monitor Colour

Monitor Mount

Accessories

Kit Components

Warranty (years)
